Connectors
NET: (1) 4-pin 5mm detachable terminal block, Cresnet slave port
Connects to Cresnet control network
LINE 1 - 6: (6) Captive screw terminals, line power inputs
LOAD 1 - 6: (6) Captive screw terminals, channel outputs
NEUT: (1) Captive screw terminal, neutral
Controls
ID CODE: (2) Rotary DIP Switches, set Cresnet ID
DIM/NON-DIM: (1) 6-position DIP switch, selects configuration for each channel
NORMAL/OVERRIDE: (1) Slide switch, OVERRIDE forces all channels to full on
LED Indicators
NET POWER: (green) Indicates DC power supplied from Cresnet network
ACTIVITY: (red) Indicates communication with Cresnet system
OUTPUTS 1 – 6: Indicate state of each channel
Environmental
Temperature: 32° to 104°F (0° to 40°C)
Humidity: 10% to 90% RH (non-condensing)
Heat Dissipation: 925 BTU/Hour at maximum load
Enclosure
Gray metal surface mount module, convection cooled
Occupies 1 module space in any CSTC cabinet
Dimensions
Height: 14.50 in (36.83 cm)
Width: 6.00 in (15.27 cm)
Depth: 7.07 in (17.94 cm)
Weight
12.0 lb (5.44 kg)
www.crestron.com
|
800.237.2041
The CNLDM-6 dimmer module provides 6 independent channels of dimming for
incandescent, magnetic low-voltage, forward phase electronic low voltage, 2-wire
fluorescent, and neon/cold cathode loads. Each channel can also be configured for
switched-only control of non-dimmable loads. Three CNLDM-6 models are
available to support 120, 220, or 277 Volt AC applications.
The CNLDM-6 occupies a single module space in any CSTC cabinet. The unit is
designed to communicate with the PAC2 or any other 2-Series control system via
the Cresnet control network. Simplified termination of all high-voltage wiring to the
module is provided via captive screw terminals.
Designed for continuous operation, each of the module’s six dimmer channels is
controlled by dual back-to-back SCR’s rated at 40 Amps, insuring the highest
degree of reliability. Lamp filament buzz and EMI/RFI emissions are minimized
through high-performance toroid inductors potted in thermally conductive epoxy
on each channel. Low-maintenance convection cooling assures quiet and
trouble-free operation.
> 6 channels of dimming
> For incandescent, magnetic low-voltage, 2-wire fluorescent,
forward-phase electronic low voltage, and neon/cold cathode
> Switch control of non-dimmable loads
> Available for 120, 220, or 277 Volt AC
> High-reliability convection-cooled design
> Toroid inductors on every channel output
> Occupies 1 module space in a CSTC lighting cabinet
> Controlled by PAC2 or PAC2M automation control system
AVAILABLE MODELS
CNLDM-6 6 Channel Dimmer Module, 120V
CNLDM-6 220V 6 Channel Dimmer Module, 220V
CNLDM-6 277V 6 Channel Dimmer Module, 277V
SPECIFICATIONS
Load Ratings
Dimmer Channels: 6
Per Channel: 16 Amps
Module Total: 96 Amps
Load Types: Incandescent, Non-Dimmable Fluorescent, 2-Wire Dimmable Fluorescent,
Neon/Cold Cathode, Magnetic Low Voltage, Forward Phase Electronic Low Voltage
Power Requirements
Line Power: 120, 220 or 277 Volts AC, 50-60Hz, single-phase, all feeds must be same phase
Cresnet Power Usage: 1 Watt (0.042 Amp @ 24 Volts DC)
Specifications subject to change without notice. Doc.4834 12/07
©2007 Crestron Electronics, Inc. All brand names, product names and trademarks are the property of their respective owners.
Crestron Electronics, Inc.
15 Volvo Drive
l
Rockleigh, NJ 07647
Tel: 800.237.2041 / 201.767.3400
l
Fax: 201.767.1903

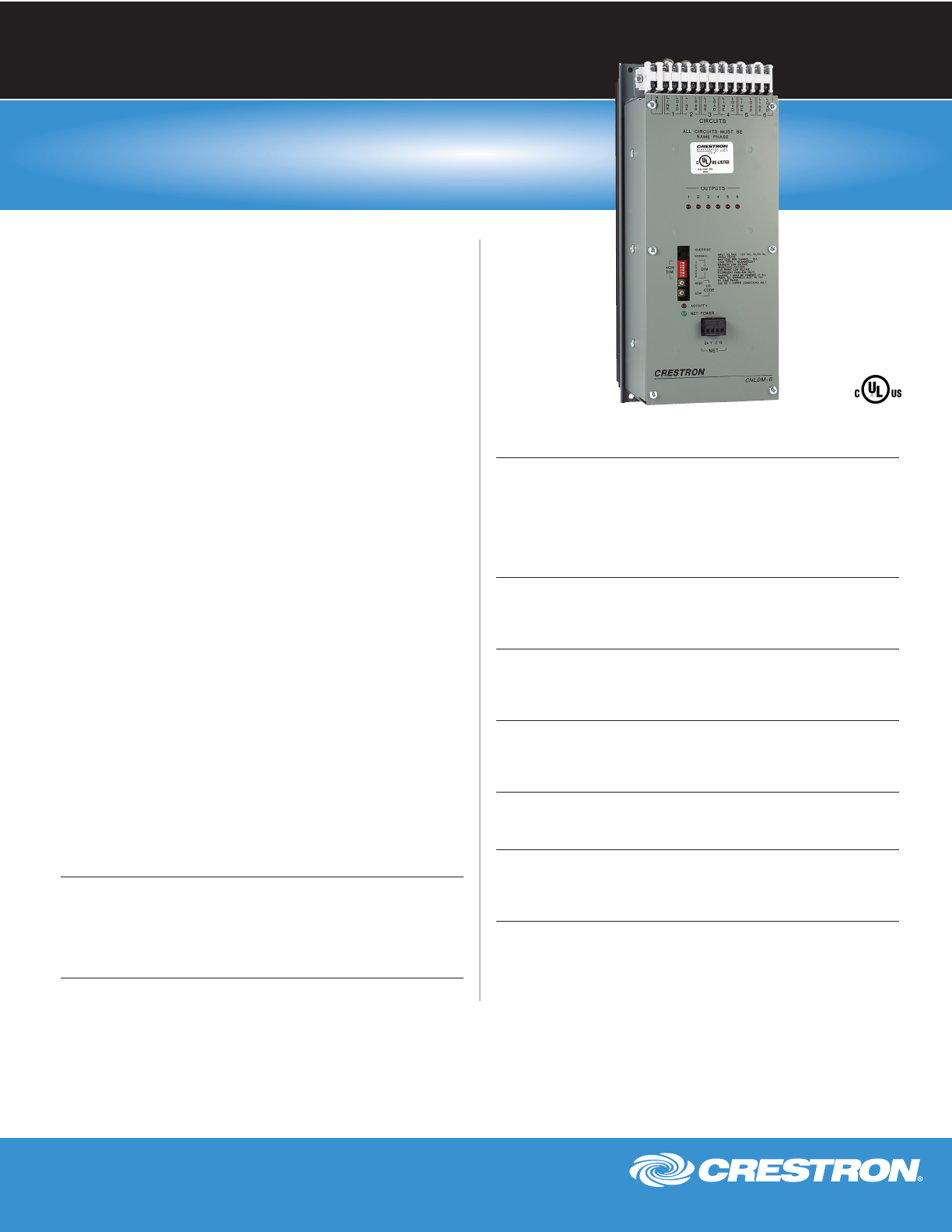

Crestron CNLDM-6
6 Channel Dimmer Module
