JDP39WW—30" Drop-In Electric Range

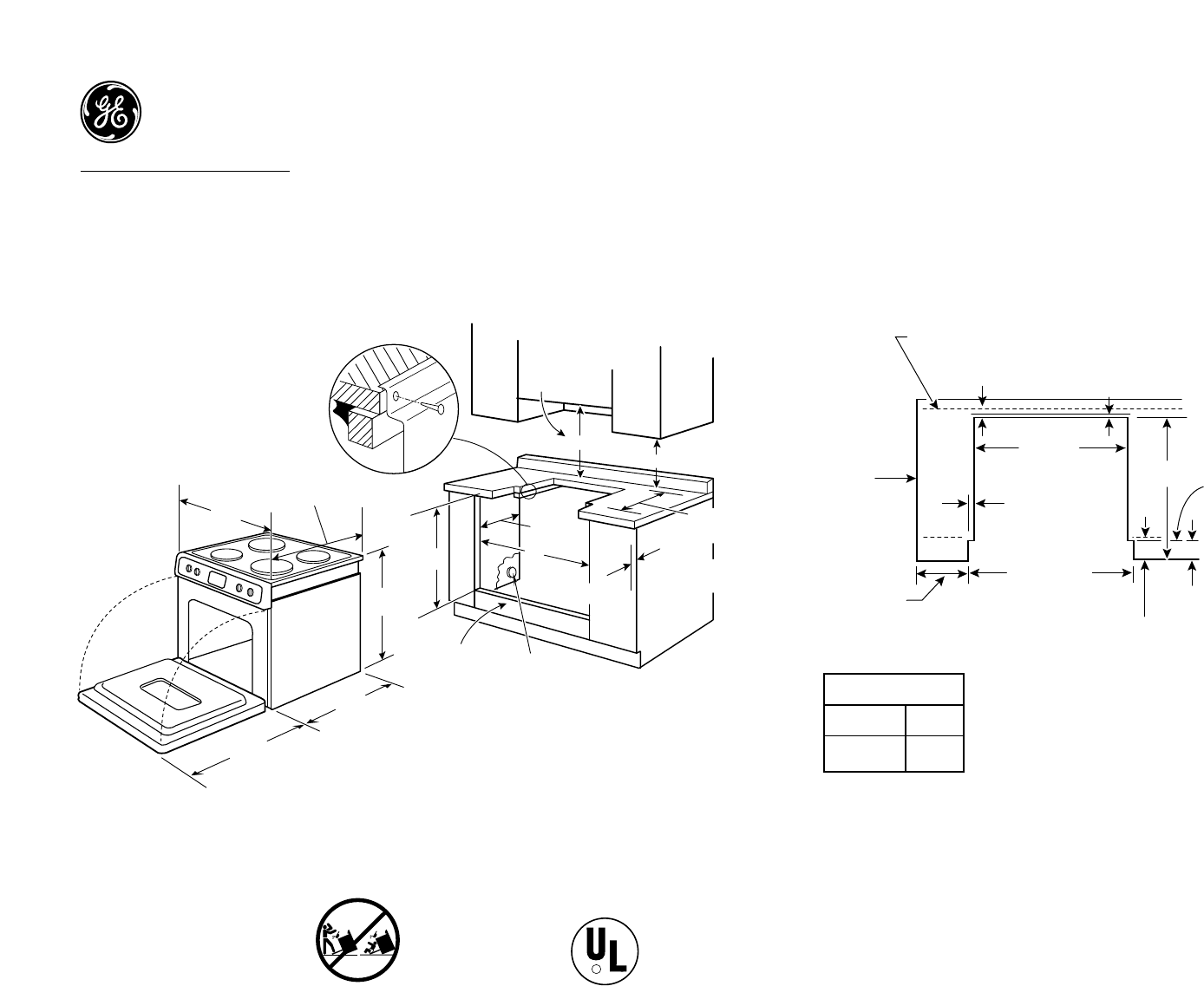

Dimensions (in inches) Countertop Cutout Top View
Important: 30" Drop-In Ranges are designed to hang from the
countertop. It does not rest on the floor. For installation alternatives,
refer to installation instructions packed with product.
Note: 30" Drop-In Electric Ranges conform to U.L. requirements for
3" minimum spacing between range and side wall above countertop.
Installation Information: Before installing, consult installation
instructions (Pub. No. 31-10129) packed with product for current
4" x 4"
(To front of
(To front edge of door
For best fit
If countertop edge is formed, this
dimension must extend to flat area
Inside back wall of cabinet
or rear wall
5/16" MIN. Flat
Note: Cabinets installed adjacent to drop-in ranges must have
an adhesion spec of at least 194°
For answers to your Monogram,
GE Profile Performance Series,
GE, Hotpoint and RCA appliance questions, call GE Answer
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
