1. Check Driver Bit to make sure it is in good con-
• If it is broken or worn out, install a new one.
2. IMPORTANT! Make sure the forward-reverse
switch is in the forward position.
3. Insert a strip of screws into the feed track. Pull
it through and insert the front into the index mod-
ule until the first screw is in driving position in the
center of the nose piece. See Figure 1.
4. Adjust the nosepiece so there is a 1/8” to 1/4”
gap between nose piece and tip of screw.
• Tighten the nosepiece screw securely. See
5. Follow instructions on the sticker. Push slider in
to adjust. Then turn knob until it locks.
6. Turn on the motor before starting to drive
• The motor can be locked to the ON position.
HITACHI SuperDrive Auto-feed Screw System
HITACHI SuperDrive tools and system components are warranted to the original purchaser at retail to be free from defects
in material and workmanship one year from the date of purchase.
The warranty shall only cover defects and not normal wear and tear, which occurs with use.
HITACHI SuperDrive assumes no responsibility whatsoever for malfunctions, failures or defects resulting from misuse,
abuse, neglect, alteration or modification. SuperDrive makes no warranty and shall not be liable as to the fitness of its tools
or fasteners for any particular uses or applications. No other warranties, representations or promises as to the quality or
performance of the SuperDrive fastening tool other than those contained herein are made.
ANY IMPLIED WARRANTY GRANTED UNDER STATE LAW, INCLUDING WARRANTIES OR MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED TO DURATION TO THE EXPRESS WARRANTY GRANTED HEREUNDER. SUPER-
DRIVE IN NO EVENT SHALL BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.
For SuperDrive 75 Series
Call 1-800-706-7337 or your sales rep. for replacement parts.

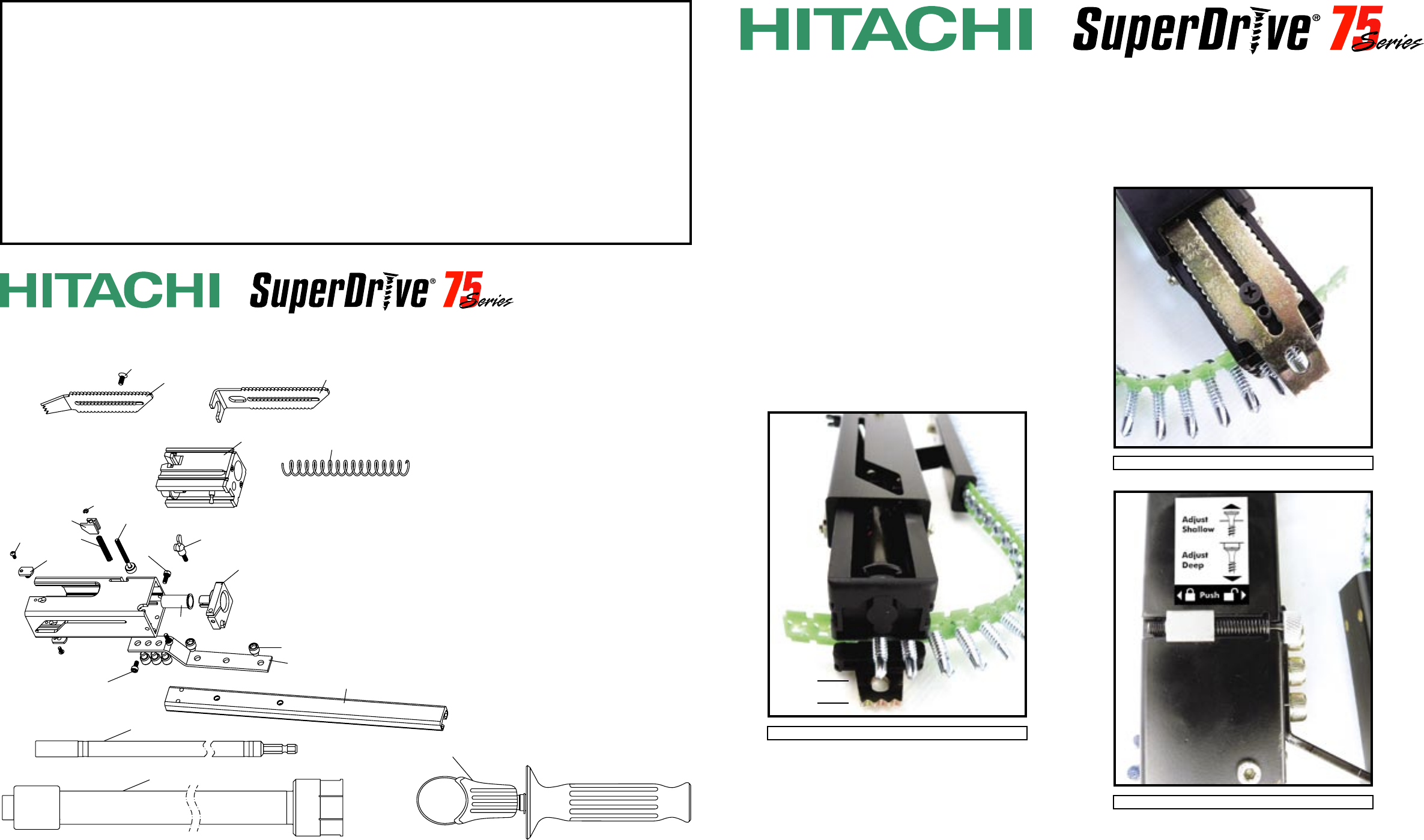

PARTS LIST - 75 SERIES TOOL QTY
725414 MODULE (GREEN DOT) 1
725415 SPRING (GREEN) 1.7mm 1
725413 NOSEPIECE FLAT HEAD SCREW
725470 NOSEPIECE SUBFLOOR AND
725471 NOSEPIECE DECK/DRYWALL 1
725425 END PLATE FOR 75 1
725424 WING SCREW FOR END PLATE 1
725423 BODY HEX SOCKET CAP SCREW
725422 BODY HEX SOCKET CAP SCREW
725416 RETAINER SCREW - M3x6 2
725416 RETAINER FOR MODULE 3mm 2
725427 BRACKET FOR FEEDTRACK 2
725428 FEED TRACK HEX SOCKET SCREW
1/4”-20 x 7.4mm 5
725426 FEED TRACK 1
725432 TUBE FOR END PLATE 1
DEPTH ADJUSTMENT PARTS QTY
725472 DEPTH CONTROL RETAINER 1
725474 DEPTH CONTROL SPRING 1
725473 DEPTH CONTROL ADJUSTMENT
725475 SNAP E RING E2 1
EXTENSION PARTS QTY
725476 EXTENSION 19” 1
729430 BIT EXTENSION 1
729431 HANDLE ASSEMBLY 1
725414 (GREEN DOT)
725416 725474 725424
