Removing the bit
Securely hold the main unit and pull out the bit by
holding the tip with your thumb (Fig. 9).
CAUTION:
Only Hitachi STANDARD ACCESSORIES phillips
bit (No. 2 × 65L; Code No. 983006) may be used. Do
not use other bits since they may come loose.
1.2 Using as an auxiliary light (Light equipped
hook)
(1) Press the switch to turn off the light.
If forgotten, the light will turn off automatically
after 15 minutes (Fig. 10).
(2) The direction of the light can be adjusted
within the range of hook positions 1 - 5 (Fig. 5).
Lighting time
AAAA manganese batteries: approx. 15
hrs.
AAAA alkali batteries: approx. 30 hrs.
CAUTION:
Do not look directly into the light.
Such actions could result in eye injury.
1.3 Replacing the batteries (Light equipped hook)
(1) Loosen the hook screw with a phillips-head
screwdriver (No. 1) (Fig. 11).
Remove the hook cover by pushing in the
direction of the arrow (Fig. 12).
(2) Remove the old batteries and insert the new
batteries. Align with the hook indications and
position the plus (+) and minus (–) terminals
correctly (Fig. 13).
(3) Align the indentation in the hook main body
with the protuberance of the hook cover,
press the hook cover in the direction opposite
to that of the arrow shown in Fig. 12 and then
tighten the screw.
Use commercially available AAAA batteries
(1.5 V).
NOTE:
Do not tighten the screw excessively. Such
action could strip the screw threads.

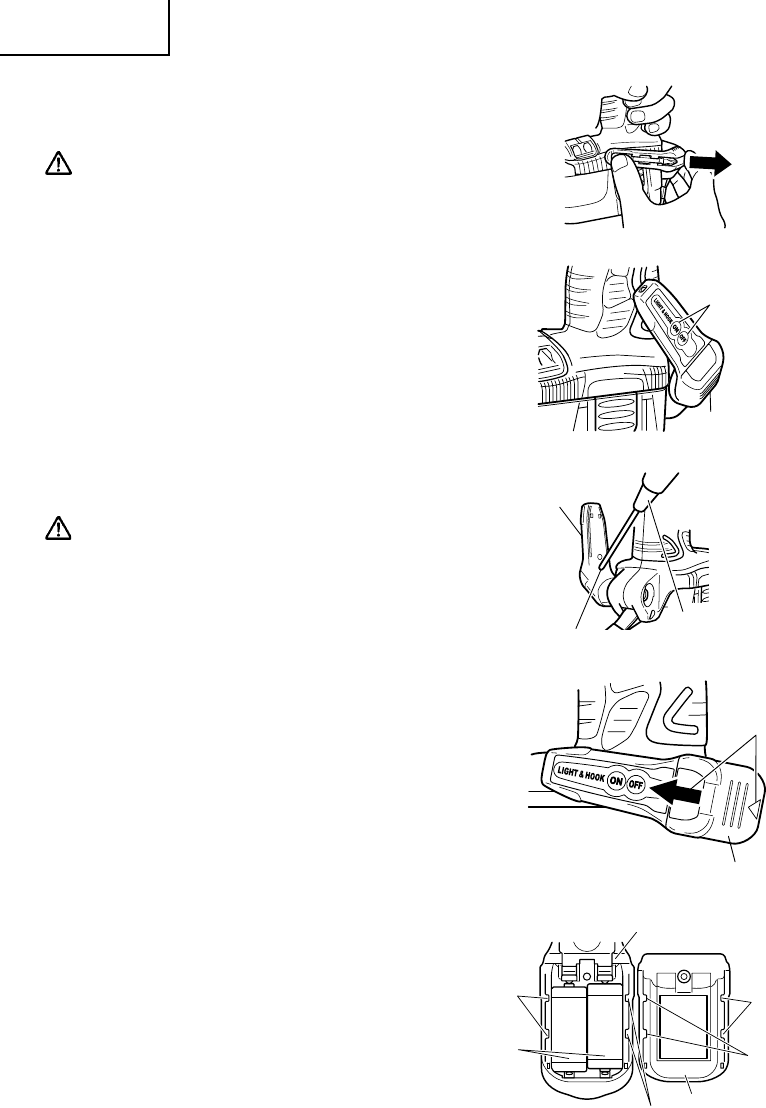

Fig. 9
Fig. 12
Fig. 10
Fig. 11
Switch
Hook
Phillips-head
screwdriver
Arrow
Hook cover
Hook main body
Protube-
rance
Inden-
tation
AAAA
batteries
Indentation
Protube-
rance
Hook cover
Screw
Hook
Fig. 13
