1. Insert the plug of battery charger into the receptacle
When the plug of battery charger has been inserted into
the receptacle, the charge status lamp will blink in red.
(At 1-second intervals)
WARNING:
Do not use the electrical cord if
damaged. Have it repaired
immediately.
2. Insert the battery to the battery charger

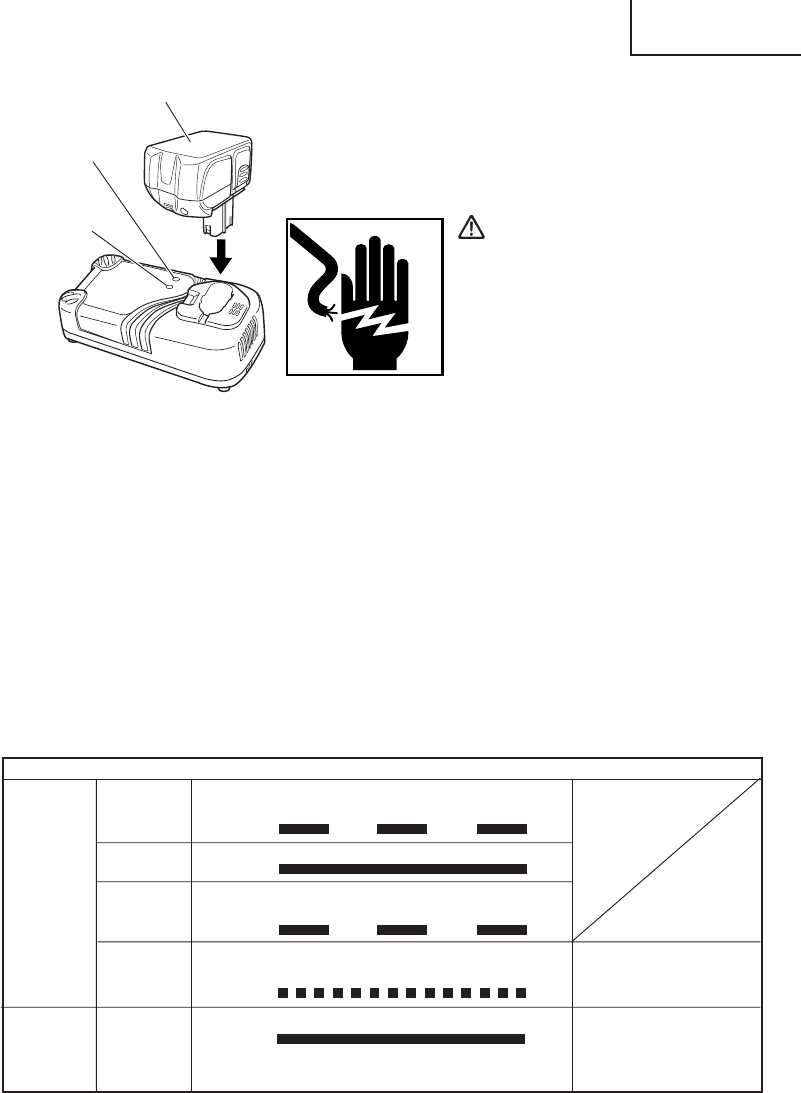

Insert the battery into the battery charger as shown in Fig. 4. Make sure it contacts the
bottom of the battery charger.
3. Charging
When the battery is connected to the battery charger, charging will commence and the
pilot lamp will light in red. (See Table 2)
NOTE: If the pilot lamp flickers in red, pull out the plug from the receptacle and check
if the battery is properly mounted.
When the battery is fully charged, the pilot lamp will bilink in red slowly. (At 1-second
intervals) (See Table 2)
Fig. 4
Battery
Overheat lamp
(green)
<UC18YRL>
Charge status
lamp (red)
Table 2 Lamp indications
Indications of the pilot lamp
NOTE: When standby for cooling battery, UC18YRL cools the overheated battery by cooling
fan.
Before
charging
While
charging
Charging
complete
Charging
impossible
Overheat
standby
Malfunction in the
battery or the charger
Battery overheated.
Unable to charge
(Charging will commence
when battery cools).
Blinks
(RED)
Lights
(RED)
Blinks
(RED)
Flickers
(RED)
Lights
(GREEN)
Lights for 0.5 seconds. Does not light
for 0.5 seconds. (off for 0.5 seconds)
Lights continuously
Lights for 0.5 seconds. Does not light
for 0.5 seconds. (off for 0.5 seconds)
Lights for 0.1 seconds. Does not light
for 0.1 seconds. (off for 0.1 seconds)
Lights continuously
Charge
status
lamp
(RED)
Overheat
lamp
(GREEN)
