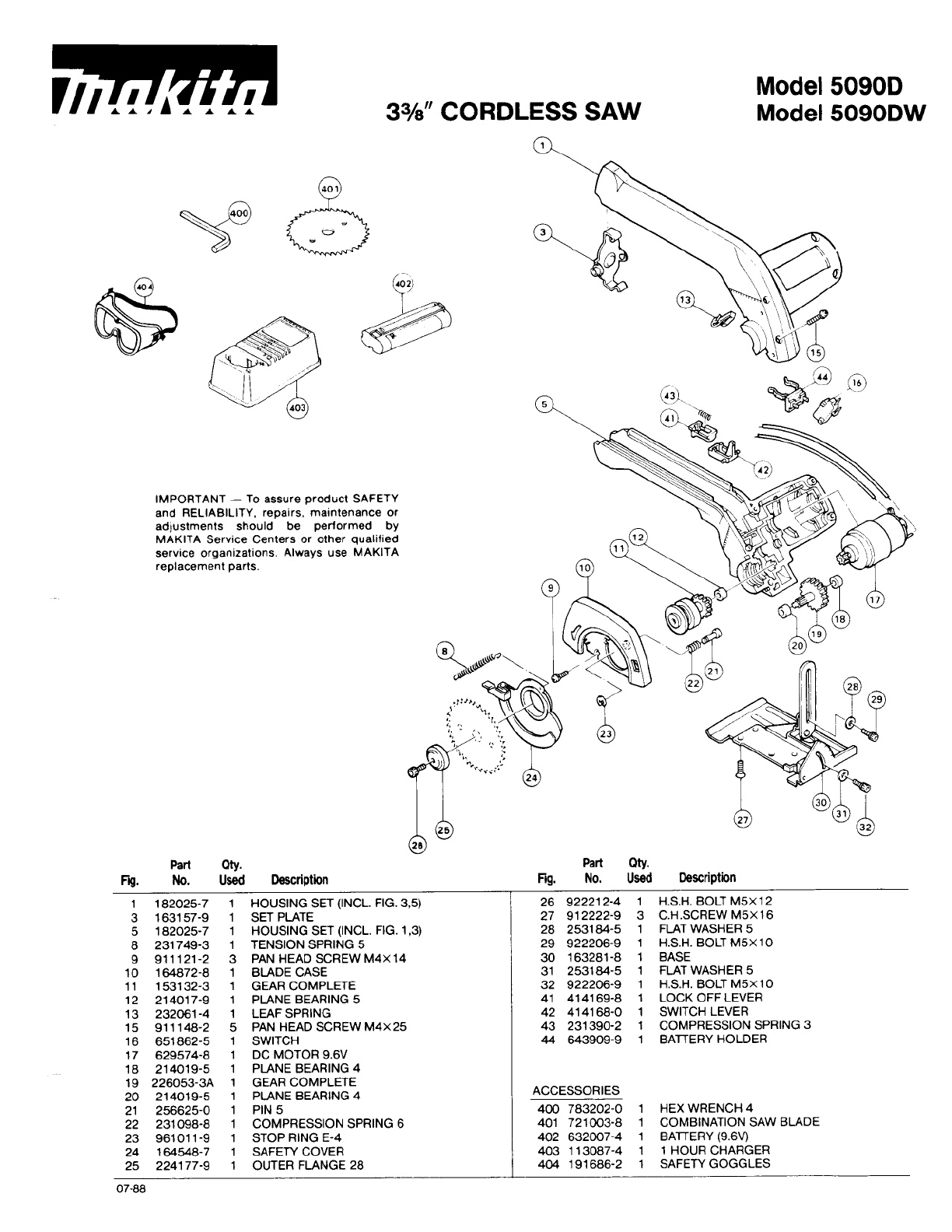

33/d1
CORDLESS
SAW
(x
1 182025-7 1 HOUSING SET (INCL. FIG. 33)
3 163157-9 1 SETPLATE
5
182025-7 1 HOUSING SET (INCL. FIG. 1,3)
8
231749-3 1 TENSION SPRING
5
9 911121-2 3 PAN HEAD SCREW M4X14
10
164872-8 1 BLADECASE
11 153132-3 1 GEAR COMPLETE
12 214017-9 1 PLANE BEARING
5
13 232061-4 1 LEAFSPRING
15 91 1 148-2
5
PAN HEAD SCREW M4X25
16 651862-5 1 SWITCH
17 629574-8 1 DC MOTOR9.6V
18 214019-5 1 PLANE BEARING 4
19 226053-3A 1 GEAR COMPLETE
20 214019-5 1 PLANE BEARING4
21 256625-0 1 PIN
5
22 231098-8 1 COMPRESSION SPRING 6
23 961011-9 1 STOP RING E-4
24 164548-7 1 SAFETYCOVER
25 224177-9 1 OUTERFLANGE28
Model
5090D
Model
5090DW
26 92221 2-4 1 H.S.H. BOLT M5X12
27 912222-9 3 C.H.SCREW M5X16
28 253184-5 1 FLATWASHER5
29 922206-9 1 H.S.H. BOLT M5X 10
30
163281-8 1 BASE
31 253184-5 1 FLATWASHER5
32 922206-9 1
H.S.H.
BOLT M5X 10
41 414169-8 1 LOCKOFFLEVER
42 414168-0 1 SWITCHLEVER
43 231 390-2 1 COMPRESSION SPRING
3
44
643909-9 1 BAlTERYHOLDER
ACCESSORIES
400 783202-0 1 HEX WRENCH 4
401 721003-8 1 COMBINATION SAW BLADE
402 632007-4 1 BAlTERY(9.6V)
403 113087-4 1 1 HOUR CHARGER
404 191686-2 1 SAFETY GOGGLES
IMPORTANT
-
To
assure product
SAFETY
and
RELIABILITY,
repairs, maintenance
or
adjustments should be performed
by
MAKITA
Service Centers
or
other qualified
service organizations.
Always
use
MAKITA
replacement parts.
