Processes
Lift-Arc
TIG (GTAW)
Stick (SMAW)
Input Power
1-Phase Power
Amperage Range 115 VAC: 5–150 A (DC TIG)
20–100 A (DC Stick)
230 VAC: 5–150 A (DC TIG)
20–150 A (DC Stick)
Max. Open-Circuit Voltage
90
Weight 13.7 lb (6.2 kg)
Light Industrial Applications
Process Piping
Dairy Industry
Food/Beverage Industry
Restaurant/Kitchen Repair
Experimental Aircraft
Shipboard Installation/Repair
Maintenance Repair
Maxstar
®
150 STL
TIG/Stick Welding
Power Source
Issued February 2008 • Index No. DC/27.1
The Power of Blue
®
.
Portable in the shop or at the job
site—at 13.7 lb the shoulder strap
allows the end user to easily move
from location to location.
Full function remote control for
precise amperage control for critical
welds on thin materials (6-pin fingertip
or foot control available.)
Fan-On-Demand
power source
cooling system operates only when
needed, reducing noise, energy use
and the amount of contaminants
pulled through the machine.
Inverter-based, DC power source has
a simple-to-use operator interface
providing only the necessary
controls in a compact machine.
Lift-Arc
start provides TIG arc starting
without the use of high frequency.
Thermal overload protection with
indicator light helps prevent machine
damage if the duty cycle is exceeded
or airflow is blocked.
Single amperage range allows
operator to accurately set amperage
on both 115 or 230 V primary power.
Quick
Specs
Miller Electric Mfg. Co.
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Web Site
www.MillerWelds.com
International Headquarters
Phone: 920-735-4505
USA FAX: 920-735-4134
Canadian FAX: 920-735-4169
International FAX: 920-735-4125
Power source is warranted for 3 years, parts and labor.
Original main power rectifiers are warranted for 5 years.
Adaptive Hot Start
for Stick arc
starts automatically increases the
output amperage at the start of a
weld should the start require it.
Prevents the electrode from
sticking and creating an inclusion.
Low OCV Stick is a simple design
that reduces the open-circuit
voltage to 12–16 V when the
welding power source is not in use.
This circuit design is now built into
the Maxstar 150 STL eliminating
the need for add-on voltage reducers.
Built-in gas solenoid eliminates the
need for bulky torch with a gas valve.
Auto-Line
provides state-of-the-art
flexibility to the end user. The Auto-
Line circuitry automatically connects
to 115–230 VAC, single-phase power
without removing the covers to relink
the power source. No longer is there
a concern if you have the correct
machine for the shop or job site.
Miller’s exclusive
multi-voltage plug
(MVP
) allows
connection to 115
or 230 V receptacles
without tools—
choose the plug that fits the receptacle
and connect it to the power cord.

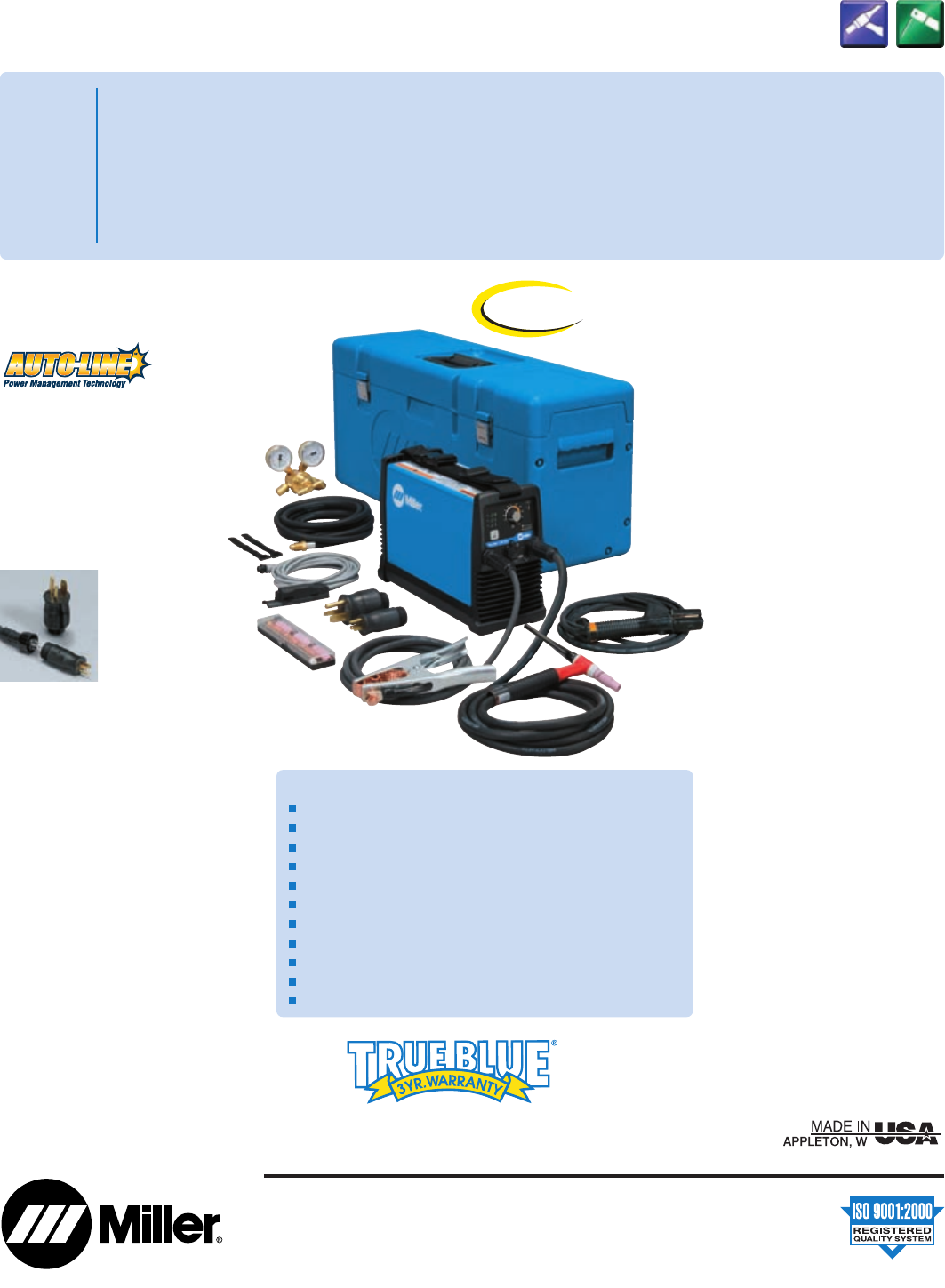

TIG/Stick Package (#907 135-01-7) comes complete with:
Maxstar 150 STL
10 ft (3 m) MVP
power cord
MVP
plugs 5-15P (115 V, 15 A) and 6-50P (230 V, 50 A)
X-CASE
provides protection in transport and storage
Remote fingertip control
Weldcraft
®
WP1712RD125 TIG torch with adapter
13 ft (4 m) Stick electrode holder with 25 mm Dinse connector
10 ft (3 m) work clamp with 25 mm Dinse connector
Smith
®
regulator with gas hose
AK-2C accessory kit
Shoulder strap
Best in class Stick arc character -
istics for those demanding jobs.
Power Factor Corrected (PFC) for
optimum performance especially
on 115 V—reduces nuisance
breaker tripping.
Improved!
New Case and
MVP Plugs!
