Milwaukee 2407-20 Cordless Drill User Manual



BULLETIN NO.
54-06-2490

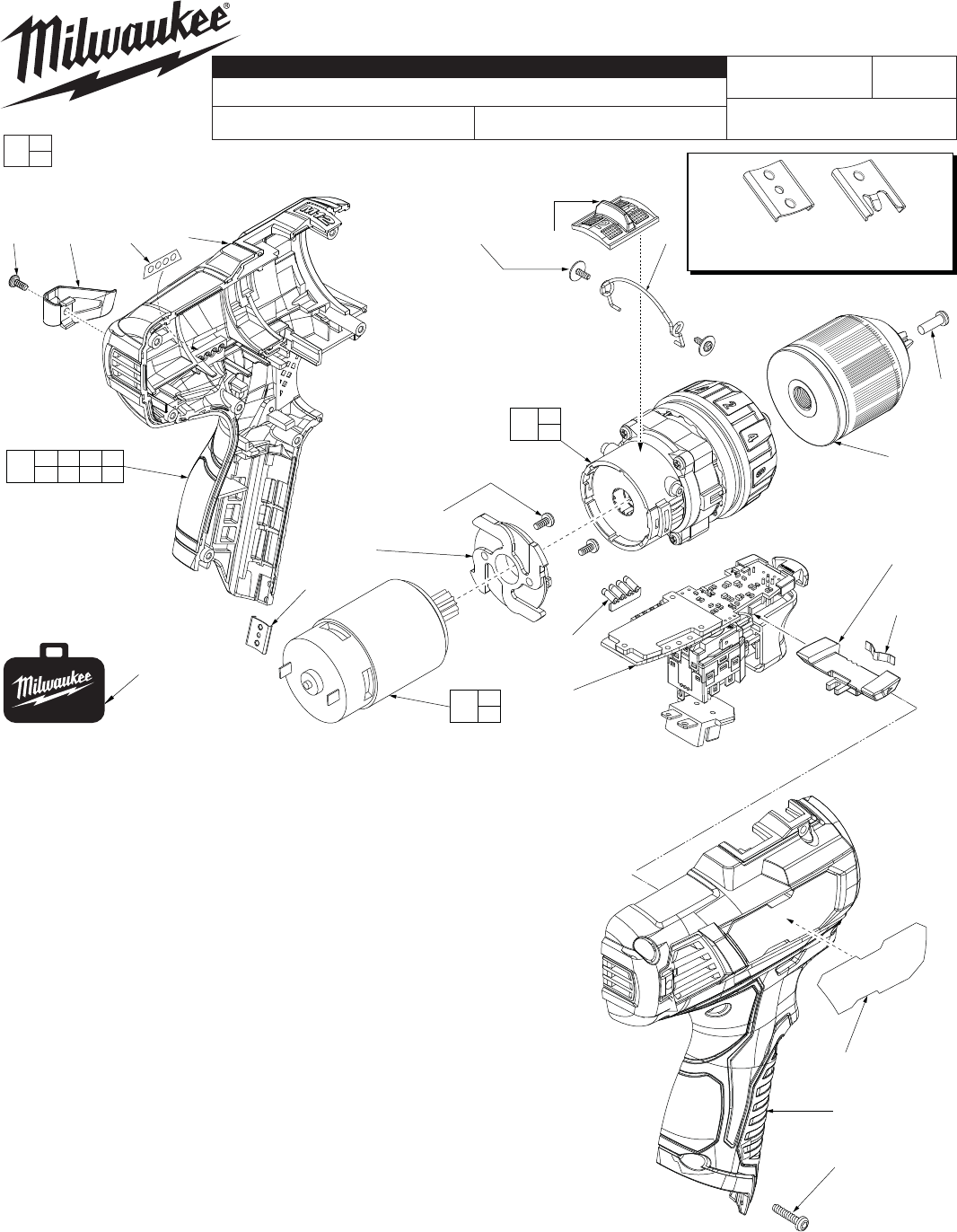

SERVICE PARTS LIST
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-88-1680 M5 x 0.8 x 18.5mm LH Chuck Screw (1)
2 42-66-0825 3/8" Keyless Chuck (1)
8 05-81-0542 M2.3 x 4.5mm ST Screw (2)
9 44-10-0710 Speed Selector Lever (1)
12 06-82-1080 M3.0 x 14mm Pan Hd. T-10 ST Screw (7)
14 --------------- Housing Cover (Right Handle Halve) (1)
15 --------------- M3 x 6mm Screw (2)
16 44-66-1585 Motor Mount Plate (1)
19 12-20-2407 Service Nameplate (1)
20 10-20-2810 Warning Label (Not Shown) (1)
23 31-01-0003 Light Pipe (1)
24 45-24-0325 Speed Selector Slide Button (1)
25 42-42-0820 Forward/Reverse Shuttle (1)
26 40-50-1135 Shuttle Spring Plate (1)
29 42-70-0055 Housing Connection Clip (1)
30 --------------- Housing Support (Left Handle Halve) (1)
31 --------------- Fuel Gauge Label (1)
32 05-88-1010 M2.5 x 6mm Pan Hd. Phillips Screw (1)
33 42-70-0580 Belt Clip (1)
34 14-50-2430 Service Motor Assembly with Pinion (1)
35 14-29-0825 Service Gearcase Assembly (1)
38 42-55-2105 Carrying Case (1)
39 14-38-0250 Service Housing Set (1)
40 23-66-1795 Service Switch/Electronics Assembly (1)
CATALOG NO. 2407-20
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
Cordless M12™ 3/8" Driver-Drill
STARTING
SERIAL NO.
WIRING INSTRUCTION
F10A
SEE REVERSE SIDE
DATE
Feb. 2014
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. Lisbon Road, Brook eld, WI 53005
Drwg. 5
FIG. NOTES:
16,34,35 Service replacement gearcase assembly (35) comes with a
motor mount plate (16) that must be removed and discarded
when servicing. A motor mount plate already exists on the
motor assembly (34).
0
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
00
38
8(2x) 24 9
32 33 31 30
19
14
12(7x)
2
25
26
1
29
16
15(2x)
23
40
15
16
34
12 14 19 20
21 23 30
39
16
35
See detail above
*
42-70-0058
Improved
Design
Original
Design
42-70-0055
*
M12™ tools utilize two different Housing
Connection Clip designs depending on the
Handle Set . See page two for details.
