- 11 -

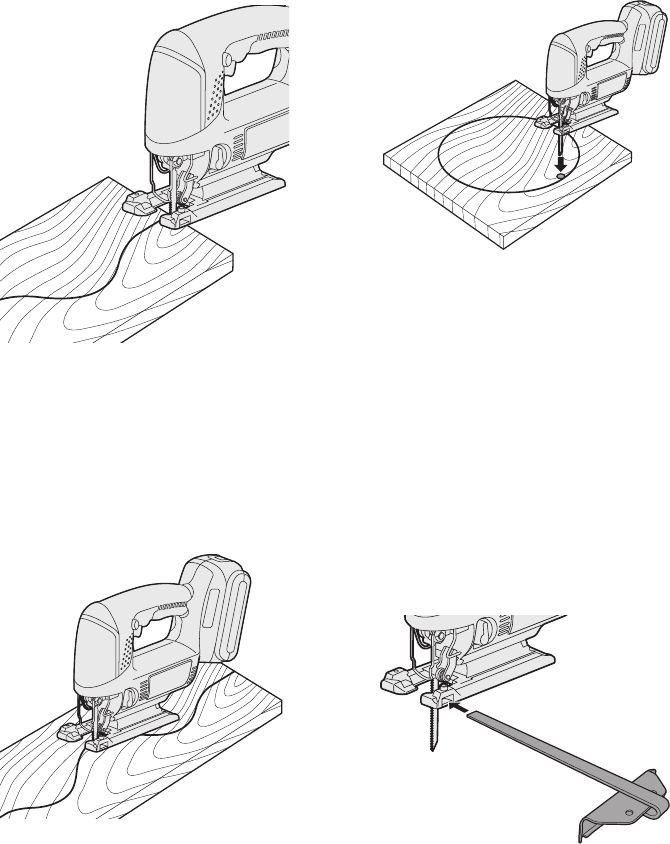

Cutting along marked lines
1. Place the object to be cut onto the
base, and align the blade with the
marked line.
• Do not touch the blade against the
object to be cut before pulling the
power switch.
2. Pull the power switch, wait until the
speed has stabilized, and then place
the base against the object to be cut
and cut along the marked lines.
• When cutting complex shapes such
as shapes with many small curves,
reduce the cutting speed and the
turning speed.
Plunge cutting
1. Make a drill hole in the section to be
plunge cut in order to let the blade
pass through.
2. Insert the blade into a hole without
touching the workpiece, and then
turn on the power switch.
3. Cut along the marked line.
Using a rip fence (EY9X011E)
(Available as an accessory,
not included)
A rip fence can be used for cutting
parallel lines and for cutting circles
and arcs.
Installing the rip fence
1. Loosen the rip fence fixing screw.
2.
Pass the rip fence through the mount.
3. Adjust the cutting position and then
tighten the fixing screw.
