Panasonic EY74A1 Cordless Drill User Manual



- 11 -
V. ASSEMBLY

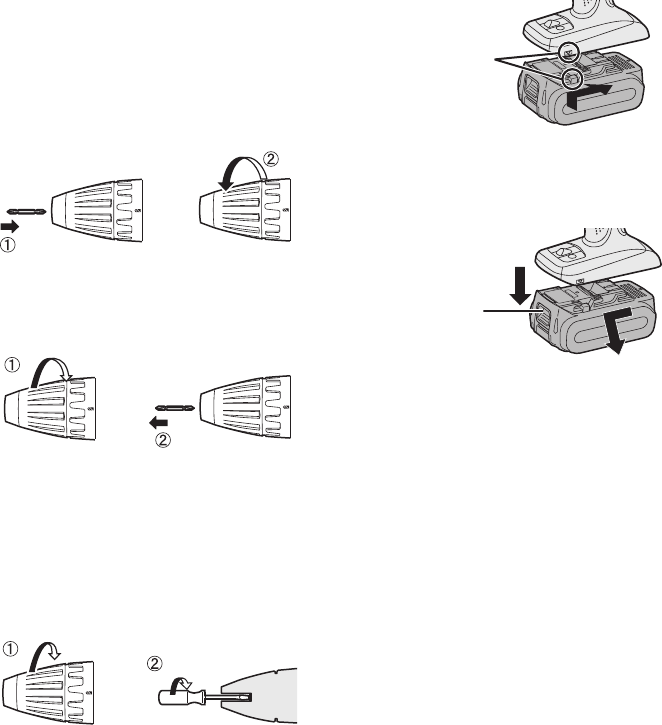

Attaching or Removing Bit
NOTE:
When attaching or removing a bit,
disconnect battery pack from tool or
place the switch in the center position
(switch lock).
This tool is equipped with a keyless drill
chuck.
1. Attachment
Insert the bit and turn the lock collar
clockwise (looking from the front) to
tighten rmly until it stops clicking.
2. Removal
Turn the lock collar counterclockwise
(looking from the front), then remove
the bit.
NOTE:
If excessive play occurs in the chuck,
secure the drill in place and
1
open
the chuck jaws by turning the lock collar
and
2
tighten the screw (left-handed
screw) with a screwdriver by turning
it counterclockwise (viewed from the
front).
Attaching or Removing Bat-
tery Pack
1. To connect the battery pack:
Line up the alignment marks and attach
the battery pack.
Slide the battery pack until it locks
into position.
2. To remove the battery pack:
Pull the button from the front to release
the battery pack.
VI. OPERATION
[Main Body]
Switch Operation
1. The speed increases with the amount
of depression of the trigger. When
beginning work, depress the trigger
slightly to start the rotation slowly.
2. A feedback electronic controller is used
to give a strong torque even in low
speed.
3. The brake operates when the trigger
is released and the motor stops
immediately.
NOTE:
When the brake operates, a braking
sound may be heard. This is normal.
Alignment marks
Button
