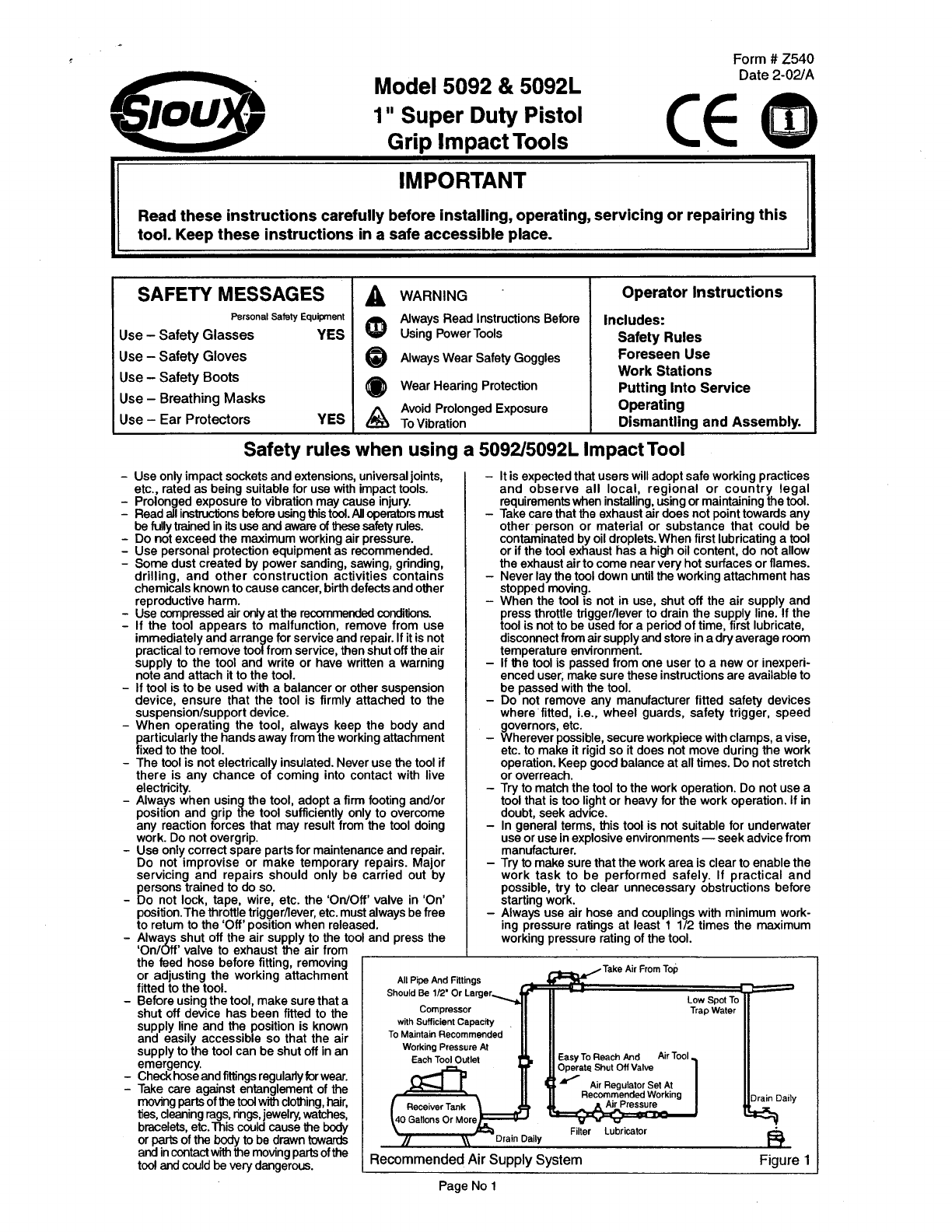

Z540
Model
5092
&
5092L
Date 2-02lA
1"
Super Duty Pistol
Grip
Impact
Tools
C?
0
IMPORTANT
Read these instructions carefully before installing, operating, servicing or repairing this
tool. Keep these instructions in a safe accessible place.
1
SAFETY MESSAGES
1
A
WARNING
1
Operator Instructions
Personal
Safety
Equipment
Always Read Instructions Before
Includes:
1
Use
-
Safety Glasses
YES
1
0
"sing Power Tools
1
Safety Rules
Safety
rules
when
using
a
509215092L
Impact Tool
Use
-
Safety Gloves
Use
-
Safety Boots
Use
-
Breathing Masks
Use
-
Ear Protectors
YES
-
Use only impact sockets and extensions, universal joints,
etc., rated as being suitable for use with impact tools.
-
Prolonged exposure to vibration may cause injury.
-
Read all instructions before using this tool. All operators
must
@
Always Wear Safety Goggles
@
Wear Hearing Protection
Avoid Prolonged Exposure
A
T
o Vibration
be fully trained in its use
and
aware
of
these
safety
rules.
-
Do not exceed the maximum working air pressure.
-
Use personal protection equipment as recommended.
-
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains
chemicals known to cause cancer, birth defects and other
reproductive harm.
-
Use compressed air
only
at
the
recommended conditions.
-
If the tool aooears to malfunction, remove from use
ores seen
Use
Work Stations
Putting Into Service
Operating
Disrnantlina and Assernblv.
immediately and arran e for service and repair. If it is not
practical to remove tooTfrom service, then shut off the air
supply to the tool and write or have written a warning
note and attach it to the tool.
-
If tool is to be used with a balancer or other suspension
device, ensure that the tool is firmly attached to the
suspension/support device.
-
When operating the tool, always keep the body and
particularly the hands away from the working attachment
fixed to the tool.
-
The tool is not electrically insulated. Never use the tool if
there is any chance of coming into contact with live
electricity.
-
Always when usin the tool, adopt a firm footing and/or
position and grip &e tool sufficiently only to overcome
any reaction forces that may result from the tool doing
work. Do not overgrip.
-
Use only correct spare parts for maintenance and repair.
Do not improvise or make temporary repairs. Major
servicing and repairs should only be carried out by
persons trained to do so.
-
Do not lock, tape, wire, etc. the 'OnIOff' valve in 'On'
position.The throttle triggerllever, etc.must always be free
to return to the 'Off'
~osition when released.
-
Alwa s shut off the 'air supply to the tool and press the
'on/&' valve to exhaust the air from
the feed hose before fitting, removina
7
-
It is expected that users will adopt safe working practices
and observe all local, regional or country legal
requirements when installing, using or maintaining the tool.
-
Take care that the exhaust air does not point towards any
other person or material or substance that could be
contaminated by oil droplets. When first lubricating a tool
or if the tool exhaust has a high oil content, do not allow
the exhaust air to come near very hot surfaces or flames.
-
Never lay the tool down until the working attachment has
stopped moving.
-
When the tool is not in use, shut off the air supply and
press throttle triggerllever to drain the supply line. If the
tool is not to be used for a
oeriod of time. first lubricate.
disconnect
from
air supply &d store in a dry average room
temperature environment.
-
If the tool is passed from one user to a new or inexperi-
enced user, make sure these instructions are available to
be passed with the tool.
-
Do not remove any manufacturer fitted safety devices
where fitted, i.e., wheel guards, safety trigger, speed
governors, etc.
-
Wherever possible, secure workpiece with clamps, avise,
etc. to make it rigid so it does not move during the work
operation. Keep good balance at all times. Do not stretch
or overreach.
-
Try
to match the tool to the work operation. Do not use a
tool that is too light or heavy for the work operation. If in
doubt, seek advice.
-
In general terms, this tool is not suitable for underwater
use or use in explosive environments
-
seek advice from
manufacturer.
-
Try to make sure that the work area is clear to enable the
work task to be performed safely. If practical and
possible, try to clear unnecessary obstructions before
starting work.
-
Always use air hose and couplings with minimum work-
ing pressure ratings at least
1
112
times the maximum
working pressure rating of the tool.
or adjusting the working attachment
fitted to the tool.
-
Before using the tool, make sure that a
shut off device has been fitted to the
supply line and the position is known
and easily accessible so that the air
supply to the tool can be shut off in an
emergency.
-
Check hose and fittings regularly for wear.
-
Take care against entanglement of the
moving parts of the tool
with
clothing, hair,
ties, cleaning rags, rings, jewelry, watches,
bracelets, etc.This could cause the
body
or
parts
of the
body
to be drawn towards
and
in contact with the moving parts of the
tool and could
be
very
dangerous.
Easy
To
Reach
And
Air
Tool
Recommended
Air
Supply System
Figure
1
Page No
1
