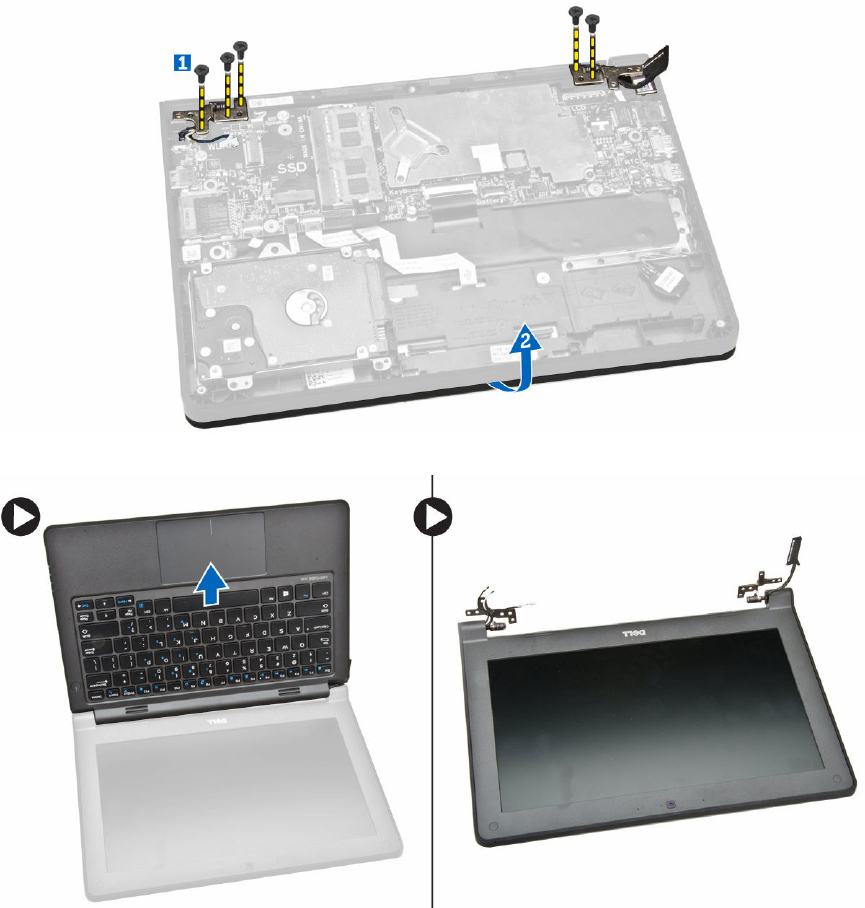

5. Pull the keyboard base assembly away from the display assembly to separate them.
Installing the Display Assembly
1. Place the display assembly on the computer chassis.
2. Adjust the display hinges to align with the screw holders on the computer chassis.
3. Tighten the screws to secure the display assembly to the computer.
4. Connect the display cable to its connector on the system board.
5. Place the metal bracket to secure the display cable and tighten the screws to secure the metal
bracket.
6. Connect the network cable to its connector on the system board.
7. Install the:
