4

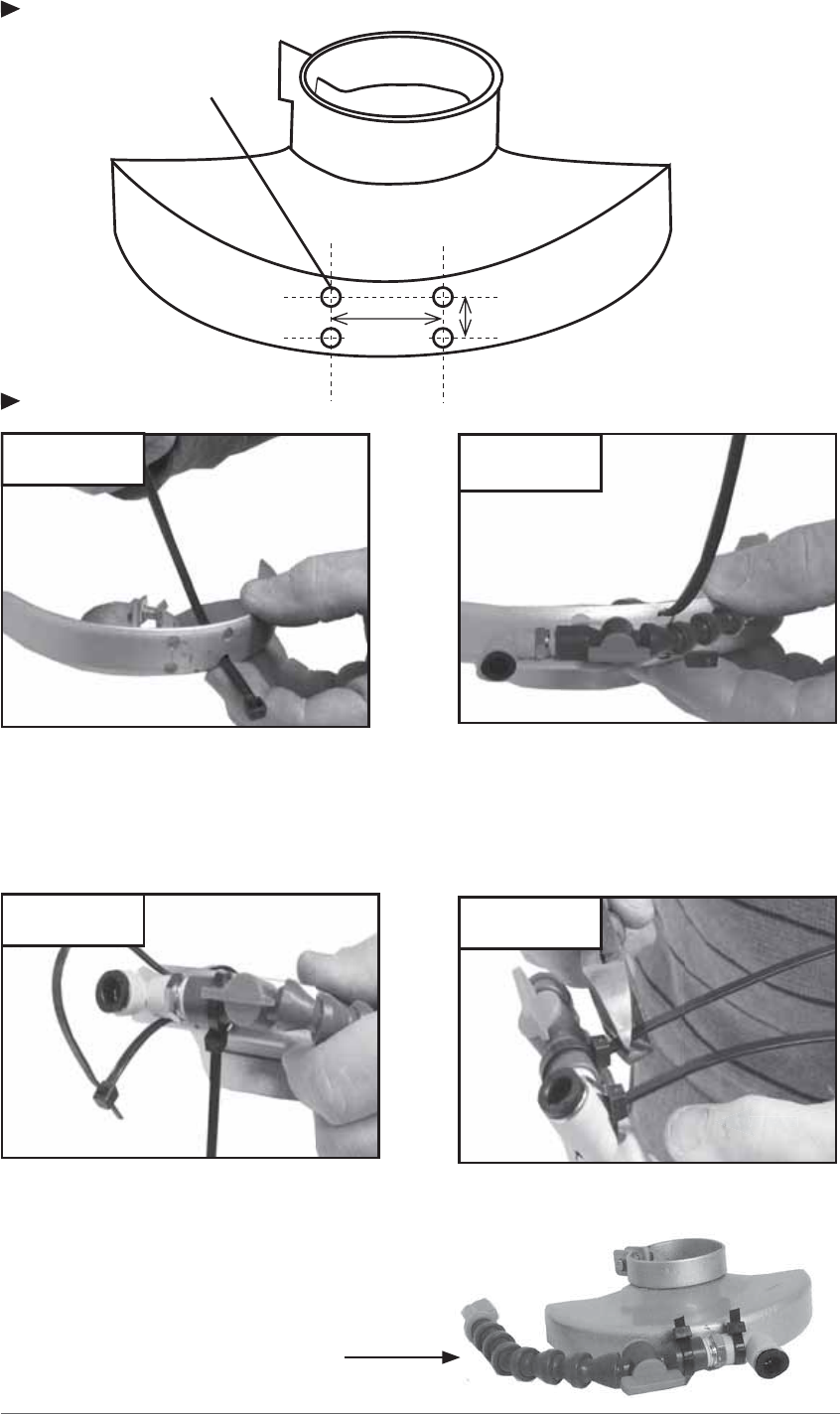

ASSEMBLY OF WBCKIT GUARD
1. Thread plastic cable tie through
holes in the guard. (If using another
grinder the safety guard must be
altered to accomodate cable ties
as shown above).
STEP 2
STEP 3
STEP 4
2. Place coolant tube between holes
on Guard and tighten in place with
plastic tie.
3. Repeat steps 1 and 2 to com-
pletely secure the coolant tube to
the guard.
4. Trim plastic ties with pliers as shown
above.
WBCKIT Guard Assembly
STEP 1
Hole Size:
5mm or #8 Drill Bit
10mm (3/8”)
25mm (1”)
CREATING THREAD HOLES FOR THE PROTECTIVE GUARD
Illustration of
Protection Guard
