5.2 Main Panel

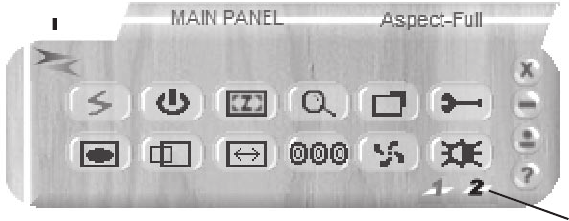

A main panel appears containing 15 icons that provide the control
functions of the unit (icons 15 through 18 pertain to the application
itself). Click an icon to perform a function.
Refer to the list of numbers below to learn the function of the icons.
Icon #
Function
1
Connection Status - If gray, there is no connection
2
Power On Indicator
3
System Reset
4
Zoom
5
Magni er
6
Over/Under-scan
7
Option
8
Aspect
9
Pan/Position
10
Expand/Size
11
Output Format
12
Screen Freeze
13
Video Settings
14
Prompt Text
15
Close
16
Minimize
17
System Tray
18
About
19
RS-232 Com Port in Use
