Video Input Connectors
HDTV Component (YPbPr) Three RCA female (loops to output)
PC One HD-15 female (loops to output)
Video Output Connectors
Composite One RCA female
S-Video 4-pin Mini-DIN female
Component (YPbPr) Three RCA female
Input Signal
HDTV Resolution Supported 480i/p, 576i/p, 720p,1080i
PC Resolution Supported VGA, SVGA, XGA, SXGA, UXGA
Output Signal
Composite/S-Video NTSC or PAL, interlaced
Component YCbCr
Control Methods
Local Push buttons on unit + OSD
Remote IR remote control w/OSD + RS-232
Mechanical
Size (H-W-D) 2”x 8”x6” (50 x 204 x 155mm)
Weight (Net) 2.2 lbs. (1kg)
Warranty
Limited Warranty 1 year replacement
Power Requirement
External Power Supply 5 VDC @ 2A
Regulatory Approvals
1361 FCC, CE
Power Supply UL, CE, CSA
Accessories Included
Power adapter, HD-15 to HD-15 VGA cable, 3-RCA to 3-RCA cable,
RCA to RCA component cable, S-Video cable, IR remote control,
Application Software CD, User manual

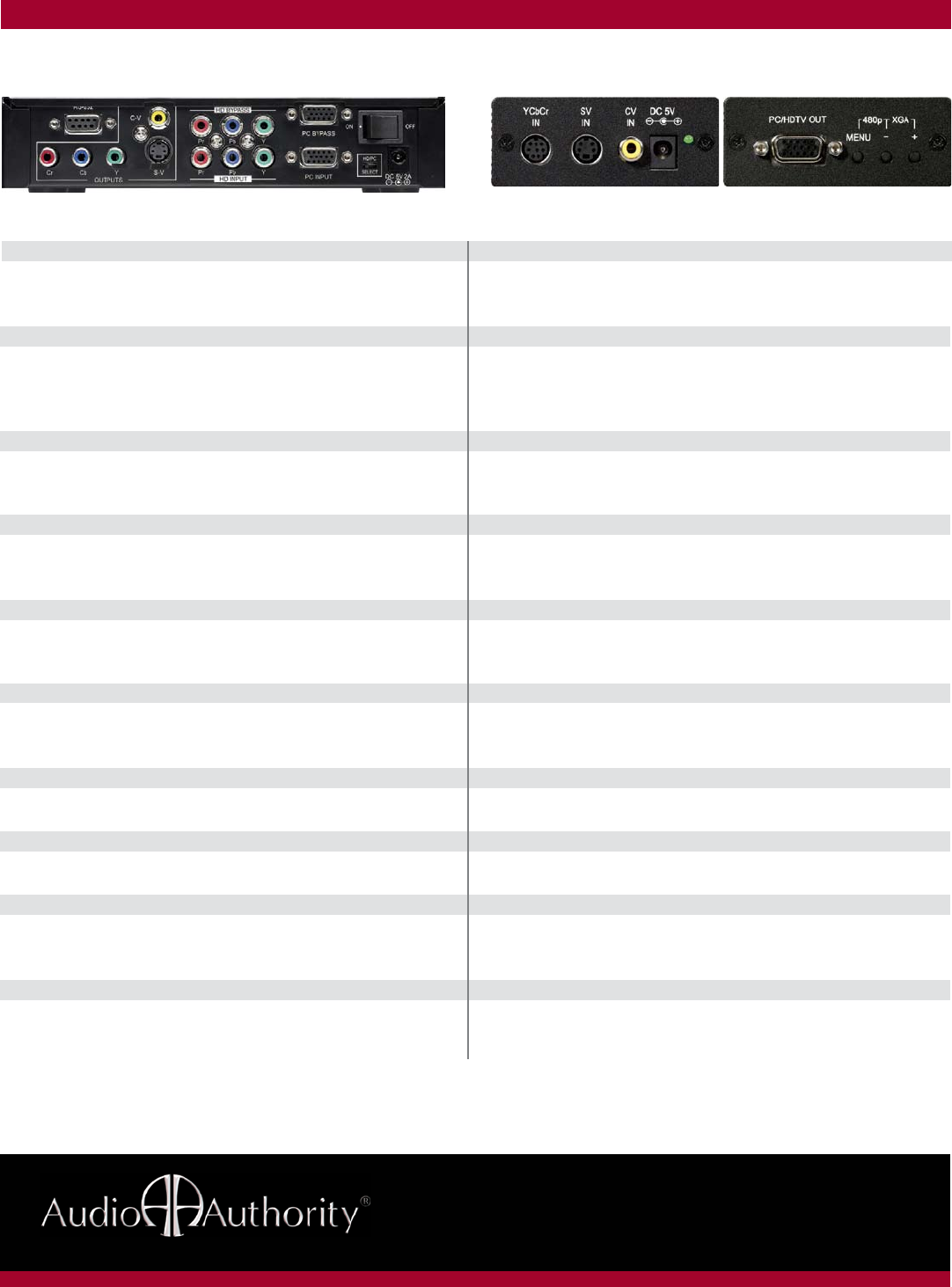

MODEL 1361
Audio Authority also offers an extensive line of audio and video switchers, converters, and distribution amps. All units are FCC, and
CE approved, and all power supplies are UL, CE and CSA approved.
Video Converters/Scalers
Video Input Connectors
Composite One RCA female
S-Video 4-pin Mini-DIN female
YUV 8-pin Mini-DIN w/breakout cable
Video Output Connectors
HDTV/PC HD-15
Input Signal
Input Format Composite Video, S-Video, YUV (Y,R-Y,B-Y)
Input Signal Levels One HD-15 female (loops to output)
Output Signal
Output Format RGBHV, YPbPr
Output Signal Levels RGB @ 0.7V p-p, 75
Ω. H&V Sync @ 3-5V
p-p, TTL
Control Methods
Local Front Panel Buttons
Adjustments
Brightness, Contrast, Color, Tint, Sharpness,
H&V Peaking
Mechanical
Size (H-W-D) 1.2”x 5.25”x 3” (30 x 133 x 76mm)
Weight (Net) .62 lbs. (280 g)
Warranty
Limited Warranty 1 year replacement
Power Requirement
External Power Supply 5 VDC @ 2A
Regulatory Approvals
1362 FCC, CE
Power Supply UL, CE, CSA
Accessories Included
Power adapter, 8 pin Mini DIN to 3 RCA cable, HD-15 to 3 RCA cable, User
manual
MODEL 1362
