Bodyvette Bodyspray 28466XX1
Installation
Specification
Flow rate @ 45 psi 2.0 gpm
Required tools
Adjustable wrench
Teflon tape
Waterproof bathroom sealant
Bodyspray Placement
Custom showers are sized to the user(s). Bodysprays are normally placed at the upper
back, middle back, and upper thigh. Always position bodysprays according to the
preferences of the user(s).

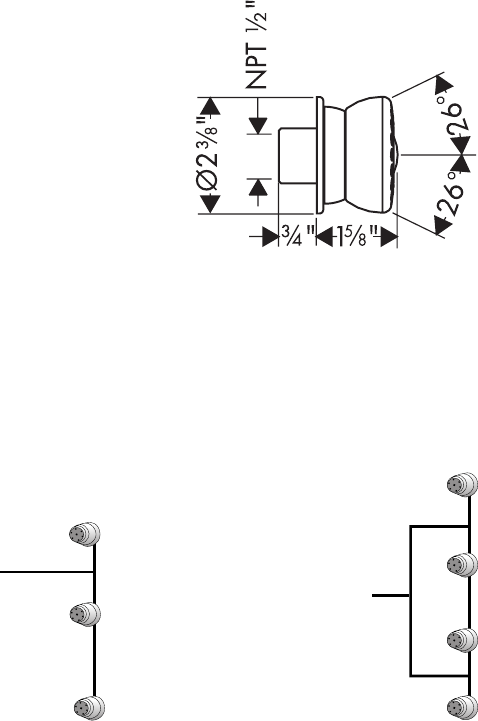

Pressure Balancing Loop
Rough-in Suggestion
This installation requires a 1/2” male threaded pipe fitting recessed 3/8” behind the
surface of the finished wall. The plumber should install a properly anchored 1/2” female
pipe fitting (i.e. a drop-ear ell) recessed into the wall, into which a brass pipe nipple of
proper length can be fitted once the finished wall is complete.
If installing bodysprays in
a bank of four or more, a
pressure balancing loop
must be used to keep the
pressure even between the
bodysprays.
If installing bodysprays in
a bank of 3 or fewer, a
pressure balancing loop is
not necessary.
