Model number 11320VS
Shank style SDS-plus
®
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
Demolition Hammer
VENTILATION
OPENINGS
DUST
SHIELD
LOCKING
SLEEVE
AUXILIARY
HANDLE
VENTILATION
OPENINGS
HAND GRIP
"VARIO-LOCK"-
SELECTOR RING
NOTE: For tool specifications refer to the nameplate on your tool.

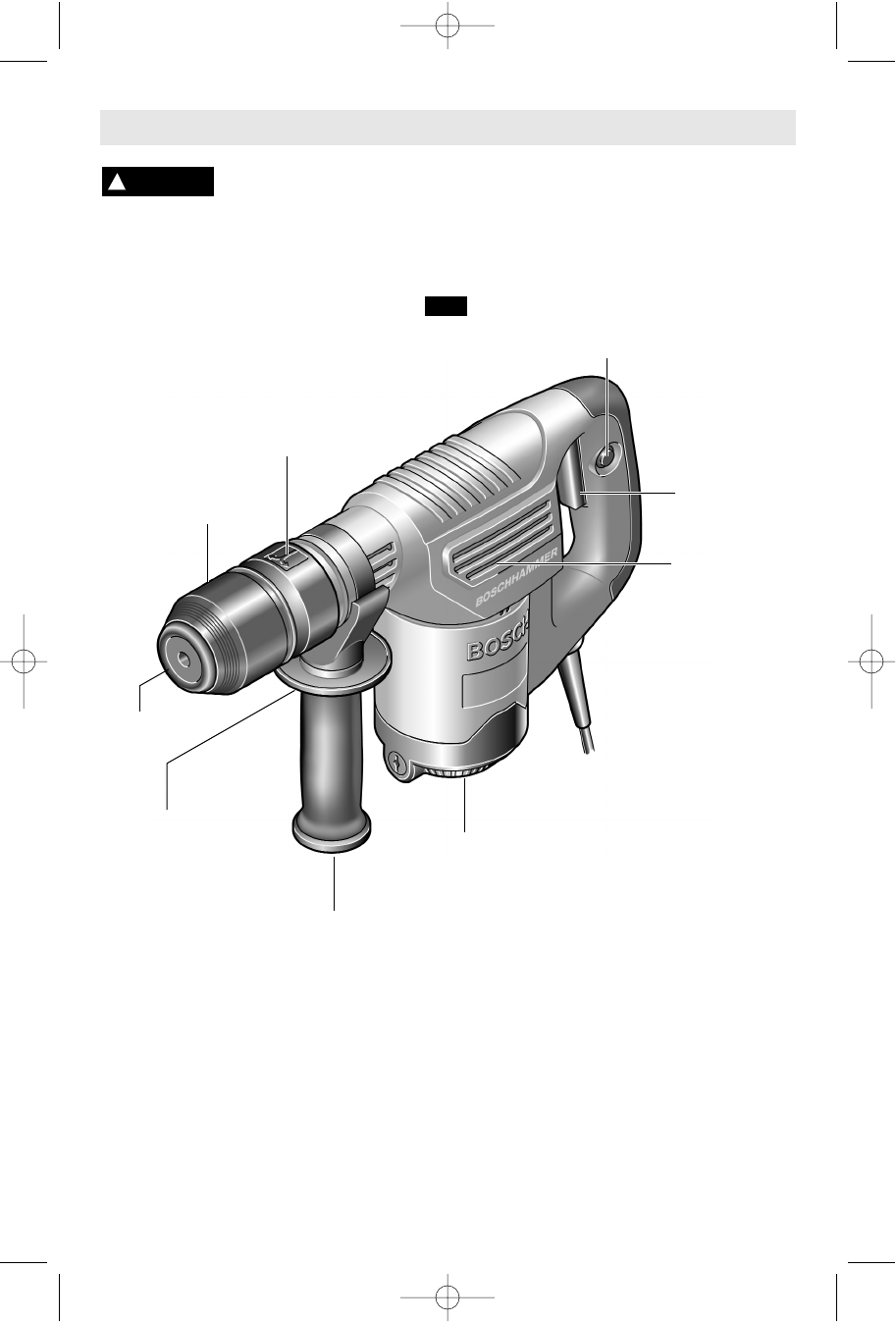

FIG. 1
VARIABLE SPEED
CONTROLLED
TRIGGER SWITCH
"LOCK-ON"
BUTTON
