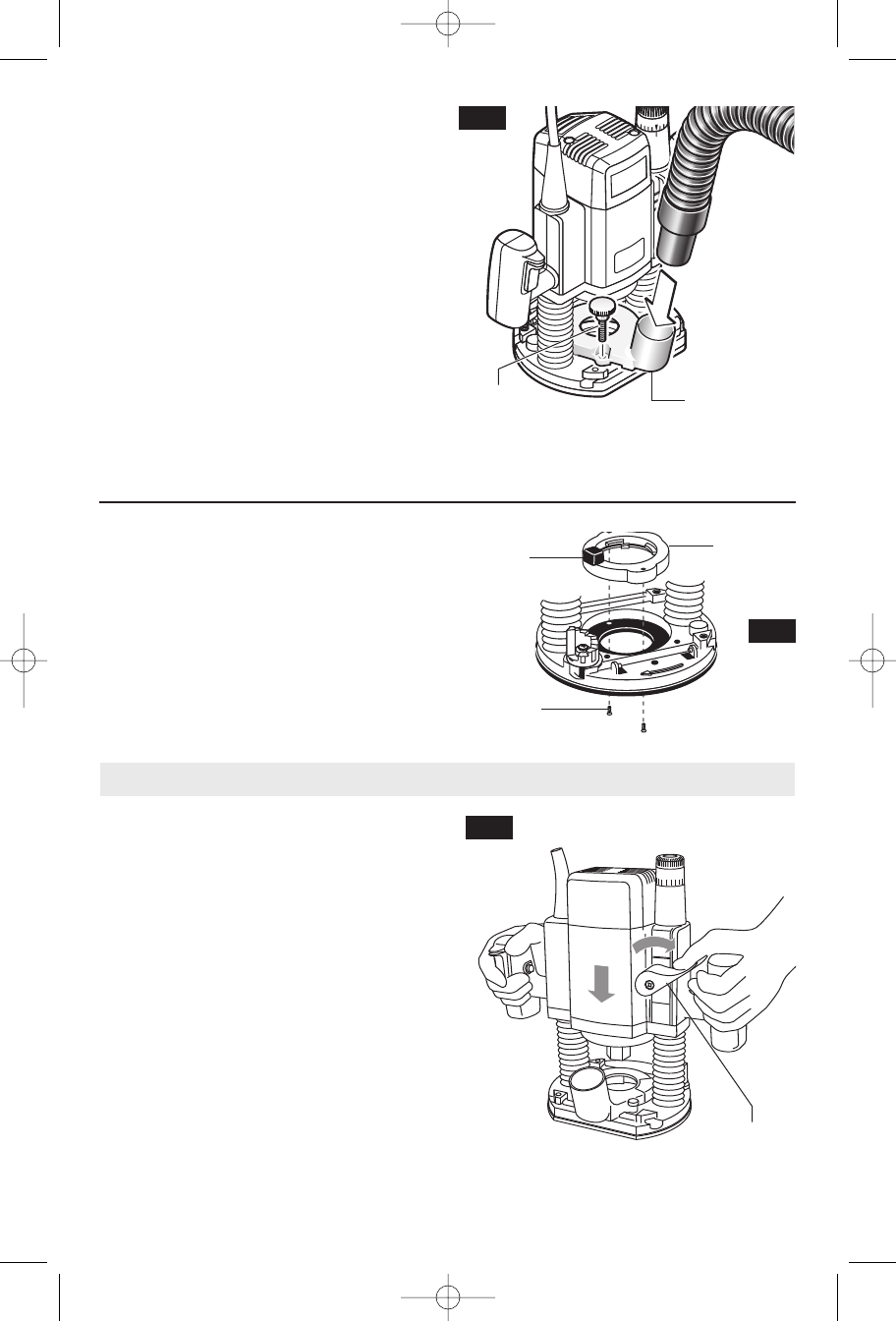

INSTALLING TEMPLET GUIDE ADAPTER
Place templet guide adapter over the holes in
the center of the sub-base, and align the two
threaded holes in the bottom of adapter with
the countersunk holes in sub-base. Fasten
adapter with the screws provided. Note that
the adapter is reversible, so the release lever
may be positioned as desired (Fig. 6).
ROUTER DUST COLLECTION
Your router is equipped with a dust extraction
h
ood for use when routing is done in the middle
of the workpiece, such as when creating slots
or routing patterns for inlays. If you have a shop
vacuum system, you can attach the dust
extraction hood for improved visibility, accuracy
and utility, particularly in freehand routing.
To attach, position as shown and secure
adapter to base with the thumbscrews provided
(Fig. 5).
The dust extraction hood can also be installed
with the hose outlet facing the front of the tool.
If the templet guide adapter is installed, it will
need to be reversed or removed to allow the
release lever to fit under the dust hood.
The dust extraction hood itself is sized to
accept 35mm vacuum hoses. Also included is
an adapter that will connect the hood to 1-1/4”
and 1-1/2” vacuum hoses.
Also available as an optional accessory is a
special dust collection for edge forming. Do not
use both hoods at the same time.
-9-
Operating Instructions
Bosch plunge routers are designed for speed,
accuracy and convenience in performing
cabinet work, routing, fluting, beading, cove-
cutting, dovetails, etc. This will enable you to
accomplish inlay work, decorative edges and
many types of special carving.
PLUNGING ACTION
The plunge feature simplifies depth
adjustments and will allow the cutting bit to
easily and accurately enter the workpiece. To
lower, push plunge lock lever to the left, apply
downward pressure until you reach desired
depth, and release pressure on lever to lock
(Fig. 7). The plunge lock lever is spring loaded
and returns automatically to the locked
position. To raise the router, push plunge lock
lever to the left, release pressure on router and
the router will automatically retract the bit from
the workpiece. It is advisable to retract the bit
whenever it is not engaged in workpiece.
TEMPLET
GUIDE
ADAPTER
TEMPLET
GUIDE
RELEASE
LEVER
PLUNGE
LOCK LEVER
MOUNTING
SCREWS
FIG. 6
FIG. 5
DUST
EXTRACTION
HOOD
M4 THUMB
SCREWS
FIG. 7
