-7-
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories
. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
Circular Saw
Maximum Capacities
Model 1656
Blade
8-1/4"
Blade arbor hole
Round
Depth of cut at 90° 2-15/16"
Depth of cut at 60° 1-5/8"
Depth of cut at 50° 1-3/4"
Depth of cut at 45° 2-1/4"
NOTE: For tool specifications refer to the nameplate on your tool.

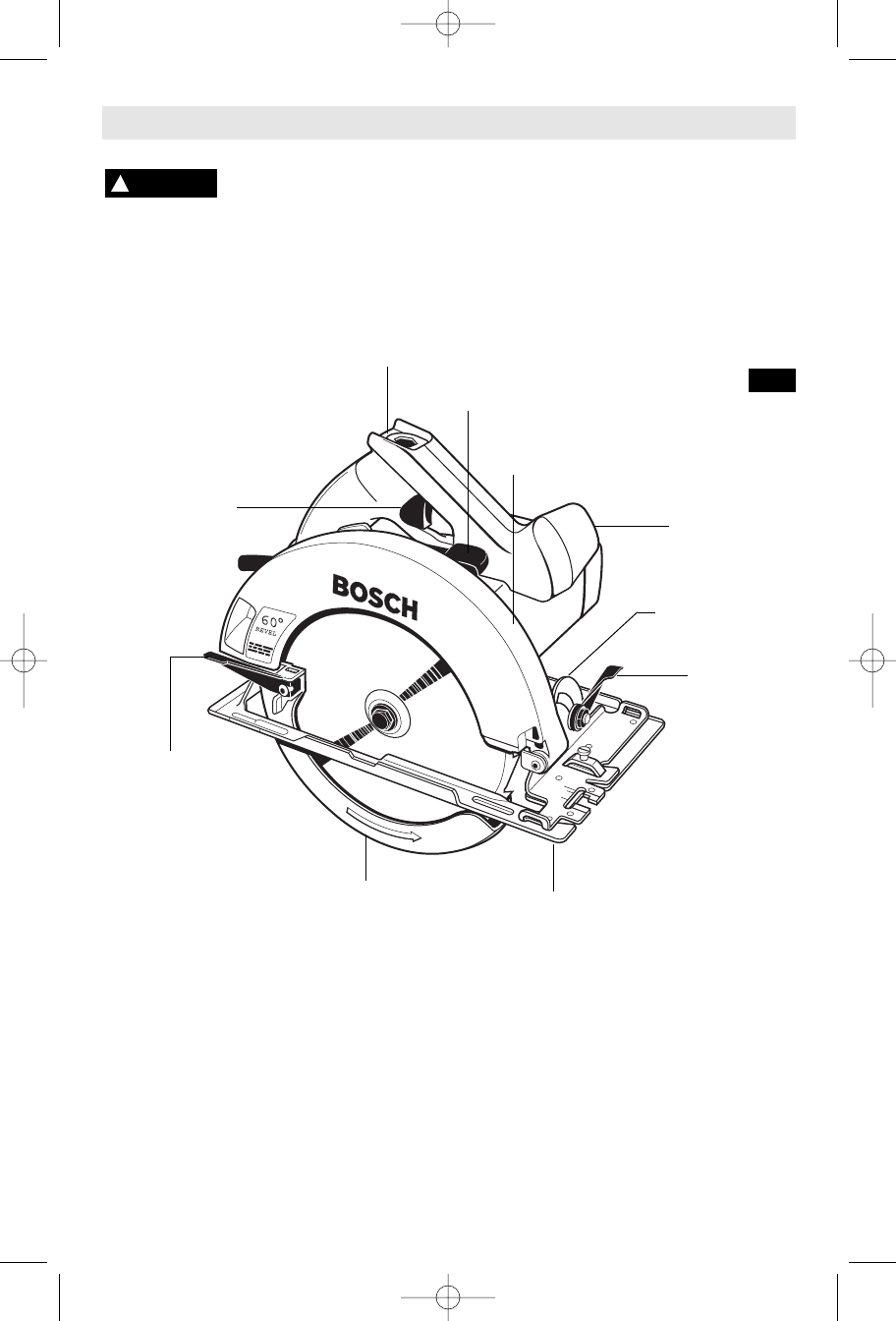

LOWER GUARD
LIFT LEVER
TRIGGER
SWITCH
LOWER
GUARD
FOOT
BEVEL
ADJUSTMENT
LEVER
QUADRANT
B
LADE WRENCH
& STORAGE AREA
AUXILIARY
HANDLE
FIG. 1
UPPER
GUARD
RETRACTING
HANDLE
BM 1619X00905 3-05 3/24/05 11:00 PM Page 7
