-8-
Functional Description and Specifications
FOOT
LOWER
GUARD LIFT
LEVER
AUXILIARY
HANDLE
BEVEL
ADJUSTMENT
KNOB
CALIBRATED BEVEL
QUADRANT
Disconnect battery pack from tool or place the switch in the locked or
off position before making any assembly, adjustments or changing
accessories. Such preventive safety measures reduce the risk of starting the tool
accidentally.
!
WARNING
DUST PORT
COVER
DEPTH
ADJUSTMENT
KNOB
Cordless
Circular Saws
UPPER GUARD
LOWER GUARD
ADJUSTABLE
LINE GUIDE
LOCK
BUTTON
PUSH 45°STOP SPRING IN
DIRECTION OF ARROW
FOR 50°

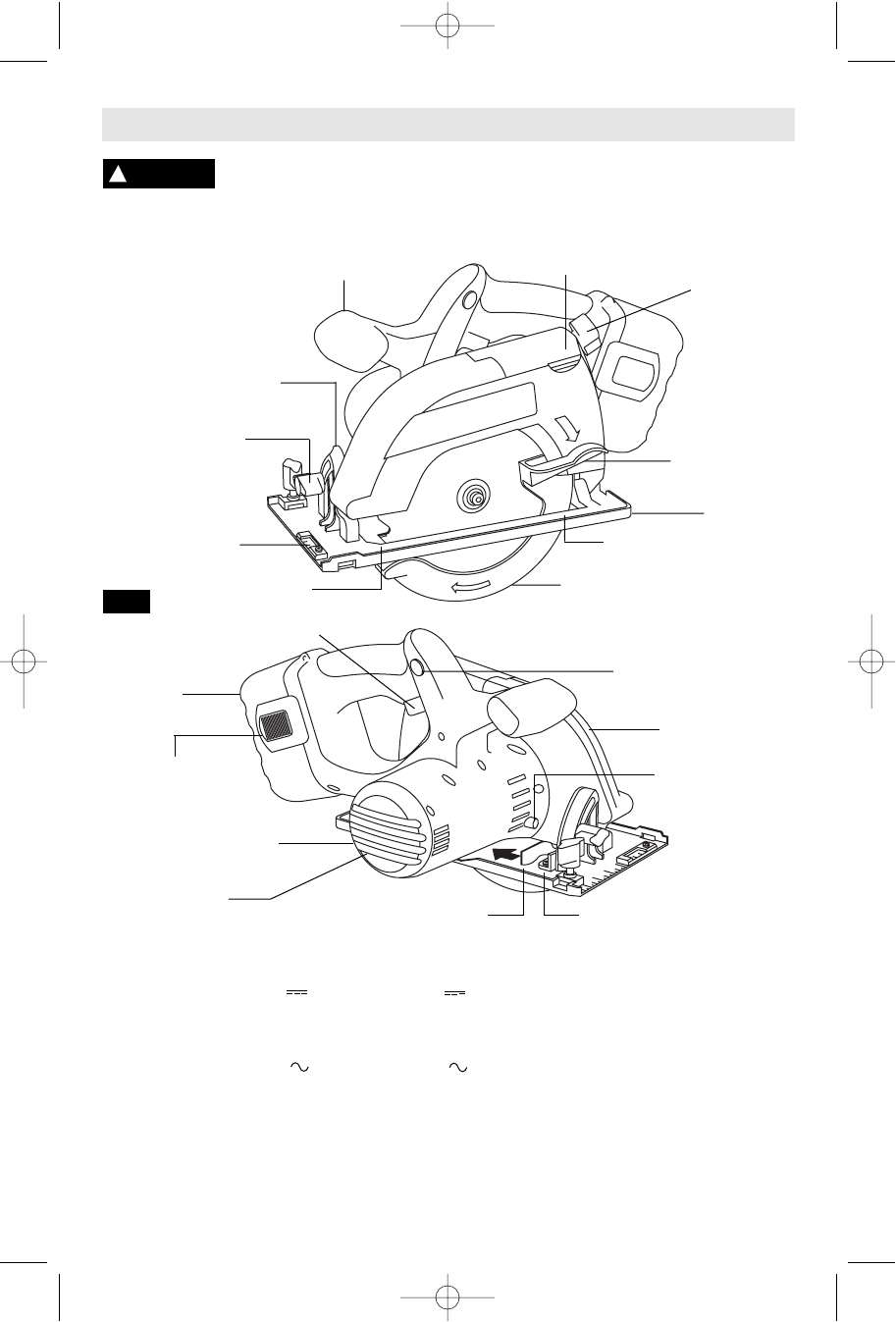

FIG. 1
BATTERY PACK
RELEASE TABS
BATTERY
PACK
ALIGNMENT
SCREW
SAFETY SWITCH
RELEASE
BUTTON
TRIGGER
BLADE WRENCH &
STORAGE AREA
VENTILATION
OPENINGS
END OF CUT ARROW
BEGINNING OF
CUT ARROW
Tool Maximum Capacities
Model number 1660 1662 Blade 6-1/2"
Voltage rating 24 V 18 V Depth of cut at 90° 2-1/8"
No load speed n
0
3,600/min n
0
3,600/min Depth of cut at 45° 1-5/8"
Charge time 1 hr 1 hr Depth of cut at 50° 1-1/2"
Charger BC004, 6, & BC016 BC003, 4, 6, & BC016 ATTENTION: Use only thin
Voltage rating 120 V 60 Hz 120 V 60 Hz kerf blades designed for
Battery pack BAT030 & BAT031 BAT025 & BAT026 Cordless Circular Saws.
BC006 charger requires 12 V DC input
NOTE: ONLY USE CHARGERS LISTED ABOVE
For replacement blades we recommend Bosch Cordless Circular saw blades. Their thin kerf
and tooth design deliver the best speed, quality of cut, and reduce battery drain. Use of
standard blades will substantially affect the performance and reduce run-time.
BM 2610914527 3/03 3/18/03 10:47 AM Page 8
