Functional Description and Specifications
Disconnect the plug from the power source before making any
a
ssembly, adjustments or changing accessories.
S
uch preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
NOTE: For tool specifications refer to the nameplate on your tool.
Model number 1800 1801 & 1803EVS 1806E
Max. wheel diameter 4 1/2" (115mm) 5" (125mm) 6" (150mm)
Spindle thread 5/8"-11 UNC 5/8 "-11 UNC 5/8 "-11 UNC
Max. wire wheel 4" Dia. 4" Dia. 4" Dia.
Max. wire cup brush 3" Dia. 3" Dia. 3" Dia.
Max. sanding disc 4 1/2" Dia. 5" Dia. 6" Dia.
Max. cut off wheel 4 1/2" Dia. 5" Dia. 6" Dia.
Max. dry diamond wheel 4 1/2" Dia. 5" Dia. 6" Dia.

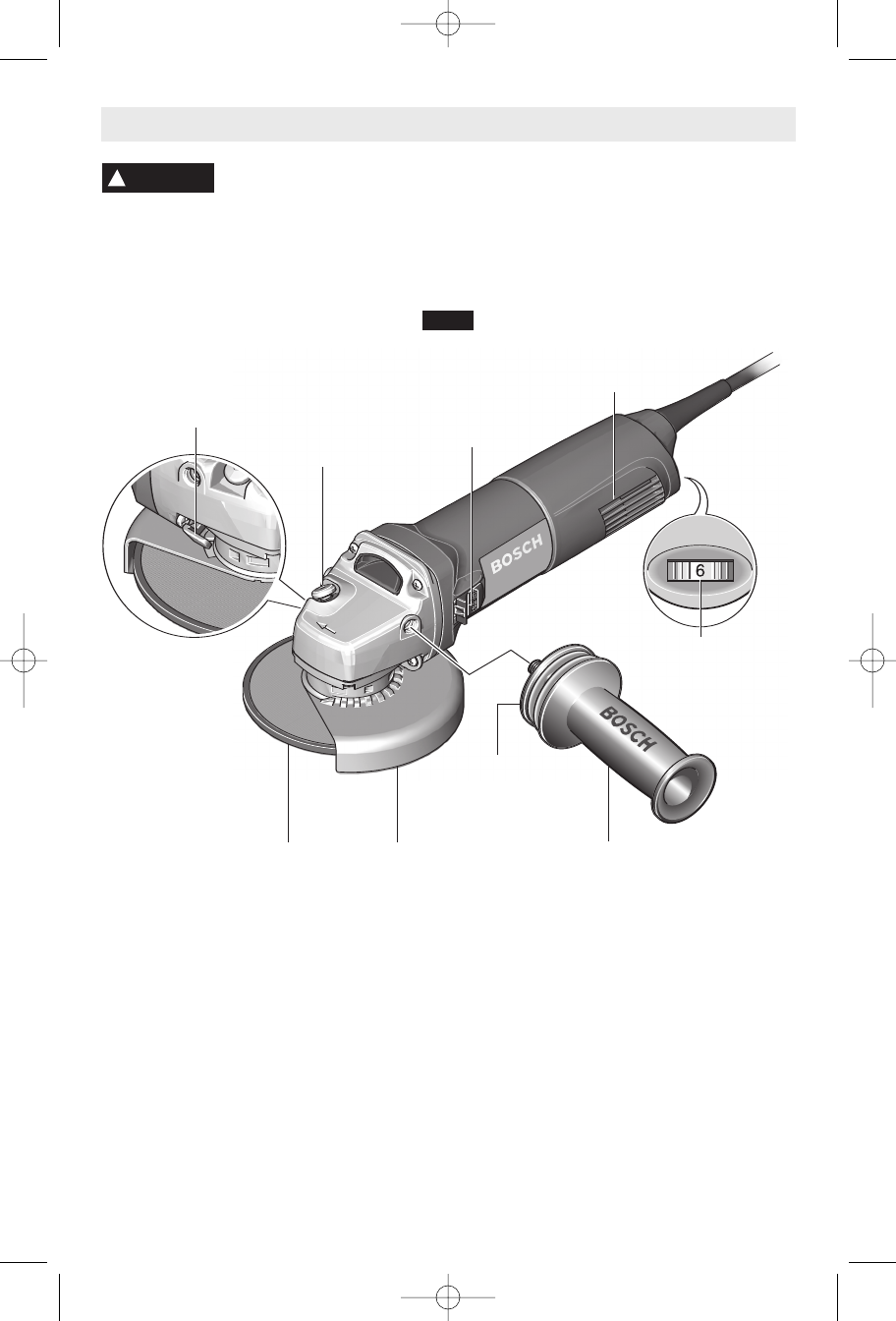

Angle Grinders
GRINDING
WHEEL
GUARD
RELEASE / ADJUSTMENT
BUTTON
SPINDLE LOCK
SIDE HANDLE
WHEEL
GUARD
VENTILATION
OPENINGS
SWITCH
BUTTON
VARIABLE SPEED
WITH DIAL SETTING
(Model 1803EVS only)
FIG. 1
VIBRATION
CONTROL
