Before assembling wire brush to this tool,
disconnect from the power source. Attach
hand guard (Fig. 1). Wire brushes are
equipped with their own threaded hub, simply
thread on to spindle. Be sure to seat against
shoulder before turning tool “ON”.
TO REMOVE: Reverse procedure.
&!&""(
Before assembling wire wheel to this tool,
disconnect from the power source. Attach type
27 guard (Fig. 2). Wire wheeels are equipped
with their own threaded hub, simply thread on
to spindle. Be sure to seat against shoulder
before turning tool “ON”.
TO REMOVE: Reverse procedure.
"!($##&""(
Disconnect plug from power source.
Completely unscrew the four screws and
rotate the tool head carefully to the new
position without removing it from the housing.
For paddle switch tools, switch should face
“down” towards work surface. For slide switch
tools, slide should face “up” towards user, so
the tool can be used for long masonry cutting
applications. Screw in and tighten the four
screws again. (Fig. 7)
Return tool head to original
position when returning to
grinding, sanding, brushing or metal cutting
applications.
Install dust extraction guard with foot plate for
masonry cutting applications so that the
rotation of the wheel will be towards the
vacuum extraction port. Place BACKING
FLANGE and DRY DIAMOND WHEEL on the
spindle. Thread on the LOCK NUT and tighten
nut using the supplied lock nut wrench, while
holding the spindle lock in. (Fig. 8)
Use only lock nut and flange
with equal diameters.
Do not use water or other
cooling fluid with this tool for
cutting.
!
WARNING

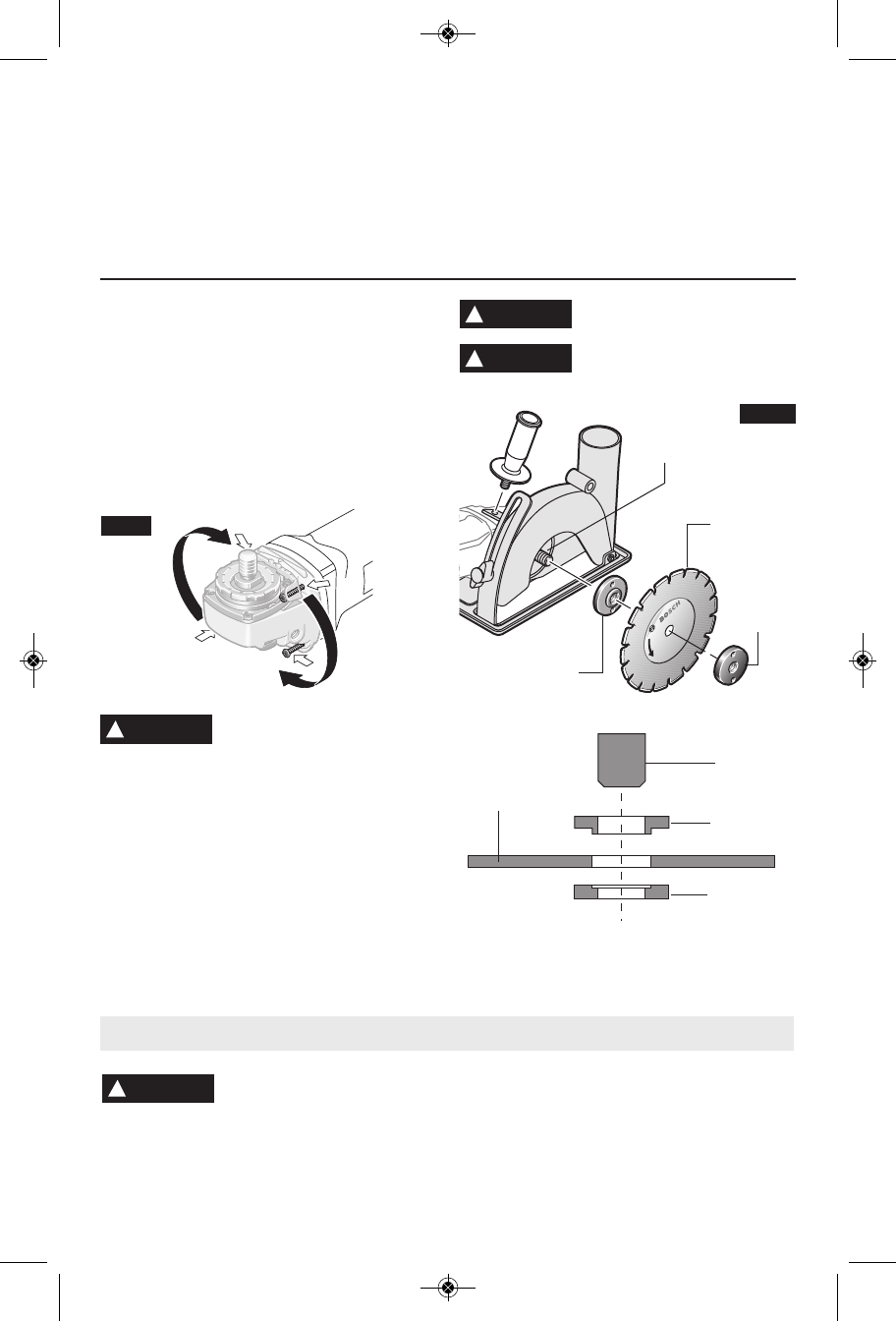

FIG. 7
FIG. 8
SPINDLE
LOCK
NUT
BACKING
FLANGE
DRY
DIAMOND
WHEEL
LOCK NUT
BACKING
FLANGE
SPINDLE
DRY
DIAMOND
WHEEL
!
WARNING
!
WARNING
Hold the tool with both hands
while starting the tool, since
torque from the motor can cause the tool to twist.
Start the tool before applying to work and let
the tool come to full speed before contacting
the workpiece. Lift the tool from the work
before releasing the switch. DO NOT turn the
switch “ON” and “OFF” while the tool is under
load; this will greatly decrease the switch life.
!
WARNING
