Using the optional type 1 wheel guard
(supplied with 1812PSD only), it is possible
to perform limited cutting on small stock such
as metal tubes, piping or rebar.
Do not attempt to cut large stock or sheets of
metal as this tool is not designed to be a
dedicated cutting tool.
Always use type 1 protection
guard for cutting.
Disconnect tool from power source. Be sure
that wheel guard is in place for cutting.
When using mounting wheels, thread
BACKING FLANGE onto spindle, then place
WHEEL on the spindle. Thread on the lock
nut and tighten nut using a lock nut wrench
provided with adapter kit, while holding the
spindle lock in (Fig. 5).
TO REMOVE: Reverse procedure.
#( !"%
"#!#!&"
878=><.=B9.*+;*<2?.
@1..5< -.<207.- /8;
<=;*201=-2.0;27-270 #12<=8852<78=
-.<207.-/8;><.@2=1=B9.*+;*<2?.
<=;*201=-2.0;27-270@1..5<
-12-
!
WARNING
!
WARNING
TYPE 1
WHEEL GUARD
(Included with model
1812PSD only)
SPINDLE
BACKING
FLANGE
TYPE 1A
WHEEL

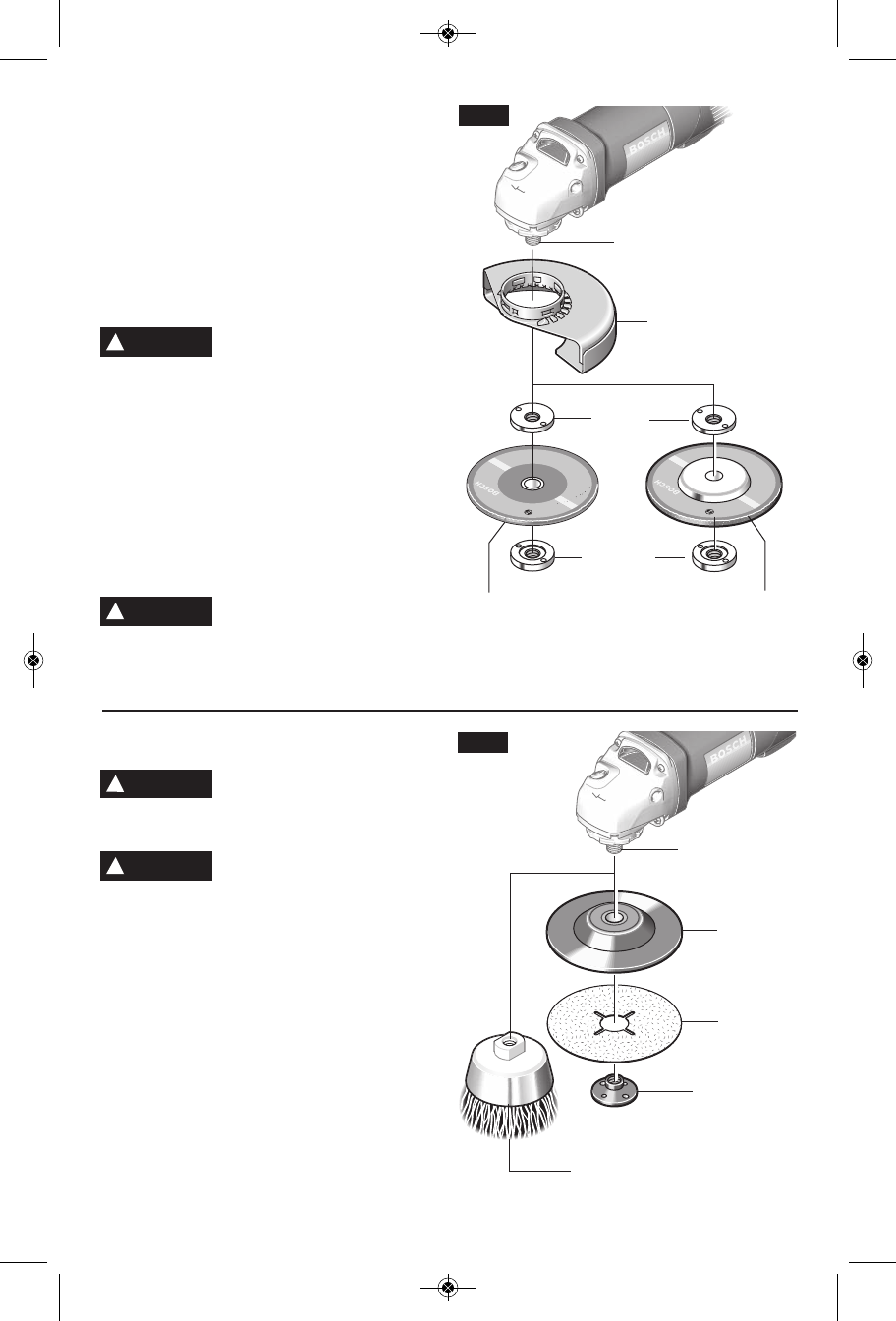

FIG. 5
LOCK NUT
"""!"""(
Before attaching a backing
pad be sure its maximum
safe operating speed is not exceeded by the
nameplate speed of the tool.
Wheel guard may not be
used for most sanding
operations. Always reinstall wheel guard
when converting back to grinding operations.
#"#
""
Disconnect tool from power source.
Attach hand guard (Fig. 1). Set the tool on its
top side (spindle up). Place the rubber
backing pad onto the spindle shaft. Center
the sanding disc on top of the backing pad.
Insert the lock nut through the disc and
thread onto the spindle as far as you can with
your fingers. Press in the spindle lock, then
tighten the backing pad securely with lock nut
wrench (Fig. 6).
TO REMOVE: Reverse procedure.
!
WARNING
!
WARNING
SANDING
DISC
BACKING
PAD
LOCK NUT
WIRE
BRUSH
SPINDLE
FIG. 6
TYPE 27A
WHEEL
