Functional Description and Specifications
Disconnect battery pack from tool before making any assembly,
adjustments or changing accessories
. Such preventive safety measures
reduce the risk of starting the tool accidentally.
!
WARNING

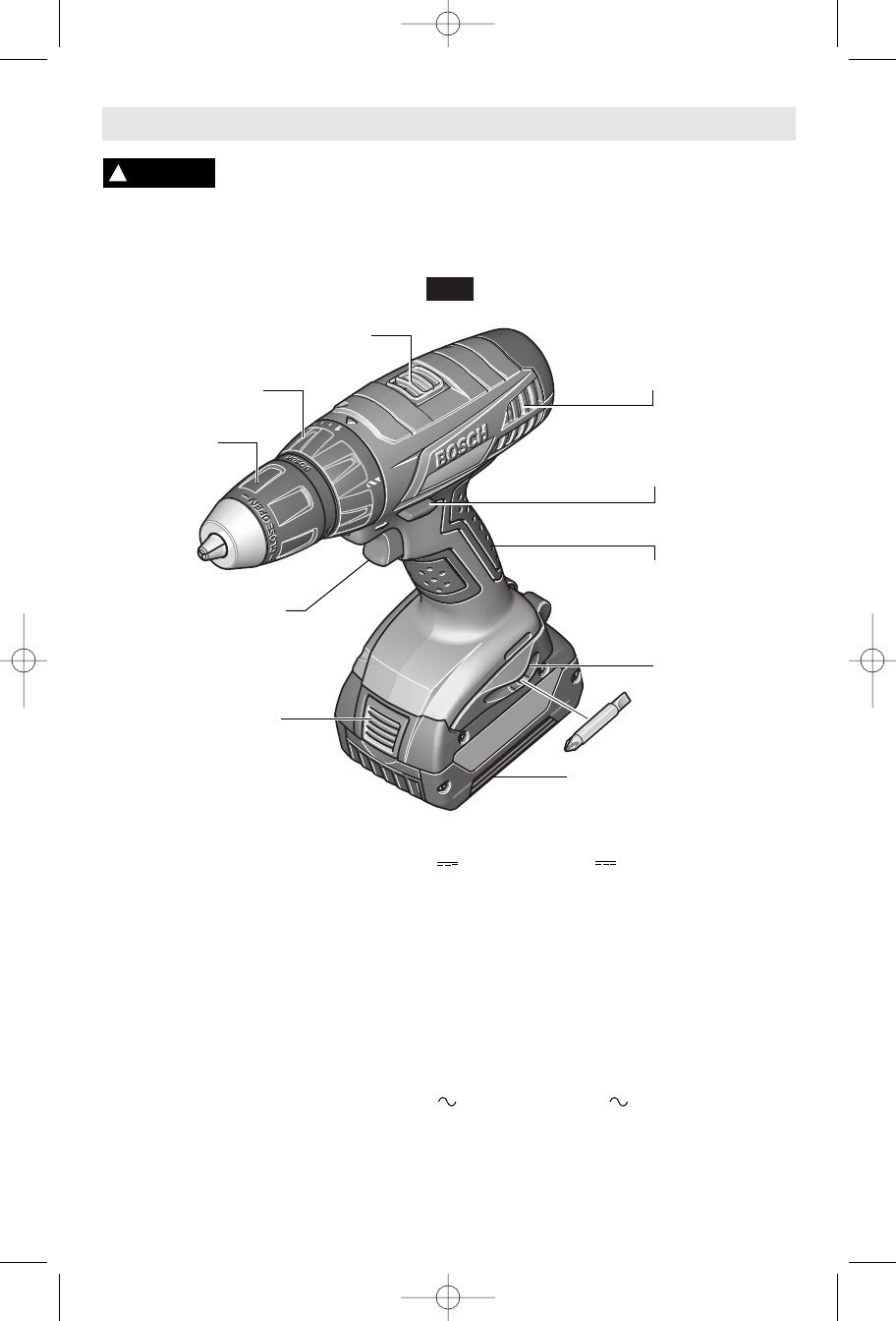

Cordless Drill/Driver
FIG. 1
BATTERY PACK
VENTILATION OPENINGS
GEAR SHIFTER
RUBBERIZED
GRIP
BIT STORAGE
AREA
KEYLESS
CHUCK
ADJUSTABLE CLUTCH
VARIABLE SPEED
TRIGGER SWITCH
FORWARD/REVERSING
LEVER & TRIGGER LOCK
Model number 36614 36618
Voltage rating
14.4 V 18 V
No load speed 1 n
0
0-450/min n
0
0-500/min
No load speed 2 n
0
0-1450/min n
0
0-1600/min
Maximum Capacities
Chuck size 1/2" 1/2"
Screw sizes #16 x 3" #16 x 3"
Mild metal 1/2" 1/2"
Hard wood
1-1/2"
1-1/2"
Soft wood
2"
2"
Battery pack BAT607 & BAT614 BAT609 & BAT618
Charger BC630 & BC660
BC630 & BC660
Voltage rating 120 V 60 Hz 120 V 60 Hz
NOTE: For tool specifications refer to the nameplate on your tool.
BATTERY PACK
RELEASE BUTTON
