Set Forward/Reversing lever to the center (off
position). Slide charged battery pack into the
housing until the battery pack locks into
position (Fig. 1).
Your tool is equipped with a secondary locking
latch to prevent the battery pack from
completely falling out of the handle, should it
become loose due to vibration.
To remove the battery pack, press the battery
pack release button and slide the battery pack
forward.
Press the battery pack release button again
and slide the battery pack completely out of
tool housing (Fig. 1).
-14-
RIP CUTS
The combination blade provided with your saw
is for both cross cuts and rip cuts. Ripping is
cutting lengthwise with the grain of the wood.
R
ip cuts are easy to do with a rip fence
(
Fig. 13). To attach fence, insert fence through
slots in foot to desired width as shown and
secure with the knob.
After attaching or adjusting
the rip fence, be sure the
rip fence does not touch or interfere with
the free movement of the lower guard or
contact the saw blade.
RIP BOARD GUIDE
When rip cutting large sheets, the rip fence
may not allow the desired width of cut. Clamp
or nail a straight piece of 1" (25 mm) lumber to
t
he sheet as a guide (Fig. 14). Use the right
s
ide of the foot against the board guide.

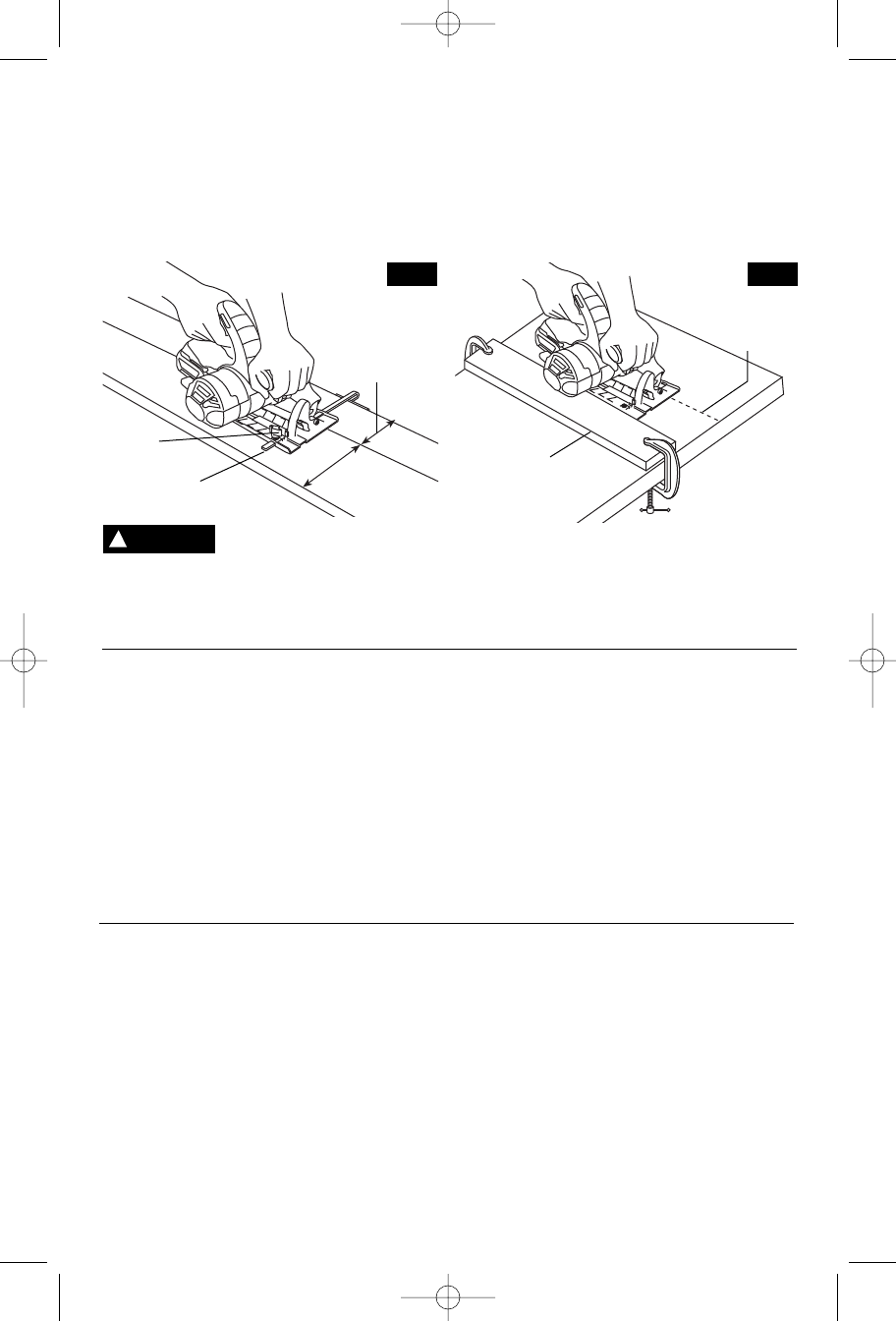

FIG. 13
FIG. 14
RIP
FENCE
KNOB
DESIRED
WIDTH
OF CUT
DESIRED
LINE
OF CUT
RIP
BOARD
GUIDE
INSERTING AND RELEASING BATTERY PACK
1. The charger was designed to fast charge
the battery only when the battery temperature
is between 32˚F (0˚C) and 113˚F (45˚C). If the
battery pack is too hot or too cold, the charger
will not fast charge the battery. (This may
happen if the battery pack is hot from heavy
use). When the battery temperature returns to
between 32˚F (0˚C) and 113˚F (45˚C), the
charger will automatically begin charging.
2. A substantial drop in operating time per
charge may mean that the battery pack is
nearing the end of its life and should be
replaced.
3. Remember to unplug charger during storage
period.
4. If battery does not charge properly:
a. Check for voltage at outlet by plugging in
some other electrical device.
IMPORTANT CHARGING NOTES
!
WARNING
BM 2610001787 07-08 7/24/08 10:42 AM Page 14
