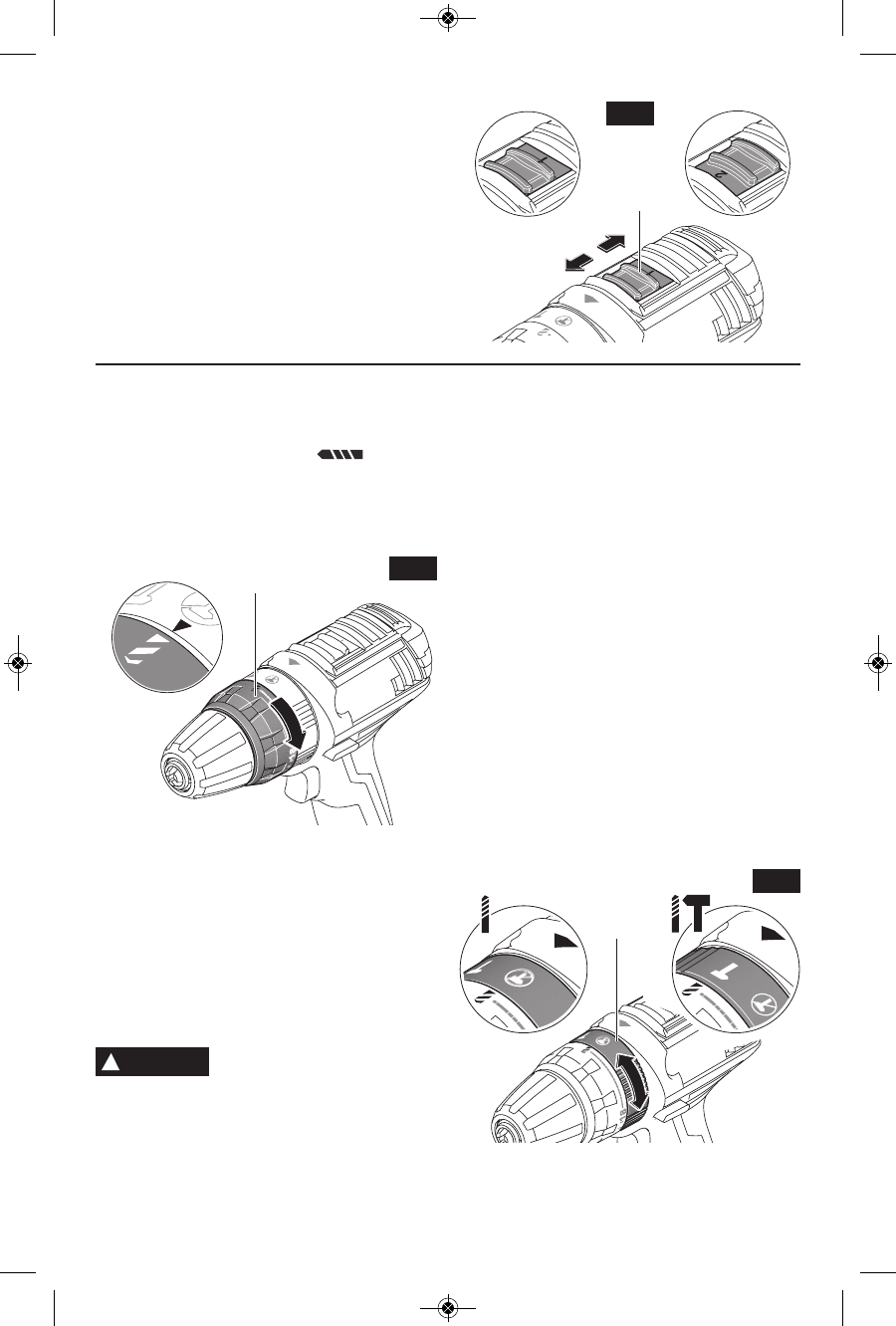

Your tool is equipped with two separate gear
ranges, low gear and high gear. Low gear
provides high-torque and slower drilling
speeds for heavy duty work or for driving
screws. High gear provides faster speeds for
drilling lighter work. To change speeds slide
switch, to the high or low position (Fig. 5).
If your tool appears to be
running, but the chuck will not turn, check to
make sure the gear shifting switch is pushed
fully into desired setting.
GEAR
SHIFTER
FIG. 5
! !
Your tool features 26 clutch settings. Output
torque will increase as the clutch ring, is
rotated from 1 to 25. The drill “ ” position
will lock up the clutch to permit drilling and
driving heavyduty work, and also enables bits
to be changed quickly and easily in the
keyless chuck (Fig. 6).
When the trigger switch is released it
activates the brake to stop the chuck quickly.
This is especially useful in the repetitive
driving and removal of screws.
! #
Your tool is also equipped with a light that turns
on automatically when the switch is activated,
for better visibility when drilling/driving (Fig. 1).
When the tool is attached to
the belt, position yourself to
avoid entanglement with surrounding objects.
Unexpected entanglement could cause the
tool to fall resulting in injury to the operator or
bystanders.
The optional belt clip accessory will allow you
to conveniently attach your tool to your belt.
This feature will allow you to have both
hands free when climbing a ladder or moving
to another work area.
The belt clip can be attached to either side of
the tool by securing it with a mounting screw.
Always make sure you securely tighten the
mounting screw before use (Fig. 1).
To use clip, turn tool upside down and attach
to your belt.
3()0320=
The selector ring allows the tool to be set for
various drilling/hammer drilling applications.
Rotate the selector dial right or left
depending on the below applications (Fig. 7).
Drill only action: For drilling in woods, metals,
plastics or other non concrete materials.
Drill with hammer action: For drilling in
concrete, asphalt, tile or other similar hard
materials. The hammer drill position overrides
the clutch for hammer drilling.
MODE
SELECTOR
RING
FIG. 7
!
WARNING
ADJUSTABLE
CLUTCH
FIG. 6
