1 Gallon Air
Compressor
FP260100

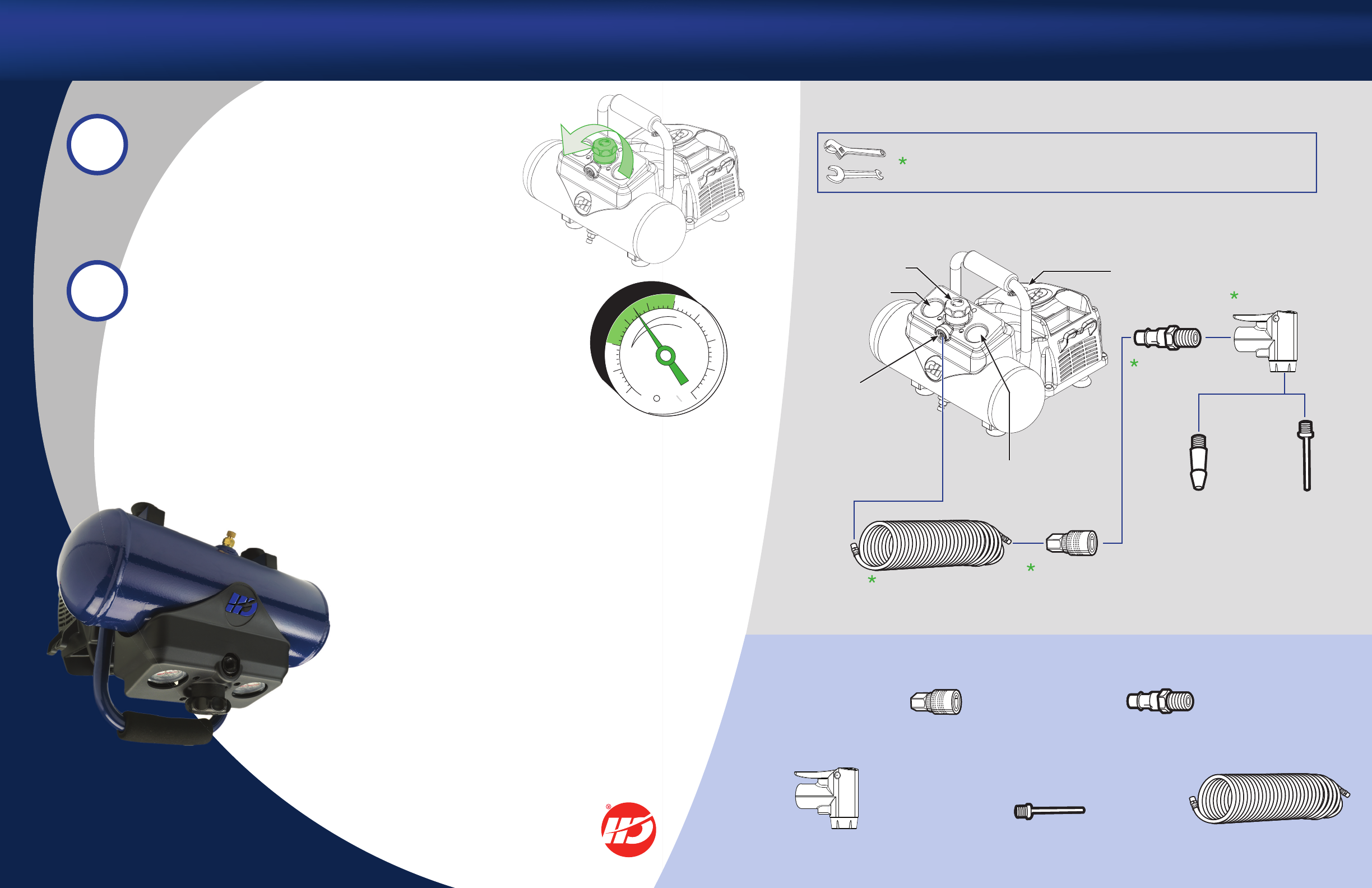

Setup Like a Pro
Easy Setup Guide
Projects are easier with
Campbell Hausfeld products.
Thank you for purchasing a Campbell Hausfeld
product. We are dedicated to providing tools that
help you to complete your projects Like a Pro.
IN633300AV 12/09
IN633300AV 12/09
Visit us at chpower.com
Setup Like a Pro FP260100 — Oilless Air Compressor
Attach
Attach
air hose to regulator outlet.
air hose to regulator outlet.
Adjust
Adjust
regulator knob to recommended tool / accessory
regulator knob to recommended tool / accessory
pressure.
pressure.
TIP:
TIP:
If you are unsure what pressure
If you are unsure what pressure
to use, pressures between 60 psi and 100 psi are
to use, pressures between 60 psi and 100 psi are
typical.
typical.
2
Replacement Parts
Replacement Parts
Quick Connect Reference Chart
Quick Connect Reference Chart
Use a wrench to tighten threads when connecting hose, coupler, and plug.
IMPORTANT: Drain tank after
each use. After tank is drained,
tighten drain valve completely
to help eliminate air leaks.
Compressor
ON / OFF Switch
Regulator
Outlet
Female Coupler
Recoil Air Hose
Universal Chuck
Male Plug
Recoil Air Hose
Part Number: MP268100AV
Universal Chuck
Part Number: HF238300AV
Infl ation Needle
Part Number: SV568200AV
Male Plug
Part Number: HF203300AV
Female Coupler
Part Number: MP333500AV
Raft Nozzle Infl ation Needle
Pressure Regulator
Knob
Tank Gauge
Outlet Gauge
