WL6700 Series
www.chpower.com
For Replacement Parts or Technical Assistance, Call 1-800-543-6400
Please provide following information: Address any correspondence to:
- Model number Campbell Hausfeld
- Serial number (if any) Attn: Customer Service
- Part description and number as shown in parts list 100 Production Drive
Harrison, OH 45030 U.S.A.

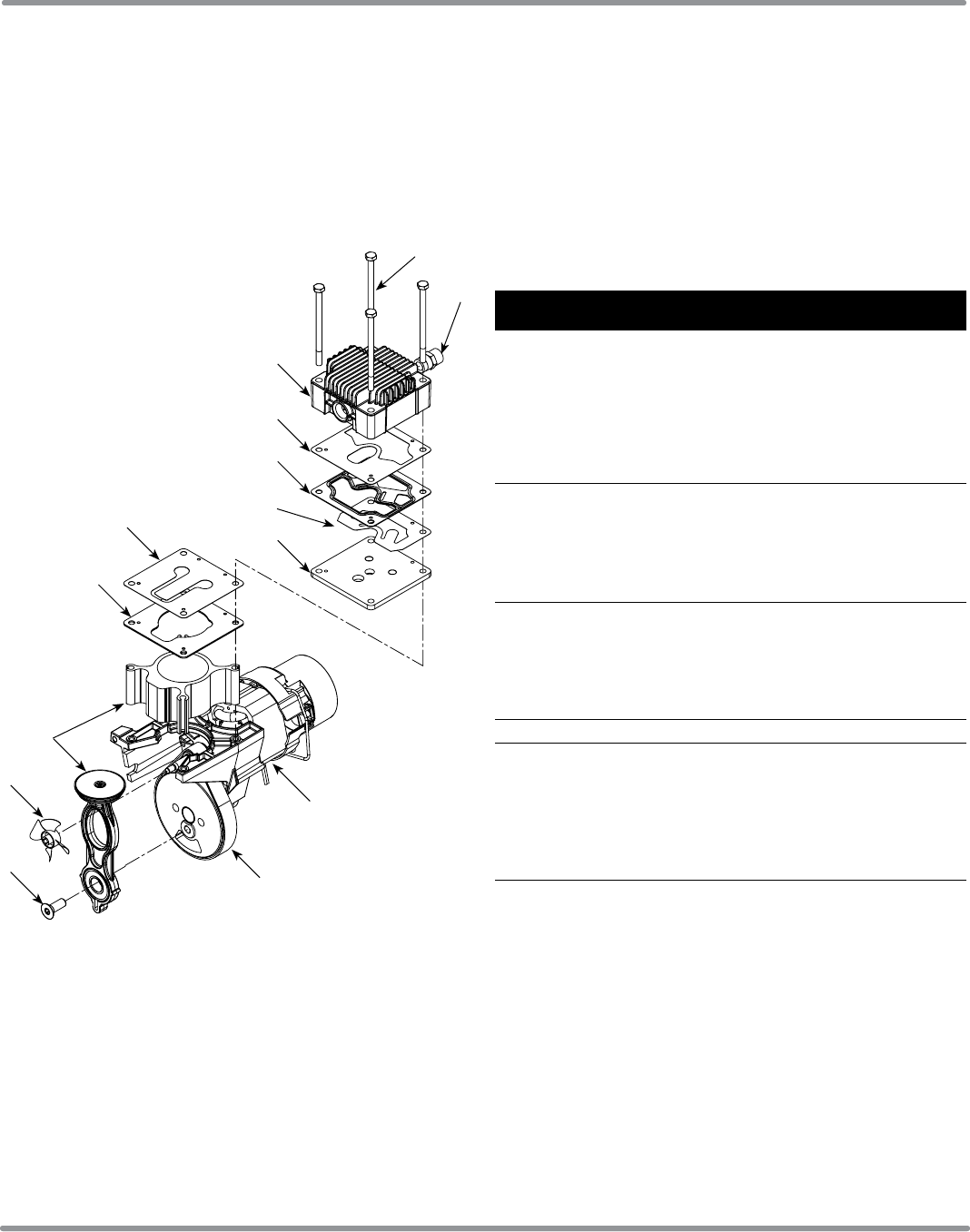

Figure 21 – Repair Parts Illustration for pump, model WL390100
Replacement Parts List for Pump, Model WL390100
1 Motor assembly kit
(Includes #2, 3, 6, 7, 10, 12, & 14) WL019100SJ 1
2 Cylinder gasket ▲ 1
3 Intake valve ▲ 1
4 Valve plate ▲ 1
5 Exhaust valve ▲ 1
6 Head gasket ▲ 1
7 Exhaust valve gasket ▲ 1
8 Head WL010500AV 1
9 Piston assembly (Includes #10) WL211000SJ 1
10 Piston bolt ST071804AV 1
11 Head bolt ● 4
12 Fan WL008400AV 1
13 Compression connector ST159001AV 1
14 Belt kit (Includes #10, 12,
check valve, & ferrules) WL015303SJ 1
REPLACEMENT PARTS KITS
● Head bolt kit
(Set of 4 ea., part #11) WL211100AJ 1
▲ Valve plate kit (Includes #2-7) WL211201SJ 1
TORQUE REQUIREMENTS
Piston Bolt. .. . . . . . . . . . . . . . . . . . . . .350 - 450 in. Ibs.
Head Bolts. . . . . . . . . . . .. . . . . . . . . . .90 - 120 in. Ibs.
Ref. Part
No. Description No. Qty.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
