Chicago Electric 40432 Grinder User Manual


  Open as PDF
of 12

Page 11For technical questions, please call 1-800-444-3353.SKU 40432
Part Description Qty.
1 Holder 1
4 Hanger 1
5 Rubber Ring 1
6 Screw 2
7 Motor Housing 1
8 Carbon Brush 2
9 Stator 1
10 Screw 2
11 Gasket 1
12 Rubber Ring 1
13 Bearing 1
14 Cover 1
15 Screw 2
16 Rotator 1
17 Impeller 1
18 Bearing 1
19 Cover 1
20 Screw 2
21 Flexible Shaft 1
22 Chuck Housing 1
23 Bearing Set* 1
24 Chuck 1
25 Chuck Key 1
26 Power Plug 1
27 Foot Control 1
28  1
29 Plug 1
*Includes 2 Bearings and Shaft
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED


DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY

MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS








Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of
purchase instead.
Note: Some parts are listed and shown for illustration purposes
only, and are not available individually as replacement parts.

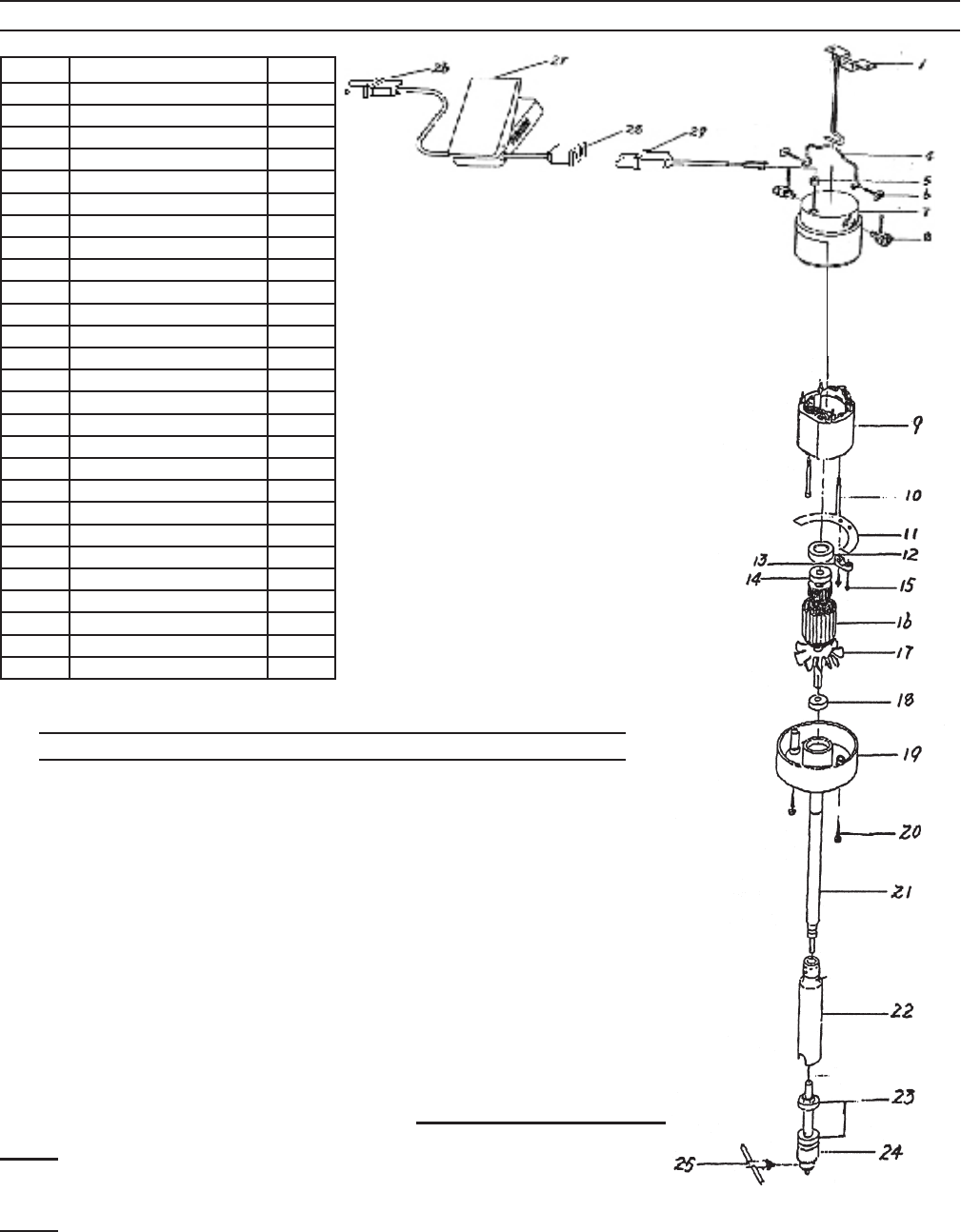

PARTS LIST AND ASSEMBLY DIAGRAM
REV 04c, 06b, 09e
 previous
