Page 7SKU 66433 For technical questions, please call 1-800-444-3353.
SPECIFICATIONS
Electrical Requirements 120 V~ / 60 Hz / 3.9 A
Bulb
500W / 120 V~
Halogen (included)
E229796
UNPACKING
When unpacking, check to make sure
that the item is intact and undamaged. If
any parts are missing or broken, please
call Harbor Freight Tools at the number
shown on the cover of this manual as soon
as possible.
SET UP INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section
at the beginning of this manual
including all text under
subheadings therein before set
up or use of this product.
Risk of accidental
starting; resulting
in serious personal injury.
Turn the Power Switch of the
Light OFF and unplug it from
the electrical outlet before
assembling or making any
adjustments.
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
Deviation from the
assembly
instructions may result in a
risk of re or electric shock.
Slide the Bracket (13) over the Lower 1.
Grip (14), lining the hole in the Brack-
et up with the bolt hole in the Grip.
Insert the Knob (20) through the Con-2.
cave Washer (34) and into the hole.
Remove the Bolt (38) at the top of the 3.
housing and open the Lamp Cover
(24).
Insert the Bulb (27) into the Bulb 4.
Socket (18). Do not touch the Bulb
with your bare hands; oil from skin
will drastically shorten the life span
of the bulb if not cleaned with rub-
bing alcohol and allowed to dry
before use. Handle the bulb with a
soft, clean cloth or clean work gloves
instead.
Close the Lamp Cover (24) and se-5.
cure with the Bolt (38).

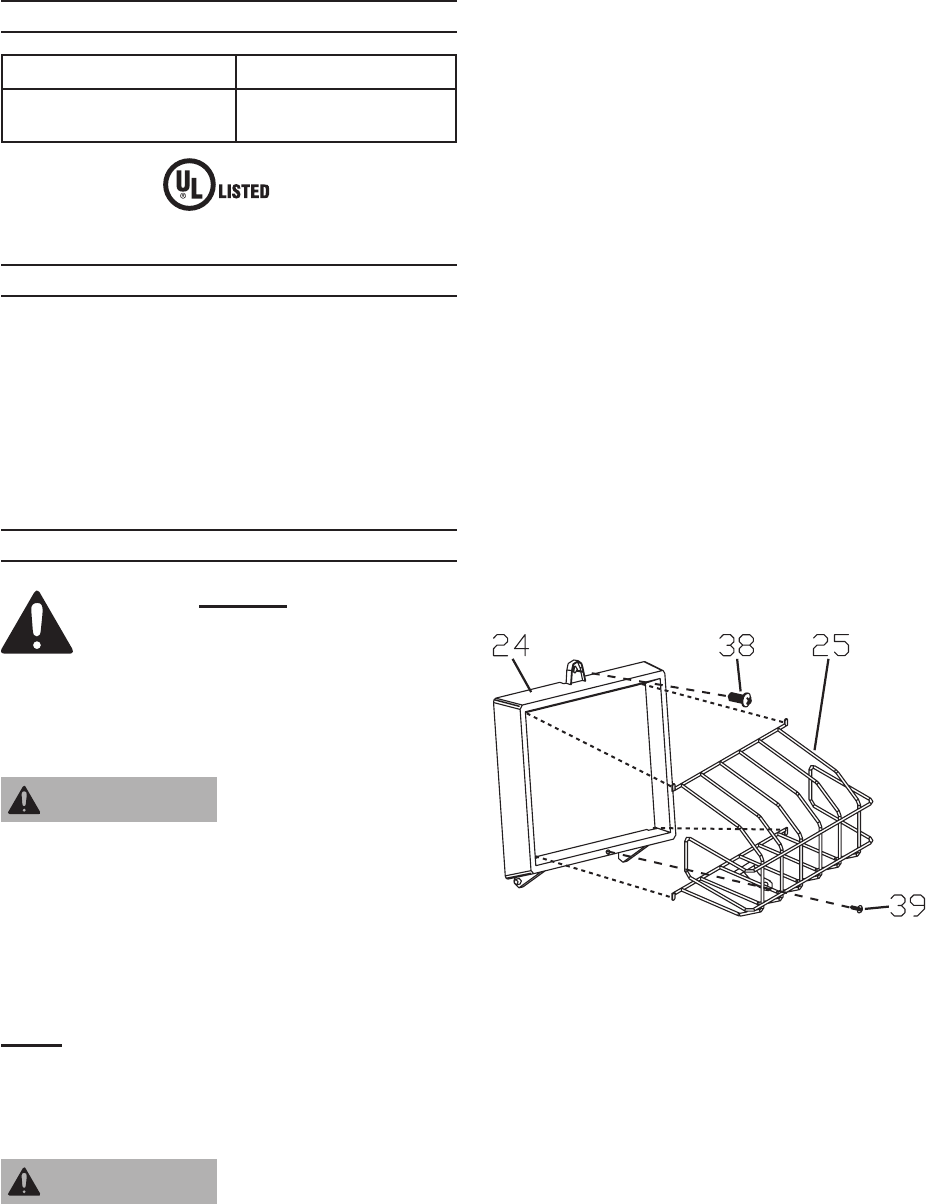

FIGURE A
6. Gently squeeze the Wire Cover (25)
while placing its four tabs into the
Lamp Cover (24). Secure the tab on
the Wire Cover to the Lamp Cover
using the Screw (39). (See Figure A.)
WARNING
WARNING
