Installation Instructions CTA-2536
5
STEP 3
Attaching Wall Arm to Wall Plate
1. Locate the wall arm, six M8 flat washers (40),
six M8 lock washers (50), and six M8 x 16mm
button head screws (60). See Figure 3.
2. Attach wall arm to wall plate (10) as follows:
a. Using the parts (40, 50, and 60) described in
step 1 in the top mounting holes, attach the
wall arm to the wall plate (10).
b. Using the parts (40, 50, and 60) described in
step 1 in the bottom mounting holes, attach
the wall arm to the wall plate (10).
c. Using the M5 Allen key (70), tighten the six
M8 x 16mm button head screws (60) to
secure the wall arm to the wall plate (10).
STEP 4 [REFERENCE ONLY]
Attaching Front Cover
1. Locate front cover and four M4 x 8mm Phillips
head cap screws (shipped with wall arm).
NOTES
The front cover may be partially removed
and reinstalled to conceal power/audio/video
cables after the TV/Mount is installed.
You may remove one or both knockouts on
cover to assist routing to wall through cover.
2. Install the front cover using four M4 8mm
Phillips head cap screws. See Figure 4.
STEP 5 [REFERENCE ONLY]
Connecting NPT Pipe or Nipple to Wall Arm
1. Locate M6 x 6mm set screw and 1-1/2” NPT
pipe or nipple (supplied with TV Mount or
purchased separately).
2. Connect the 1-1/2” NPT pipe or nipple (supplied
with TV Mount or purchased separately) to the
wall arm. See Figure 5.
3. Using the M3 Allen key, install the M6 x 6mm
set screw. Tighten the set screw.
WARNING
Make sure to tighten the M6 x 6mm set screw to
prevent equipment damage or personal injury.

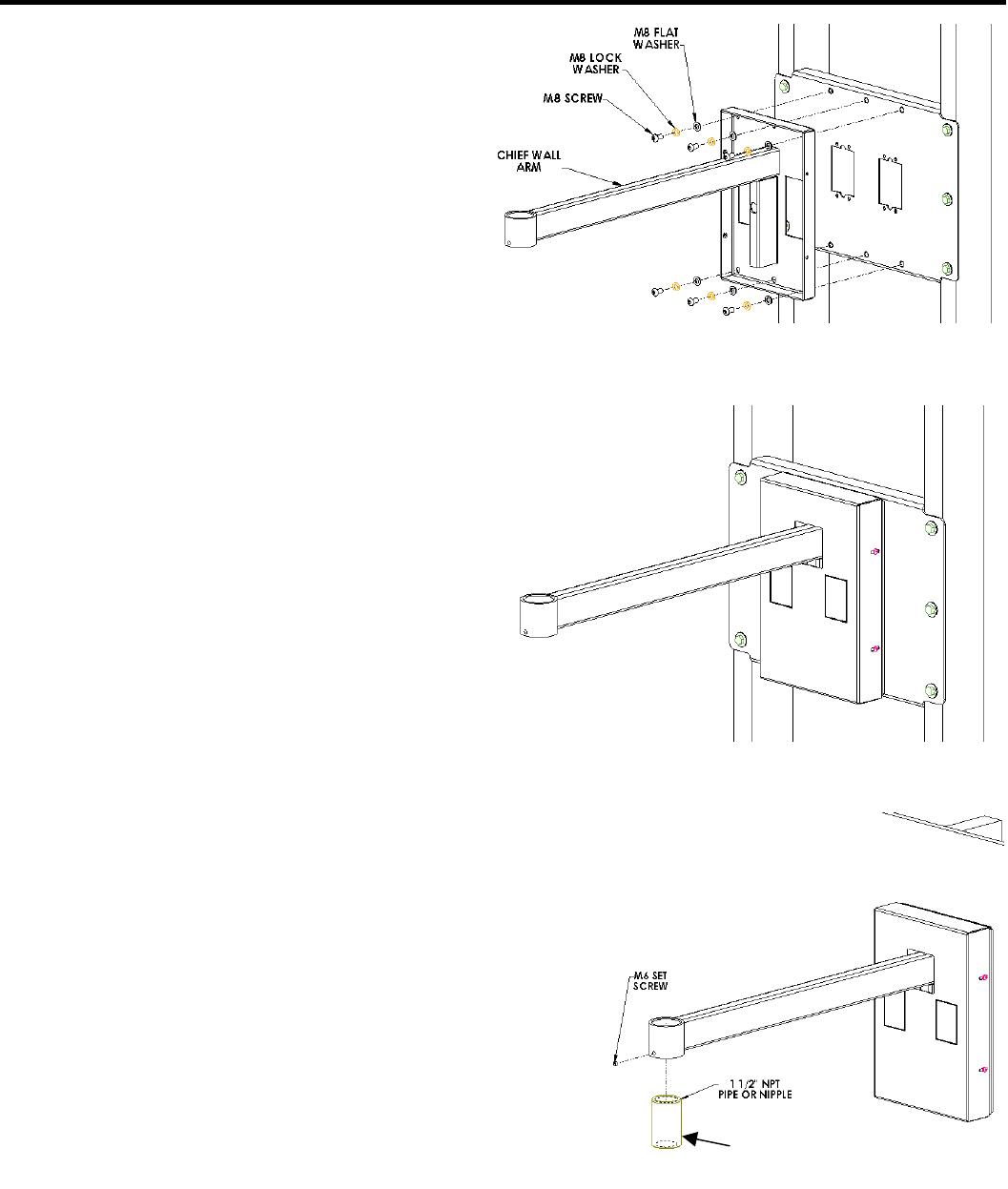

Figure 3. Attach Wall Arm to Wall Plate
Figure 4. Install Cover on Wall Arm
Figure 5. Connect NPT Pipe or Nipple
to Wall Arm
(Supplied with TV Mount
or purchased separately)
