1-16 Cisco 700 Series Router Installation Guide
Router Panels

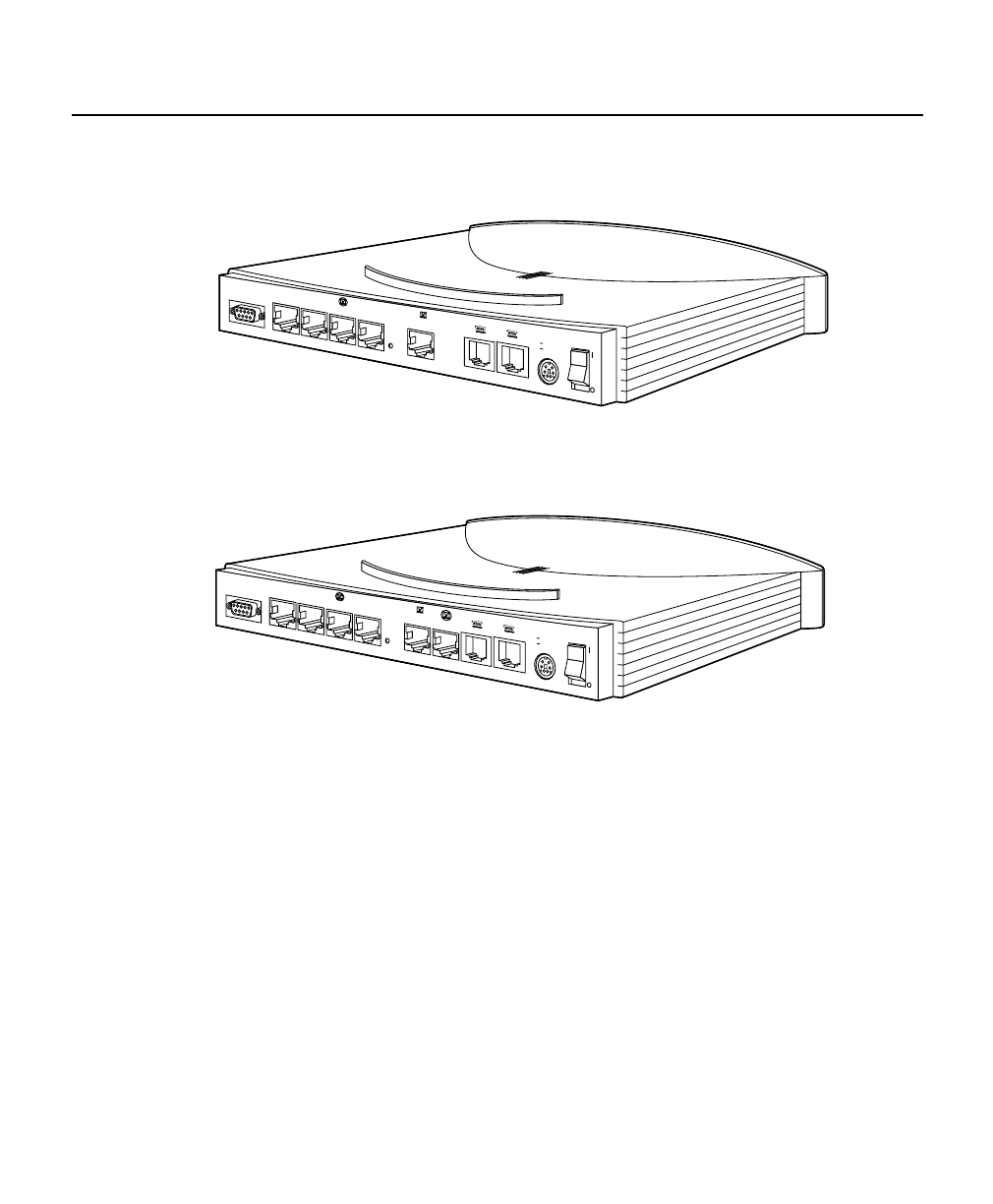

Figure 1-9 Rear Panel, Cisco 775 Router
Figure 1-10 Rear Panel, Cisco 776 Router
H8502
CONFIG
1
+5V ---1.5A +/-5%
-30V--- 0.2A +/-25%
S
0
ISDN S/T
10BASET
CISCO 775
2
3
4
H7861
CONFIG
1
+5V ---1.5A +/-5%
-30V--- 0.2A +/-25%
S
0
NT-1
ISDN U
ISDN S/T
10BASET
CISCO 776
2
3
4
