Cisco Aironet Four-Element, MIMO, Dual-Band Ceiling Mount Omnidirectional Antenna (AIR-ANT2524V4C-R)
78-20577-01
Installing the Antenna
Mounting the Antenna on a Ceiling Tile

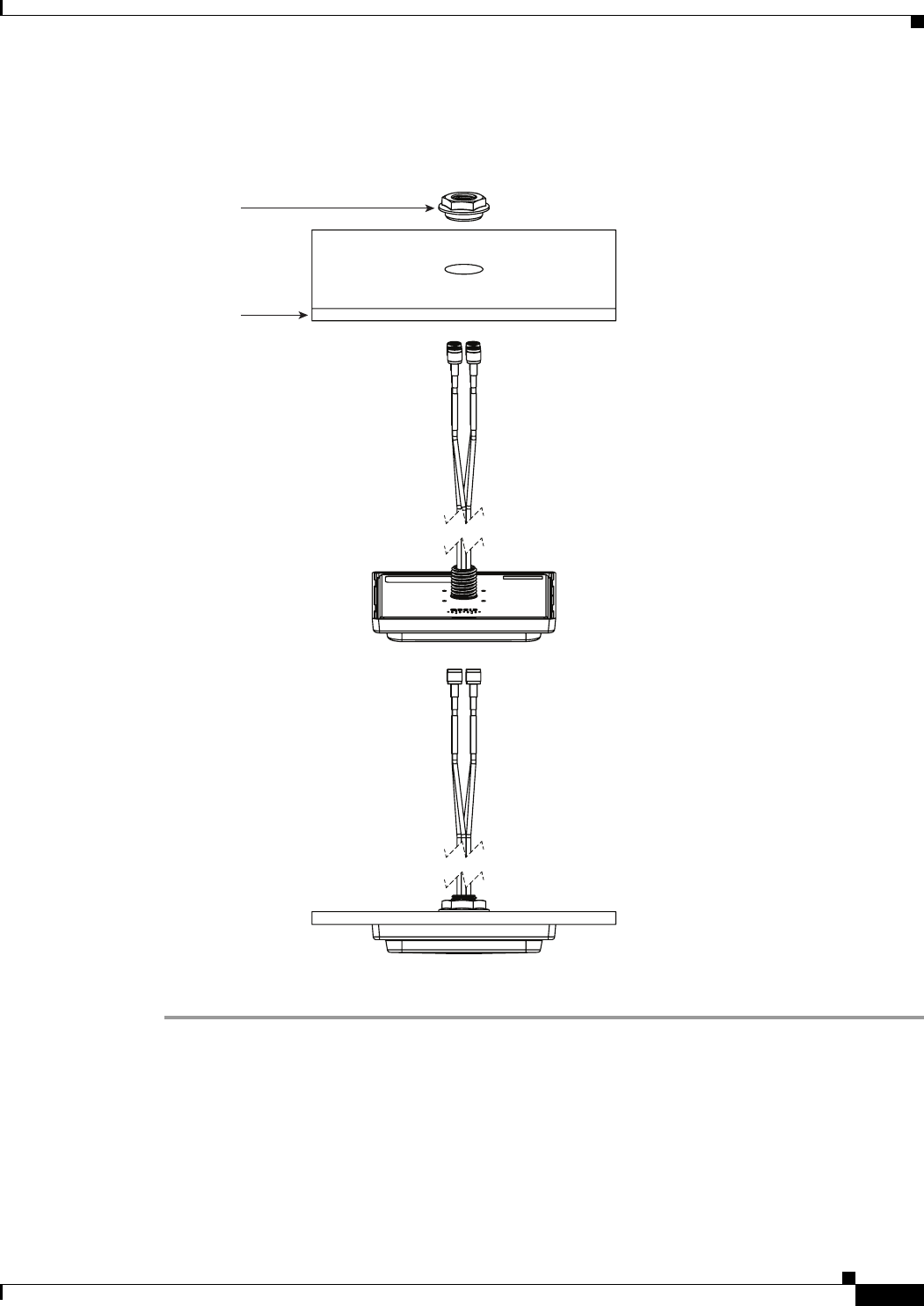

Figure 1 Ceiling Tile Mounting Details
Follow these steps to mount the antenna on a suspended ceiling tile.
Step 1 Mark the location on the ceiling tile where you will mount the antenna.
Step 2 Remove the ceiling tile from the ceiling grids.
Step 3 Use a 1-in. (2.54-cm) hole cutter to create a hole in the ceiling tile.
Step 4 Insert the antenna cables, one at a time, through the hole in the ceiling tile.
Step 5 Insert the antenna cables, one at a time, through the hole in the plastic nut as shown in Figure 1.
330750
Nut
Ceiling Tile
