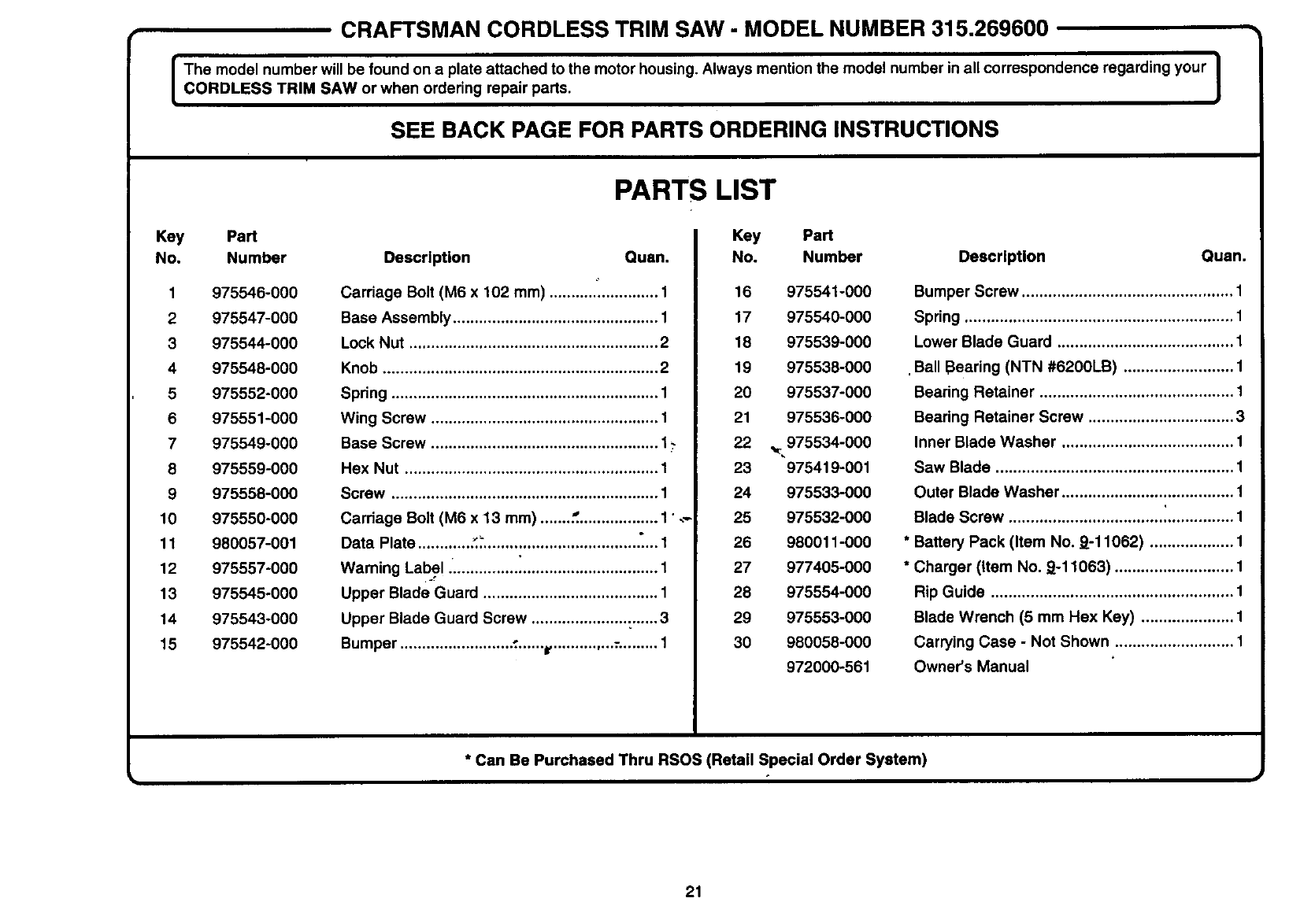

CRAFTSMAN CORDLESS TRIM SAW- MODEL NUMBER 315.269600
The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your
CORDLESS TRIM SAW or when ordering repair pads.
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
]
Key
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Part
Number
975546-000
975547-000
975544-000
975548-000
975552-000
975551-000
975549-000
975559-000
975558-000
975550-000
980057-001
975557-000
975545-000
975543-000
975542-000
PARTS LIST
Description Quan.
Carriage Bolt (M6 x 102 ram) ..........._............. 1
Base Assembly ............................................... 1
Lock Nut ......................................................... 2
Knob ............................................................... 2
Spring ............................................................. 1
Wing Screw .................................................... 1
Base Screw .................................................... 1;
Hex Nut .......................................................... 1
Screw ............................................................. 1
Cardage Bolt (M6 x 13 mm) ........'................... 1' .,.
Data Plate ............ _.,.................................. ",....1
Waming Label. ............... i............................... 1
Upper Blade Guard ........................................ 1
Upper Blade Guard Screw ...................... :...... 3
Bumper .......................... :'"'"r .............. :"........ 1
Key Part
No. Number
16 975541-000
17 975540-000
18 975539-000
19 975538-000
20 975537-000
21 975536-000
22 975534-000
23 975419-001
24 975533-000
25 975532-000
26 980011-000
27 977405-000
28 975554-000
29 975553-000
30 980058-000
972000-561
DescrlpUon Quan.
Bumper Screw ................................................ 1
Spring ............................................................. 1
Lower Blade Guard ........................................ 1
• Ball Bearing (NTN #6200LB) ......................... 1
Bearing Retainer ............................................ 1
Bearing Retainer Screw ................................. 3
Inner Blade Washer ....................................... 1
Saw Blade ...................................................... 1
Outer Blade Washer ....................................... 1
Blade Screw ................................... i............... 1
* Battery Pack (Item No. 9-11062) ................... 1
* Charger (item No. 9-11063) ........................... 1
Rip Guide ....................................................... 1
Blade Wrench (5 mm Hex Key) ..................... 1
Carrying Case - Not Shown ........................... 1
Owner's Manual
* Can Be Purchased Thru RSOS (Retail Special Order System)
21
