Connector
Output socket
2 Set the Output voltage switch to the correct voltage for your device.
The voltage can be between 3.3 and 11V DC and no more than
2100 mA of current. If the exact voltage for your device is not listed
and is less than 11V, try setting the voltage switch to the nearest
voltage that is lower than the voltage for your device. If the device
does not work, disconnect the connector from the device, reset the
voltage switch to the next higher setting, then re-connect. Do not
continue trying higher settings because they may damage your
device or the charger.
Note: The Micro USB tip works with any compatible cell phone.
Note: The DX-UA’s current (mA) must be equal to or greater than the
current your portable device requires.
Remember 1A = 1000mA, 0.5A = 500mA.
Use the following chart to determine the output current from the DX-UA:
Resetting the charger
Caution: If the power light turns off, check the power source. If the
power source is working, the output current may be beyond the AC
charger’s specifications and overload protection has been activated.
To reset the charger:
1 Unplug the DX-UA from the AC outlet and the device you are
powering. Wait 10 seconds.
2 Plug the DX-UA into the AC outlet again. If the indicator remains off,
there may be a problem with the AC charger. Contact Dynex for
assistance.
Specifications
AC adapter input: 100-240V AC, 50-60Hz
AC adapter output: 15V DC, 1.0A
DX-UA input: 12-15V DC
Output rating: 3.3 / 4.2 / 5 / 6.5 / 8.4, or 11.0V DC
DC cord length: 8.2 ft. (2.5 m)
Operation Temperature: 32°F to 113°F (0°C to 45°C)
Storage temp.: -4°F to 140°F (-20°C to 60°C)
Dimensions: 4 × 2.1 × 1.4 inches (10.16 × 5.33 × 3.56 cm)
Plug number and size (diameter)
4.0 mm x 1.7mm
4.75 mm x 1.75 mm
2.35 mm x .75mm
Sony L/M
Sony S/C
Sony F/C
Sony A/P/F
JVC AP-V
Female USB Tip - 5V only
Micro USB Tip - 5V only
Safety warnings and cautions
Warning: To reduce the risk of fire or shock hazard, do not expose
this product to rain or moisture.
Caution: To reduce the risk of electric shock, do not remove the cover
or back. No user serviceable parts inside. Refer servicing to Dynex.
Contact Dynex:
For customer service please call 1-800-305-2204
www.dynexproducts.com
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645
Important safety instructions—Save these instructions
This document contains important safety and operating instructions
for your AC power charger.
Before using your charger, read all instructions and cautionary markings
on the product.
Package contents
• DX-UA charger
• AC adapter
• Center pin positive connectors
• Quick Setup Guide
Note: The center pin connectors are set
to a center pin positive alignment. If
your device needs a center pin negative
alignment, do not use this charger.
Check your device‘s user manual for more
information on what type of alignment
your device requires.

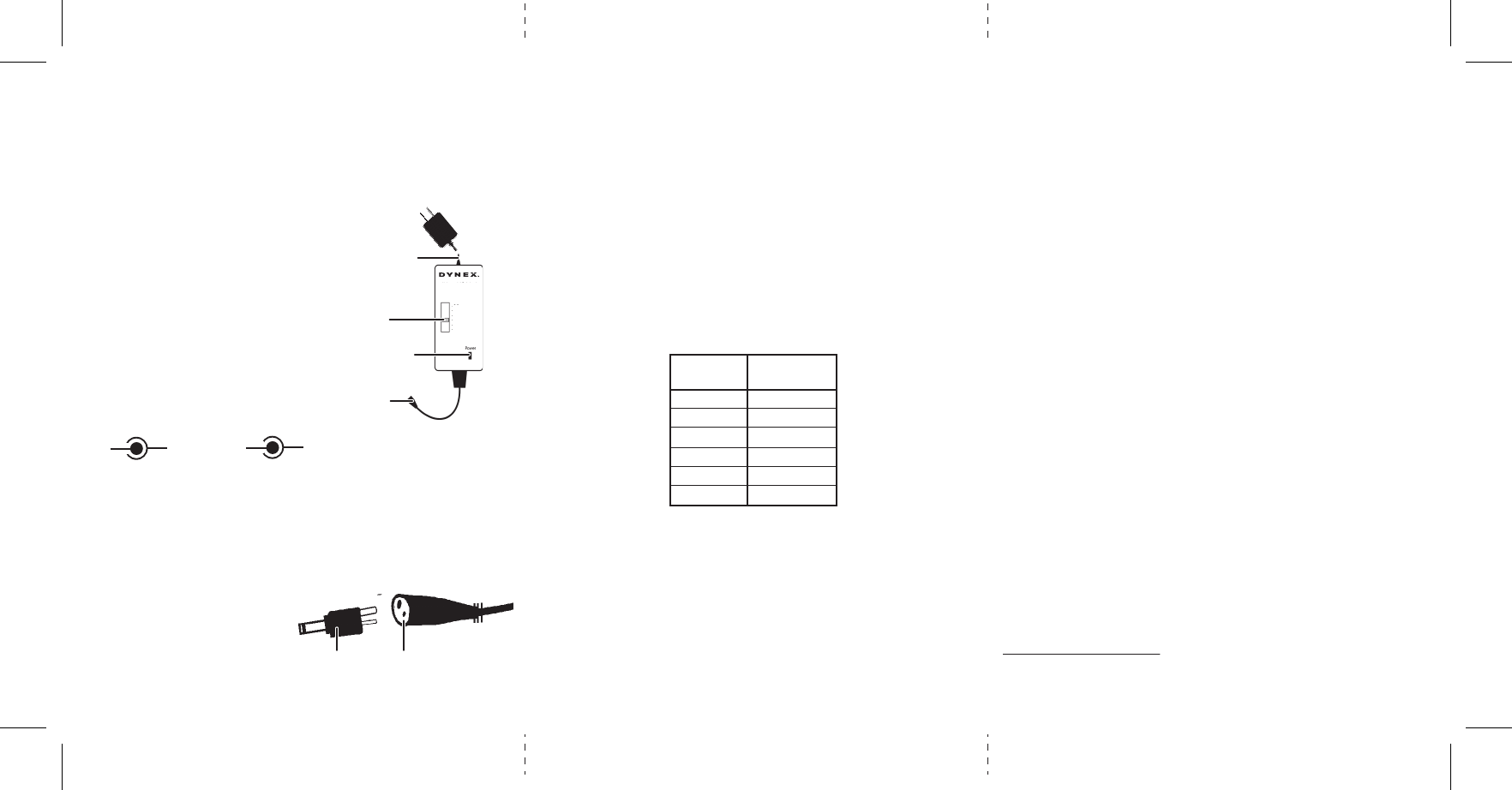

Using a connector
1 Select the appropriate connector and attach it to the output socket
at the end of the output cord. To identify the correct connector for
your device, see the Device Compatibility List. If you are not sure,
use the connector that fits the power jack of your device. The two-pin
connectors fit into the socket only one way.
One pin is larger than the other.
Note: One pin is larger than
the other. Do not force the pins.
Check your device‘s user manual
for information regarding the input voltage your device requires.
Universal AC Adapter
Model SUP-60LX
3.3v
4.2v
5.0v
6.5v
8.4v
11. 0v
Input
Output voltage
switch
Output
socket
Power light
+ -
OK
Positive alignment
- +
No
Negative alignment
Output Voltage
Max. Current
3.3V 2.1A
4.2V 2.0A
5.0V 1.9A
6.5V 1.7A
8.4V 1.6A
11.0V 1.5A
