SKU 93656 Page 6For technical questions, please call 1-800-444-3353.
Operating the Nailer
1. Attach the Nailer to the air supply at the Air Inlet (22). Start your compressor and check
the pressure making sure it is set at the recommended 90 PSI and not to go over the
maximum 90 PSI.
2. To fire, place the nose of the Nailer on the workpiece. The Nailer should not fire if the
nose is not depressed. Once depressed, gently and briefly squeeze the Trigger (42)
once. Do not fire repeatedly. Pins could bounce off of one another, damaging the work
piece or causing PERSONAL INJURY.
Loading Pin Nails
ALWAYS WEAR ANSI APPROVED IMPACT SAFETY GOGGLES WHEN
RELOADING OR DOING ANY OTHER MAINTENANCE ON THIS TOOL. Other
people in the work area must also wear ANSI approved impact safety goggles.
Warning! Make sure the Nailer is not attached to the air hose whenever loading the tool.
1. Press the Magazine Latch (23) up and slide the Magazine (57) back.
2. If you are using a different pin length than previously:
a. Remove all pins from inside the nailer.
b. Slide the Pin Length Selector (64) to the appropriate length setting. See
Figure 1
.
3. Holding the nailer upside-down, insert the pin nails into the slot noted above.
4. Close the Magazine (57) making sure the Magazine Latch (23) clicks shut.
See
Figure 1
.
Operation (continued)

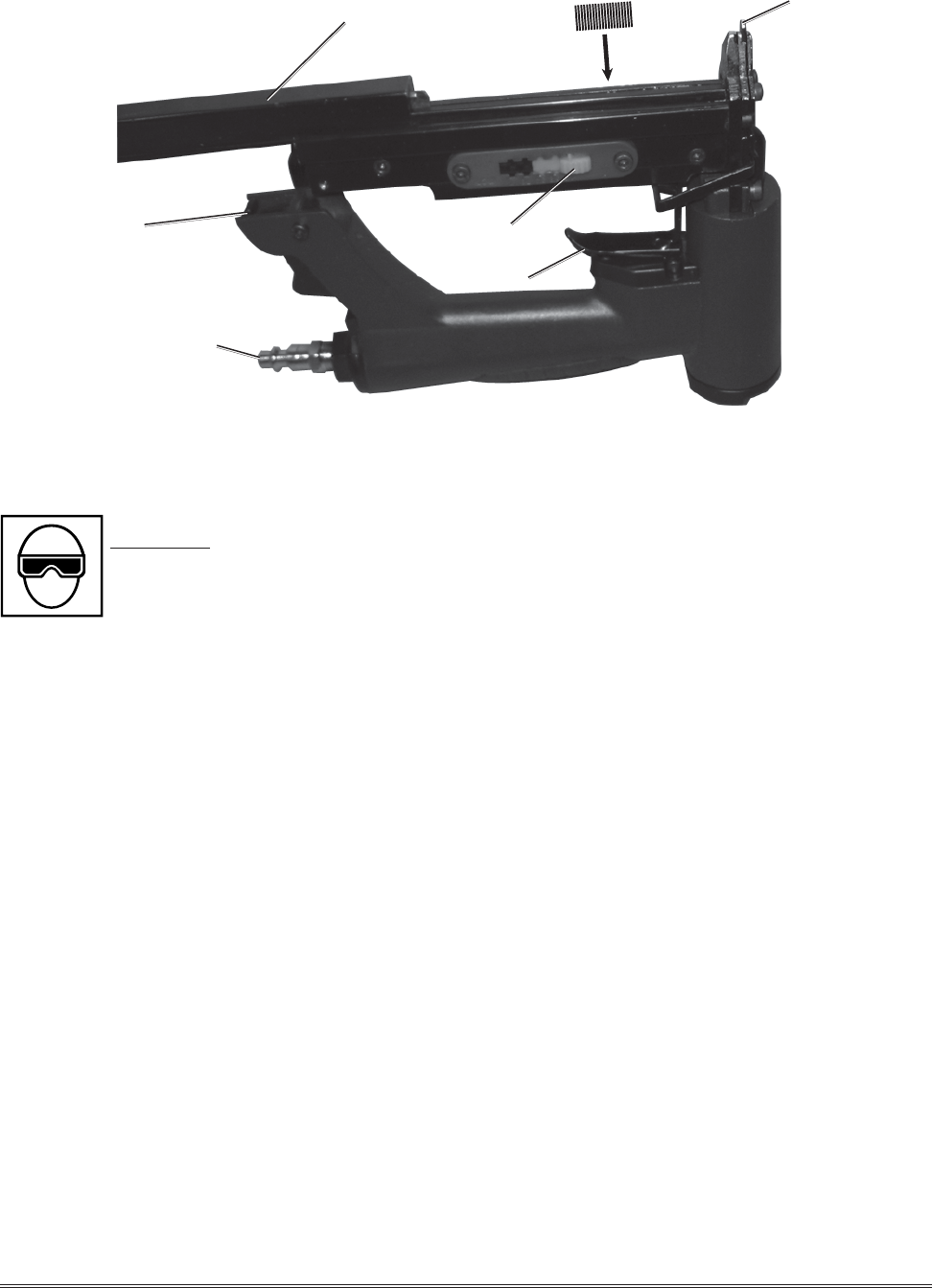

FIGURE 1
Air Inlet
(22)
Magazine (57)
Safety
(48)
Trigger (42)
Magazine
Latch (23)
Insert
Pins Here
Pin Length
Selector (64)
