Nail holder
Magazine
3
1
2
1-3/4" 2" 2-1/4"
2-3/8" 2-1/2"
3-1/4" 3-1/2"
2-3/4" 3"
Magazine Cover
(3) Place the nail coil into the magazine.
Uncoil enough nails to reach the driving hole.
Magazine
Nail holder
Nails
(4)
1
Uncoil enough nails to reach the driving hole.
2
Insert the fi rst nail into the driving hole and the
second nail between the two pawls of the feeder.
3
Fit the nail heads in the guide slot.
Nail Guide
First nail
3
1
2
4
2
Pawl
Pawl
Driving hole
Guide slot
4
Pulling the nails to the right, swing the nail guide
closed.
(5) Close the magazine cover fi rst and swing the nail
guide closed.
(6) Lock the knob correctly.

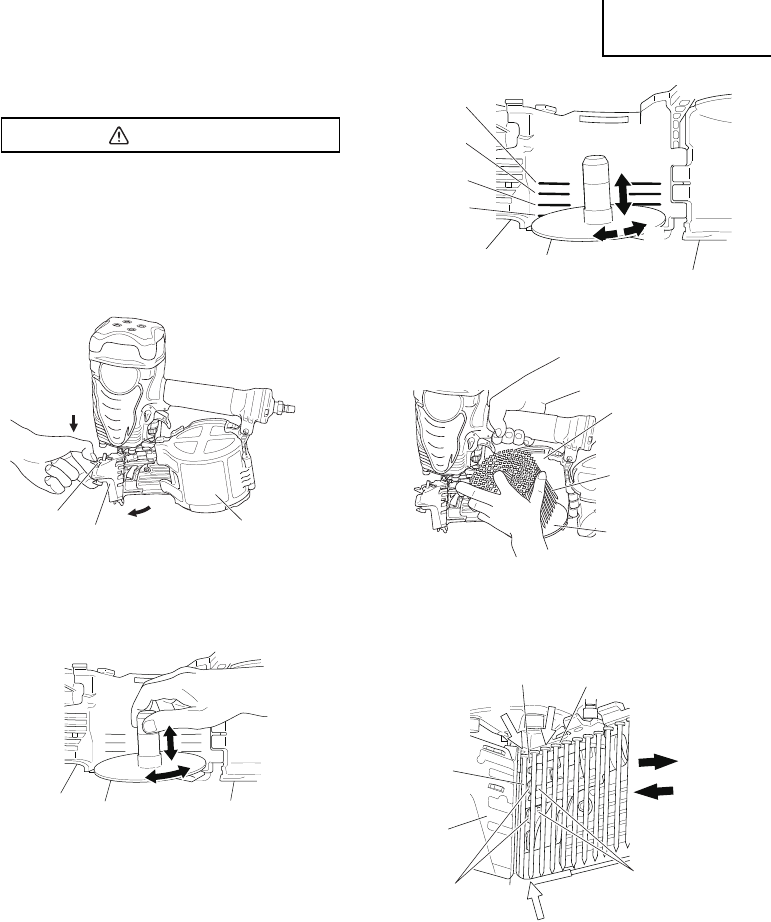

LOADING NAILS
WARNING
●
When loading nails into Nailer,
1) do not pull trigger;
2) do not depress push lever; and
3) keep Nailer pointed downward.
(1) Grip the nail guide and knob with fi nger.
Press the knob down and swing the nail guide open.
And open the magazine cover.
Knob
Nail guide
Magazine cover
(2) Adjust the position of the plate according to the nail
length.
The nail will not feed smoothly if the plate is not
correctly adjusted.
Magazine
Nail holder
Magazine cover
NOTE: Before loading nails in the magazine, adjust
the plate. If the magazine cover is forcibly
closed without adjusting the plate correctly,
the nail holder may be damaged.
1
Turn the nail holder about 90 degrees
counterclockwise.
2
Slide in vertical direction possible.
Lift or lower the nail holder to accept diff erent
length nails.
3
Adjust the plate to the nail length reference points
on the magazine cover and turn the nail holder 90
degrees clockwise until you hear "click".
