Welcome
This product been carefully engineered and
manufacfured to give you safe and reliable
dependable operation. Please read this manual
thoroughly before operating your new Lucas
Cordless Screwdriver, as it contains all of the
information you need to become familiar with its
features and obtain maximum performance.
Please retain this manual for future reference.
GENERAL SAFETY INSTRUCTIONS
WARNING! READ ALL INSTRUCTIONS
BEFORE USE.
These instructions are for your own personal
safety. Please observe them to protect yourself
against electric shock or other injury.
Work Area
1. Keep your work area clean and well lit.
Cluttered benches and dark areas invite
accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gasses, or airborne dust.
Power tools create sparks which may ignite
dust or fumes.
3. Keep children and others away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
Your Lucas Cordless Screwdriver has an integral
battery and must be recharged only with the
charger supplied. Do not use another charger as
this can create a fire risk.
Personal Safety
1. Stay alert, watch what you are doing , and use
common sense when operating a power tool.
Do not use the tool whilst tired or under the
influence of drugs, alcohol, or medication. A
moment of inattention whilst operating power
tools may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or
jewellery. Contain long hair. Keep your hair
and clothing away from moving parts.
3. Avoid accidental starting. Carrying the tool
with your finger on the trigger or covering the
tool with working materials can result in
unexpected starting and personal injury.
4. Do not over-reach. Keep a proper footing and
balance at all times, particularly if working
high up or on ladders.
5. Always wear eye protection and ensure that
you keep your hands away from work areas
that could result in injury as a result of
accidently slipping with the tool.
Tool use and care
1. Use clamps to secure and support the work
piece. Holding the work piece by hand or
against your body is dangerous and may lead
to loss of control.
2. Do not force the tool. Although powerful, there
are applications that may be unsuitable for
your Lucas Cordless Screwdriver. Use the
correct tool for the job. If in doubt, ask your
local retailer for advice.
3. Do not use the tool if the switch does not turn
it on or off reliably and predictably.
4. Store all tools out of the reach of children.
5. Maintain tools with care. Keep screw bits
clean and replace any that are chipped or
damaged. Make sure that you select a screw
bit that is the appropriate size and shape for
the screw head that you are working with.
6. Check for misalignment or binding of moving
parts, breakage of parts, and any other condition
that may affect the operation of the tool. If
damaged, have the tool serviced before use.
7. Use only accessories that are sold for the
specific applications of cordless screwdrivers
of this type. Accessories that may be suitable
for one tool may create a risk of injury when
used with another tool.
Service
This tool must be serviced only by qualified repair
personnel. Service or maintenance performed by
unqualified personnel may result in a risk of
injury and will invalidate your warranty.
SPECIFIC SAFETY RULES
1. Hold your Lucas Cordless Screwdriver by the
insulated handle only. This ensures safe
operation when doing a job where a screw
may contact hidden wiring. Contact with a
“live”wire wire will also make exposed metal
parts of the tool ”live” and result in an electric
shock.
2. Keep hands clear of moving parts.
3. Screw driver bits can become sharp and
burred during use. Handle them carefully and
safely dispose of damaged bits. Replace
immediately with recommended spares.
4. Always wear protective safety glasses when
operating power tools. Wear a face mask
when the environment is dusty.

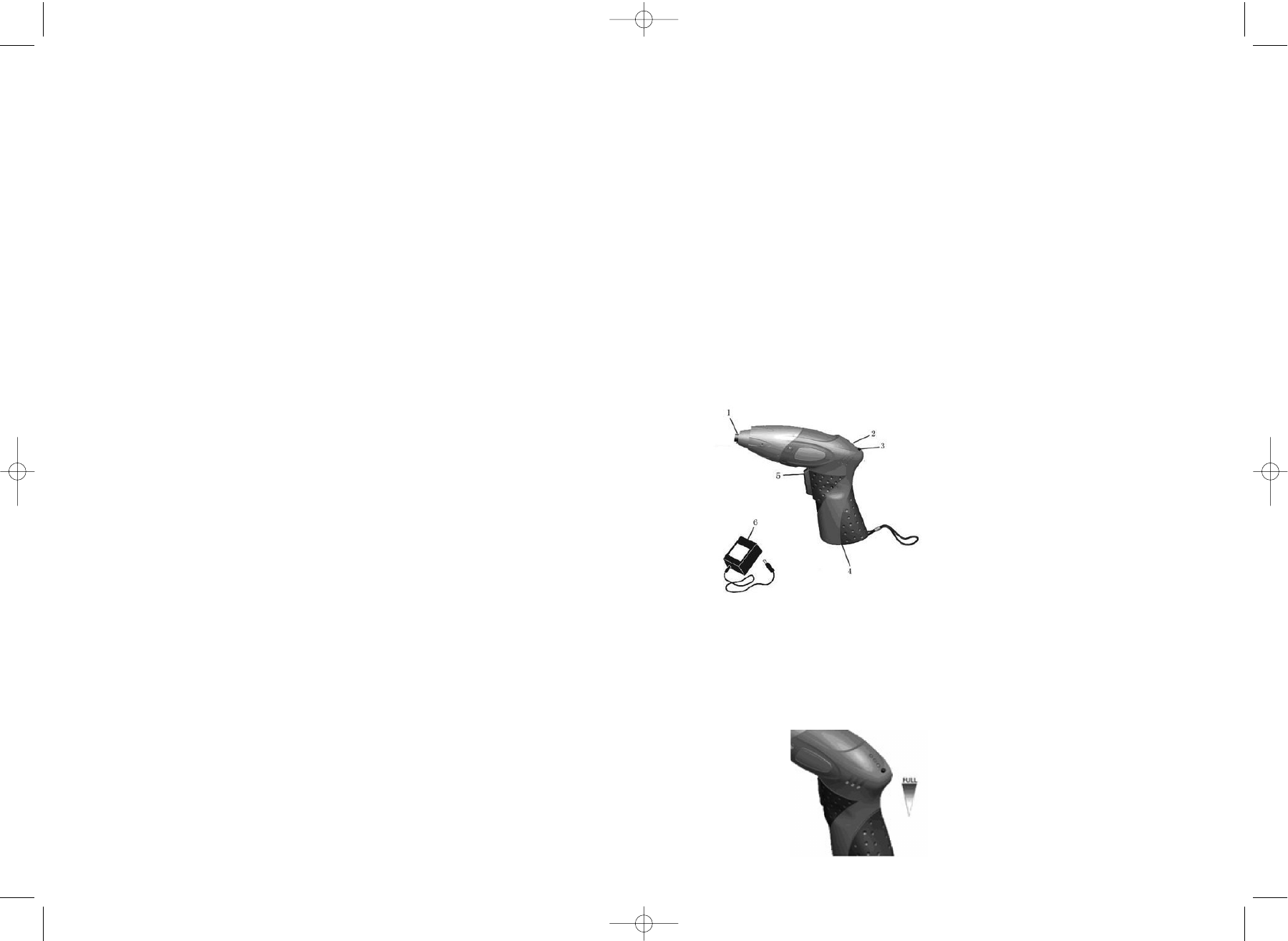

Controls and Components:
1. Keyless Chuck
2. LED Battery Indicator Lights
3. LED Battery Level lndicator Button
4. Charging Port
5. Forward/Reverse Switch
Accessories:
6. AC adaptor
Charging the Battery:
1. Place the tool on a clean, dry surface within 3
feet (1 meter) of a mains wall socket. Insert
the AC adaptor tool charging plug into the port
located on the base of the tool.
2. Plug the AC adaptor into the mains wall socket.
3. Allow 3 to 5 hours for the battery to become
fully charged.
4. After charging, remove the mains plug from
the wall socket and disconnect the tool from
the charger.
5. The LED battery level indicator will show you
the amount of charge that you have in the
battery.
6. When all 3 lights (red, yellow and green) are
illuminated, the battery is functioning at full
capacity.
7. When 2 lights (yellow and red) are illuminated,
the battery capacity is beginning to diminish.
9. When only 1 light (red) is illuminated, this
indicates that the battery capacity is low and
the tool needs to be recharged.
Operation:
1. lnsert the bit into the chuck until it snaps into
place.
2. Grasp the tool firmly with both hands, align
the bit with the screw and press it firmly into
the screw.
3. Start the tool by squeezing the
Forward/Reverse trigger switch
4. Press the top of the switch to turn the screw
in. Press the bottom of the switch to take the
screw out.
Troubleshooting Tips:
Screwdriver does not work?
• Press the black button below the LED battery
level indicator display to ensure that the tool
is fully charged.
