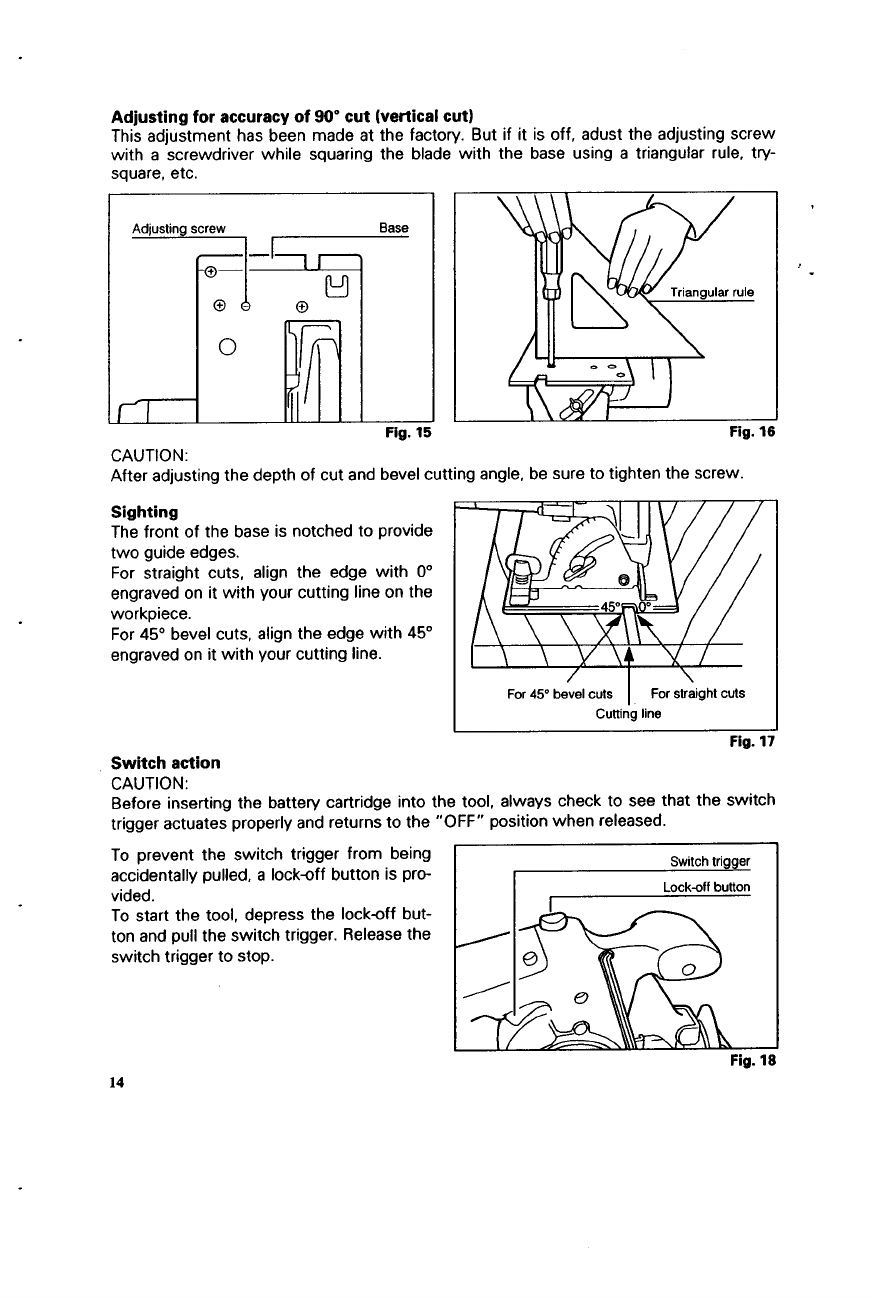

Adjusting for accuracy of
90"
cut (vertical cut)
This adjustment has been made
at
the factory. But if it is off, adust the adjusting screw
with
a
screwdriver while squaring the blade with the base using
a
triangular rule, try-
square, etc.
Base
I
Fig.
15
CAUTION:
\T
Triangular rule
After adjusting the depth of cut and bevel cutting angle, be sure to tighten the screw.
Sighting
The front of the base is notched to provide
two guide edges.
For straight cuts, align the edge with
0"
engraved on it with your cutting line on the
workpiece.
For
45"
bevel cuts, align the edge with
45"
engraved on
it
with your cutting line.
For
45'
bevel
cuts
I
For stright cuts
Culting line
Fig.
17
Switch action
CAUTION:
Before inserting the battery cartridge into the tool, always check to see that the switch
trigger actuates properly and returns to the "OFF" position when released.
To
prevent the switch trigger from being
accidentally pulled,
a
lock-off button
is
pro-
vided.
To start the tool, depress the lock-off but-
ton and pull the switch trigger. Release the
switch trigger to stop.
Fig.
18
14
