Makita JR180DZ Cordless Saw User Manual


  Open as PDF
of 5

4 Model JR140DWA
4 Model JR140DZ
4 Model JR180DWB
4 Model JR180DZ
Item No. Description Type 1 Type 2 Type 3
18
Stop Ring E-3
961017-7 - - - - -
See Change
on Tool-less
Blade Change
System(Service
Change # 4)
20
Pin 4
268044-8 - - - - -
22
Shoe Supporter
344813-2 344925-1
Serial # JR140DWA/JR140DZ
~ 3400A 3401A ~
Serial # JR180DWA/JR180DZ
~ 22912A 22913A ~
Above parts are completely interchangeable as a set.

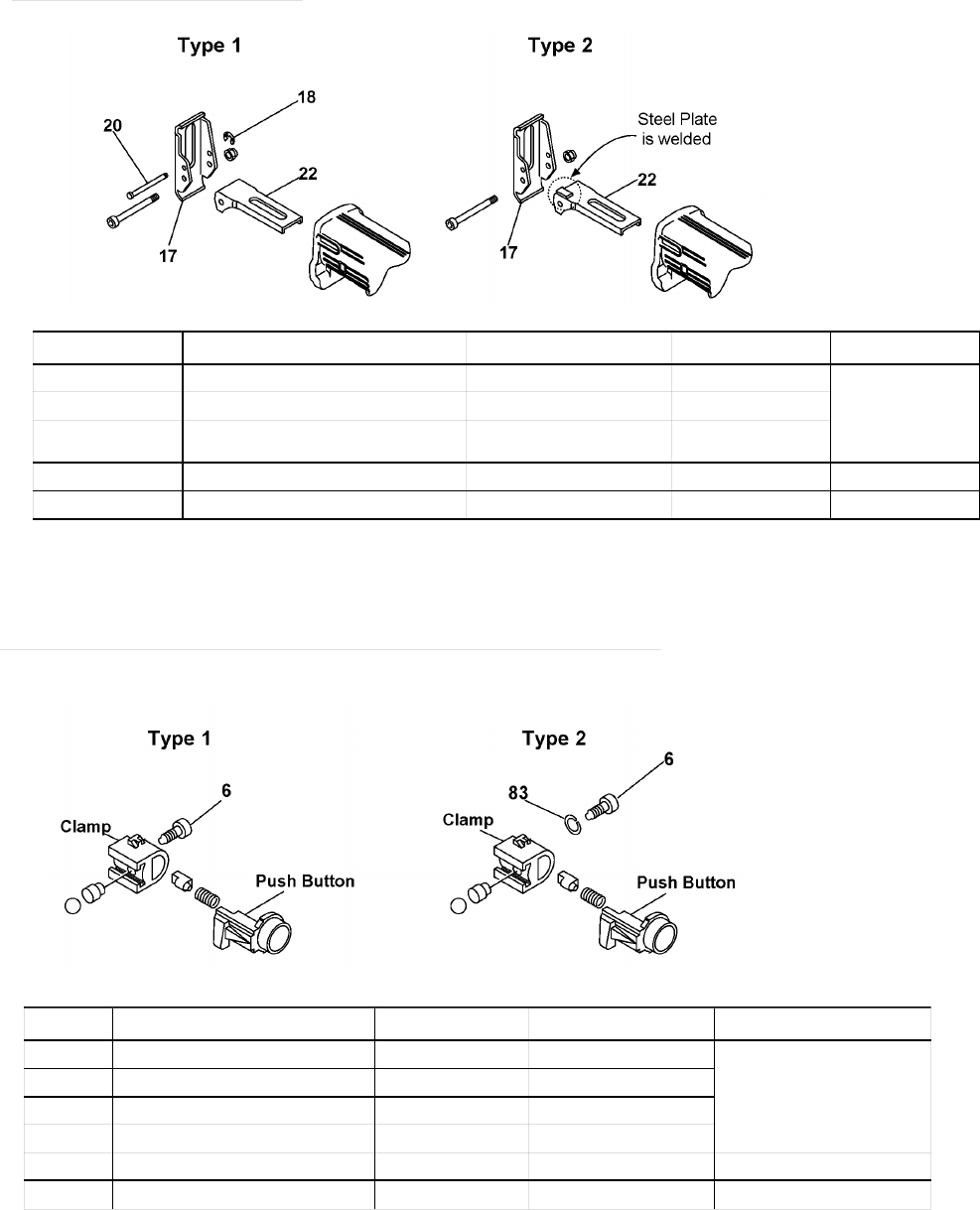

2. Modification of Shoe Supporter.
3. Change on Torx Socket Head Bolt M5X10 and Addition of Spring Washer 5.
Item No. Description Type 1 Type 2 Type 3
6
Torx Socket Head Bolt M5X10
266247-8 266272-9
See Change
on Tool-less
Blade Change
System (Service
Change #4)
78
Flat Washer 5
941102-2 - - - - -
79
Spring Washer 5
942101-7 - - - - -
83
Spring Washer 5
- - - - - 267758-6
Serial # JR140DWA/JR140DZ
~ 4312A 4313A ~
Serial # JR180DWB/JR180DZ
~ 24880A 24881A ~
Above parts are completely interchangeable as a set.
