Pass Lead wires from Motor
housing through the notch of
Handle.

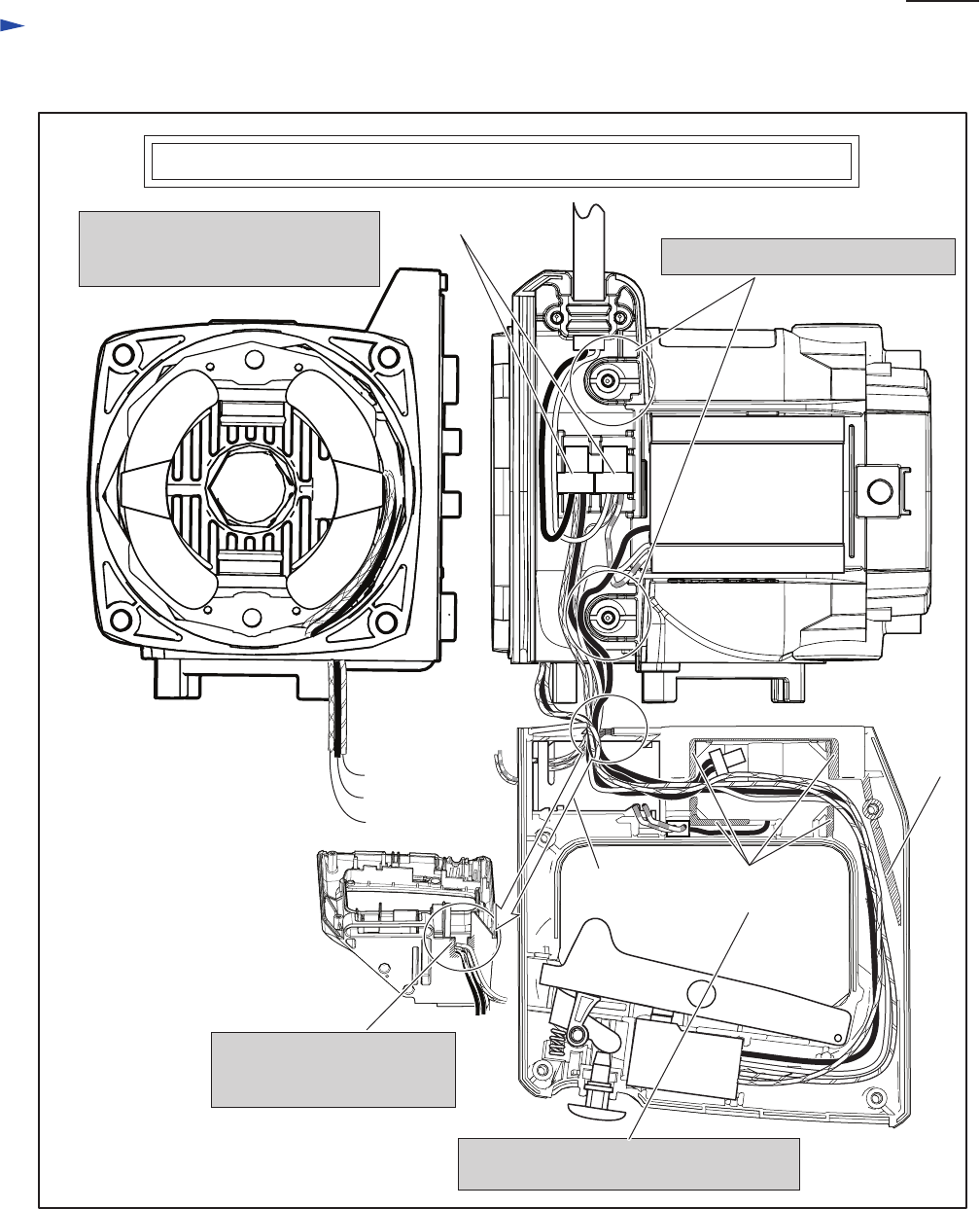

Wiring in Motor Housing and Handle for 110 - 127V area other than UK
Pass Lead wires through ribs as illustrated.
Do not put their Lead wires on the ribs.
Controller
Insulated Terminal
Field Lead wires
* (orange)
* (black)
* (yellow)
Do not put Lead wires on these ribs.
ribs for Laser
switch unit
rib
Fig. D-2E
Field lead wires have to be tightened
in Motor housing so as not to touch
Armature.
Wiring diagram
