Laser circuit

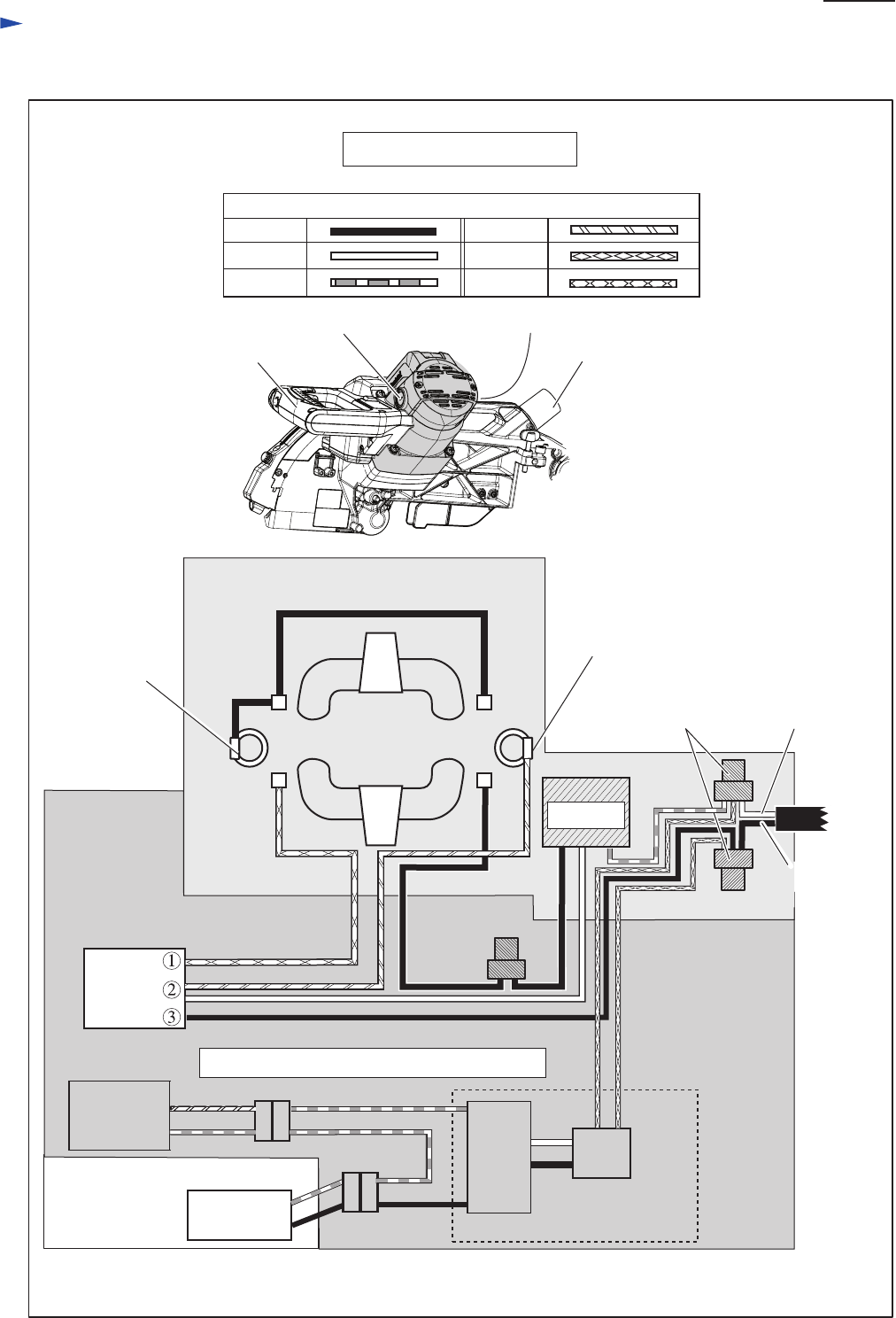

Circuit diagram
Field
(viewed from
Armature gear side)
Circuit
plate
Trans-
former
Laser switch
unit
Power supply circuit
Laser section exclusively for LS1016L
Motor housing
Blade case
Handle cover
and
Handle section
Main
switch
Color index of lead wires' sheath
110-127V area except UK
Black
White
Red
Orange
Blue
Yellow
Controller
Insulated
terminal
Insulated terminal
Brush holder of
Handle side
Brush holder of
Dust nozzle side
Handle
Dust nozzle
Brush holder Brush holder
Fig. D-1E
Blue is used for
some countries.
Brown is used for
some countries.
P 31/ 37
