Carrying tool
1
011300
011247

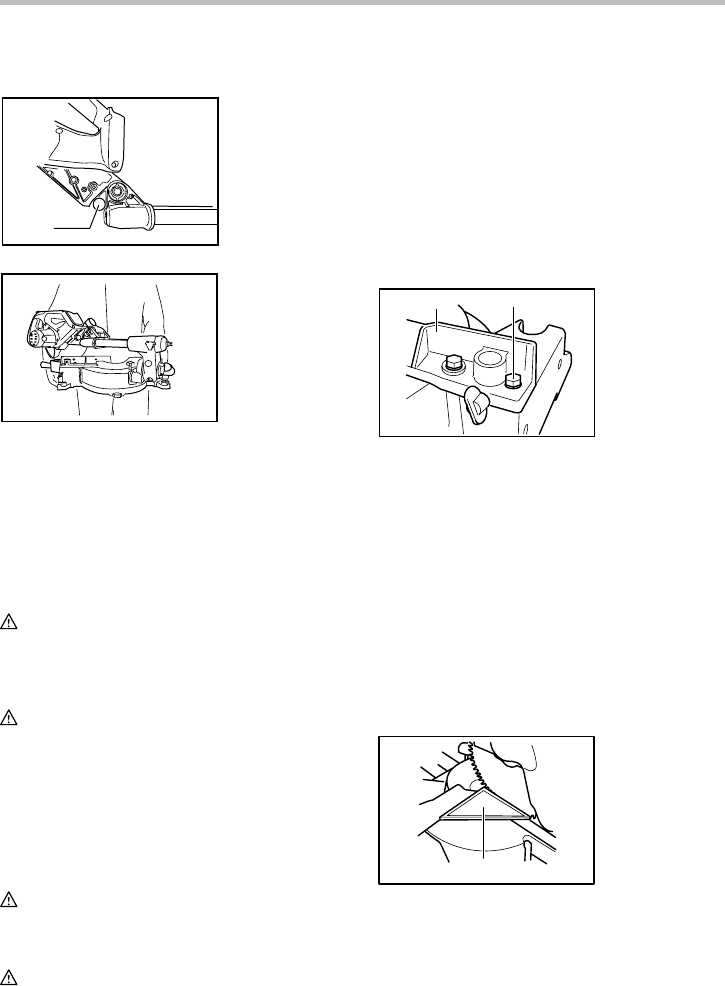

Make sure that the battery cartridge is removed. Secure
the blade at 0° bevel angle and the turn base at the full
right miter angle position. Secure the slide poles after
pulling the carriage toward the guide fence fully. Lower
the handle fully and lock it in the lowered position by
pushing in the stopper pin.
Carry the tool by holding both sides of the tool base as
shown in the figure. If you remove the holders, dust bag,
etc., you can carry the tool more easily.
CAUTION:
• Always secure all moving portions before carrying
the tool. If portions of the tool move or slide while
being carried loss of control or balance may occur
resulting in personal injury.
WARNING:
• Stopper pin is only for carrying and storage
purposes and should never be used for any
cutting operations. The use of the stopper pin for
cutting operations may cause unexpected
movement of the saw blade resulting in kickback
and serious personal injury.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before attempting to
perform inspection or maintenance.
WARNING:
• Always be sure that the blade is sharp and
clean for the best and safest performance.
Attempting a cut with a dull and /or dirty blade may
cause kickback and result in a serious personal
injury.
NOTICE:
• Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may
result.
Adjusting the cutting angle
This tool is carefully adjusted and aligned at the factory,
but rough handling may have affected the alignment. If
your tool is not aligned properly, perform the following:
1. Miter angle
12
002242
Push the carriage toward the guide fence and
tighten two clamp screws to secure the carriage.
Loosen the grip which secures the turn base. Turn
the turn base so that the pointer points to 0° on the
miter scale. Then turn the turn base slightly
clockwise and counterclockwise to seat the turn
base in the 0° miter notch. (Leave as it is if the
pointer does not point to 0°.) Loosen the hex bolts
securing the guide fence using the socket wrench.
Lower the handle fully and lock it in the lowered
position by pushing in the stopper pin. Square the
side of the blade with the face of the guide fence
using a triangular rule, try-square, etc. Then
securely tighten the hex bolts on the guide fence in
order starting from the right side.
1
002209
Make sure that the pointer points to 0° on the miter
scale. If the pointer does not point to 0°, loosen the
screw which secures the pointer and adjust the
pointer so that it will point to 0°.
1. Triangular rule
1. Guide fence
2. Hex bolt
1. Stopper pin
