OM-181 712 Page 11
4-4. Connecting WC24 To A Millermatic 200 Or Spoolmate 200
To connect WC24 to a MIllermatic 200 or Spoolmate 200 use Adapter Cord
Kit 042 236.
NOTE

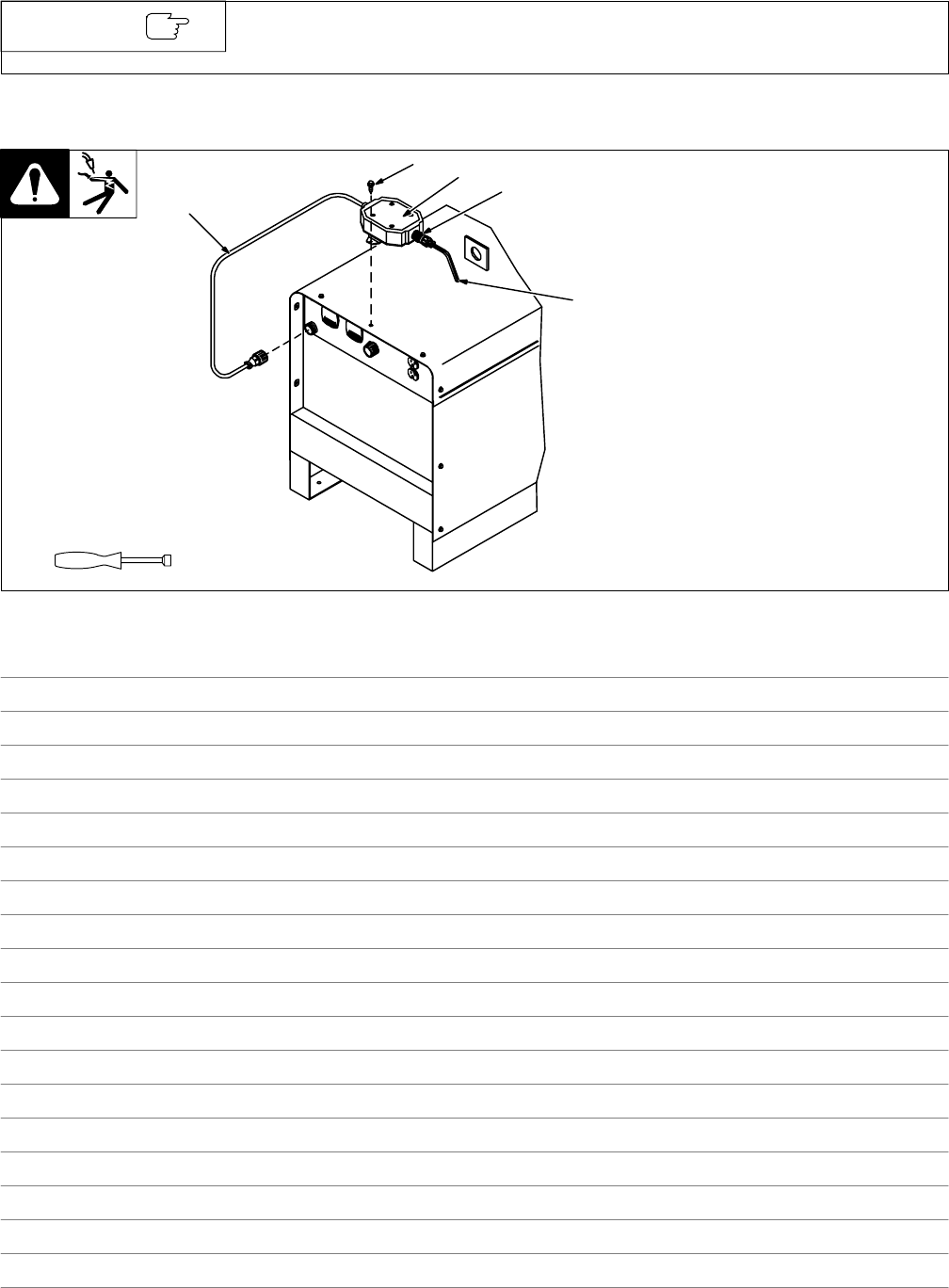

4-5. Weld Control Connections
Ref. 151 355
1 14-Pin Plug PLG4 And
Interconnecting Cord
Insert plug into 14-socket recep-
tacle on welding power source, and
tighten threaded collar.
2 Welding Power Source Top Or
Side Panel Screw
Install unit onto welding power
source.
3 Gun Control Receptacle
4 Gun/Feeder Control Cord And
10-Pin Plug
Insert 10-pin plug from gun/feeder
into receptacle, and tighten
threaded collar. (See gun/feeder
Owner’s Manual).
5 Rating Label Location
Tools Needed:
1/4 in
2
1
3
4
5
Notes
