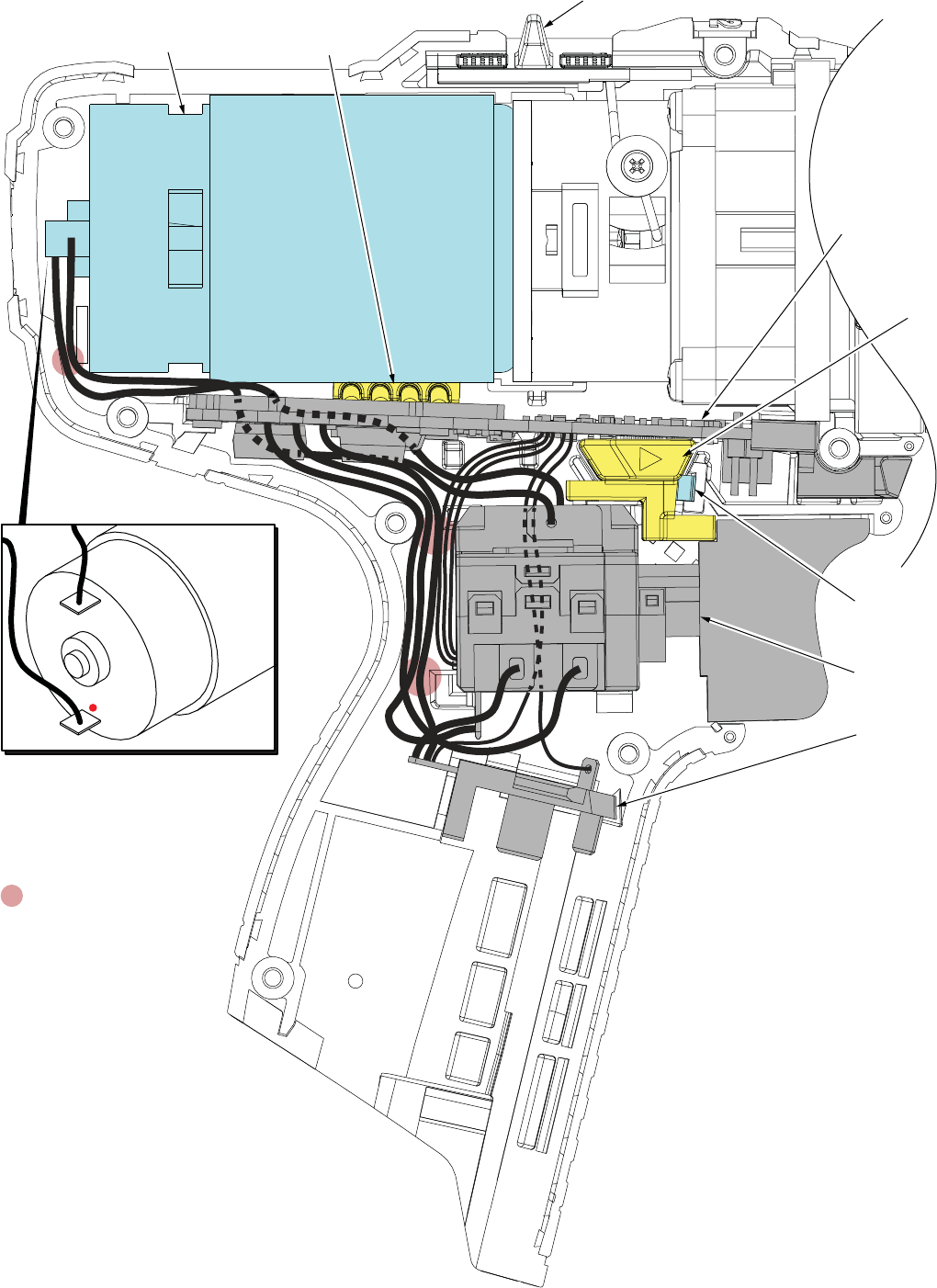

AS AN AID TO REASSEMBLY, TAKE NOTICE OF WIRE ROUTING AND
POSITION IN WIRE GUIDES AND TRAPS WHILE DISMANTLING TOOL
= WIRE TRAPS
or GUIDES
MOTOR
PRINTED
CIRCUIT BOARD
ASSEMBLY (PCBA)
LIGHT
PIPE
FORWARD/
REVERSE
SHUTTLE
SHUTTLE
SPRING
ON/OFF SWITCH
BATTERY
CONTACT PLATE
SPEED SELECTOR SLIDE BUTTON
Prior to reinstalling the right handle halve onto tool,
be sure that all wires are pushed down firmly into
traps of the left handle halve. Make sure that all of
the Switch/Electronics components are seated
squarely in the handle recesses and that the shuttle
and shuttle spring are positioned properly.
Carefully place the right handle halve over the left
handle halve and press together, making sure that
there is free movement of the trigger of the on-off
switch, the forward/reverse shuttle and the speed
selector slide button.
MOTOR
(Back View)
BLACK
RED
Place the motor in the left handle halve
with the positive terminal (marked with a
red dot) to the bottom.
