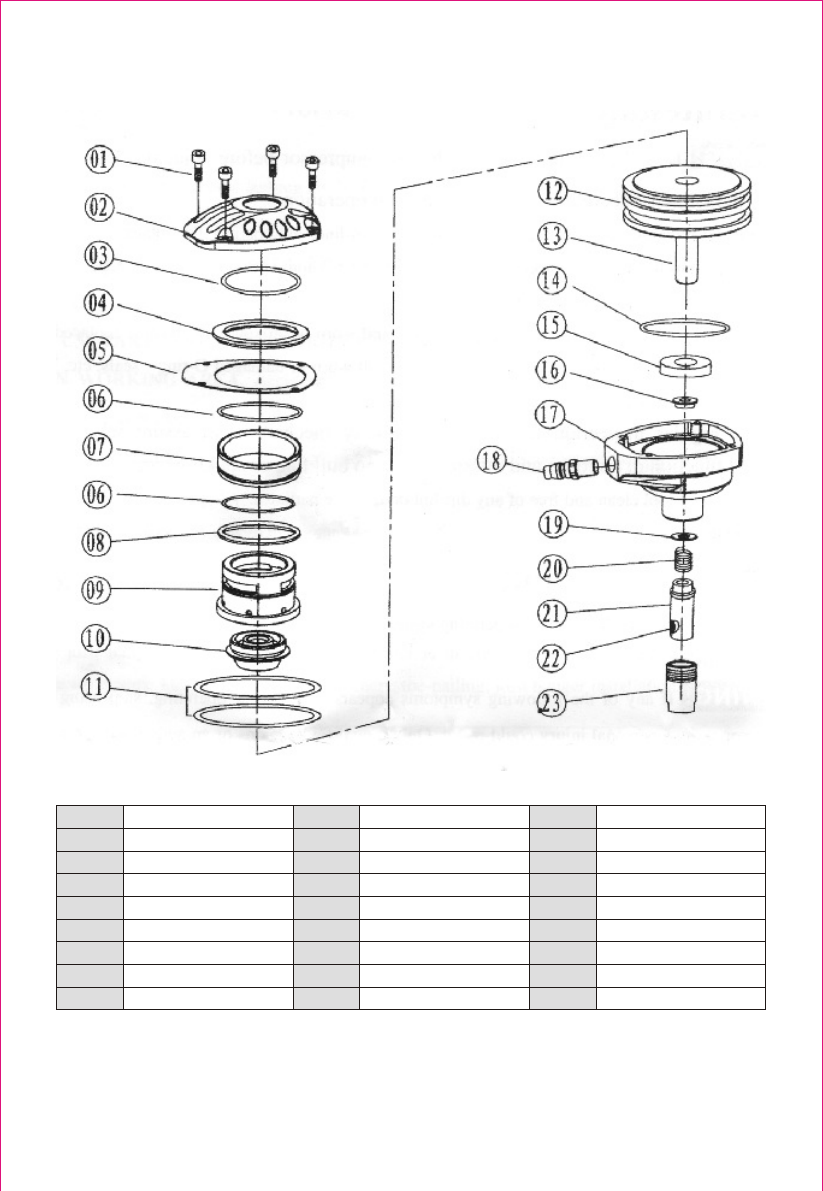

PARTS DIAGRAM
No.
1
2
3
4
5
6
7
8
Description
Bolt M5x20
Cylinder Cover
O-ring 53.5x2.6
Washer
Sealing Washer
O-ring
Slip Set
Sealing Ring
No.
9
10
11
12
13
14
15
16
Description
Cylinder
Cylinder Cover
O-ring 43x2.65
Piston
Ram Pin
O-ring 61.4x2.6
Bumper
Axle sleeve
No.
17
18
19
20
21
22
23
Description
Gun Body
Air Inlet Plug
Washer
Spring
Fix Set
Magnet
Bolt
