OPERATION
DRY-FIRE LOCKOUT
When the magazine is almost empty of nails, the dry-fire
lockout feature will not allow continued operation.
To resume operation, reload the tool with nails.
SETTING THE AIR PRESSURE
The amount of air pressure required will depend on the size
of the nail and the workpiece material.
Begin testing the depth of drive by driving a test nail into the
same type of workpiece material used for the actual job.
Drive a test nail with the air pressure set at 90-95 psi. Raise
or lower the air pressure to find the lowest setting that will
perform the job with consistent results.
It may be possible to achieve the desired depth with air
pressure adjustments alone. If finer adjustments are needed,
use the drive depth adjustment on the tool.
DRIVE DEPTH ADJUSTMENT
See Figure 10.
The driving depth of the nail may be adjusted. It is advisable
to test the depth on a scrap workpiece to determine the
required depth for the application.
To determine depth of drive, first adjust the air pressure and
drive a test nail. To achieve the desired depth, use the drive
depth adjustment on the tool.
n Disconnect the tool from the air supply.
n Turn the depth selector left or right to change the driving
depth.
n Reconnect the tool to the air supply.
n Drive a test nail after each adjustment until the desired
depth is set.

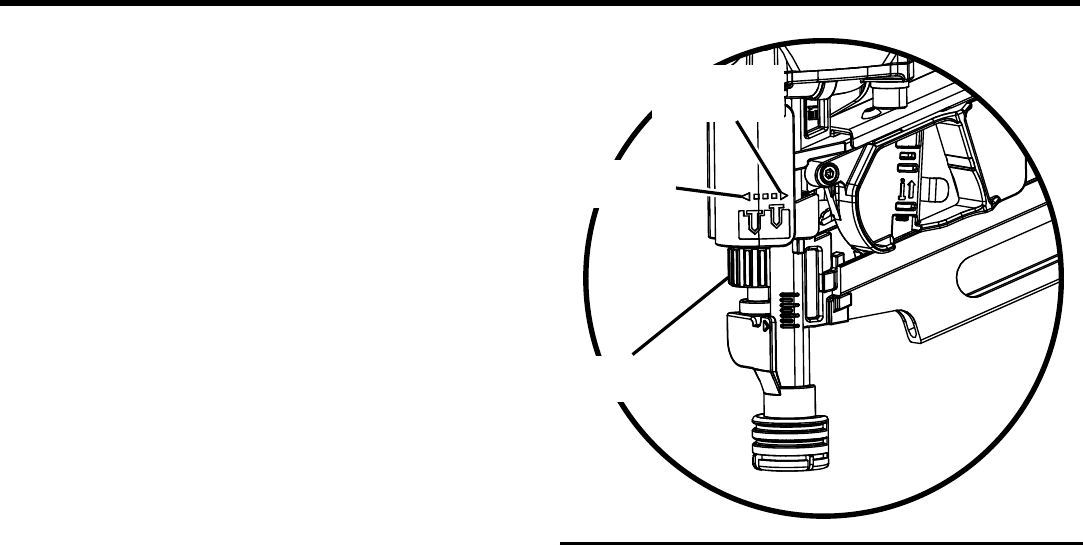

Fig. 10
DRIVE DEPTH
ADJUSTMENT
TO INCREASE
DEPTH
TO DECREASE
DEPTH
