Notice to Our European Union Customers
For product recycling instructions and more information,
please go to: www
.trimble.com/environment/summary.html
Recycling in Europe
To recycle Trimble WEEE, call: +31 497 53 2430, and ask for the “WEEE
associate,” or
mail a request for recycling instructions to:
Trimble Europe BV
c/o Menlo Worldwide Logistics
Meerheide 45
5521 DZ Eersel, NL
© 2012, Trimble Navigation Limited. All rights reserved.
Reorder PN 1213-1320 Rev A (08/12)
North-Latin America
Trimble / Spectra Precision Division
8261 State Route 235
Dayton, Ohio 45424-6383
U.S.A.
(888) 527-3771
(Toll Free in U.S.A.)
+1-937-203-4419 Phone
+1-937-482-0030 Fax
www.trimble.com/spectra
Europe
TrimbleKaiserslauternGmbH
Am Sportplatz 5
67661 Kaiserslautern
GERMANY
Tel +49-(0)6301-71 14 14
Fax +49-06301-32213
Africa & Middle East
Trimble Export Middle-East
P.O. Box 17760
JAFZ View, Dubai
UAE
+971-4-881-3005 Phone
+971-4-881-3007 Fax
Asia-Pacific
TrimbleNavigationSingaporePTELtd.
80 Marine Parade Road, #22-06
Parkway Parade
Singapore, 449269
+65 6348 2212 Phone
+65 6348 2232 Fax
China
Trimble Beijing
Room 2805-07, Tengda Plaza,
No. 168 Xiwai Street
Haidian District
Beijing, China 100044
+86 10 8857 7575 Phone
+86 10 8857 7161 Fax
www.trimble.com.cn
Service Request
To locate your local dealer or authorized Trimble Service Center outside
the U.S.A. for service, accessories, or spare parts, contact one of our
offices listed below.
General Care, Safety And Storage
General safety rules
a) Check the condition of the tool before use.
b) The user must check the accuracy of the tool after it has been
dropped or subjected to other mechanical stresses.
c) Although the tool is designed for the tough conditions of jobsite use,
as with other measuring instruments it should be treated with care.
Do not use prisms or mirrored surfaces
Distances can be measured from all stationary targets without a highly
reflective surface, i.e. concrete, stone, wood, plastic, paper, etc. The use
of prisms or other highly reflective targets is not permissible and, if
attempted, may falsify the results.
Calibration Check
It is recommended to occasionally check the calibration of the tool.
1) Select a known measure distance about 1 to 5 meters (3 to 15 ft) that
does not change over time.
2.) Measure the distance 10 times. Calculate the mean deviation from
the actual distance. The measured mean deviation should be less than
the typical accuracy tolerance of
± 1.5 mm (± 1/16 in)
Cleaning and drying
1. Blow dust off the lens.
2. Do not touch the lens with the fingers.
3. Use only a clean, soft cloth for cleaning. If necessary, moisten the
cloth slightly with pure alcohol or a little water.
NOTE
Do not use any other liquids as these may damage the plastic
components.
Storage
The temperature limits for storage of your equipment must be observed,
especially in winter / summer.
Remove the tool from its pouch if it has become wet. The tool, its
carrying case and accessories should be cleaned and dried (at maximum
40°C). Repack the equipment only once it is completely dry. Check the
accuracy of the equipment before it is used after a long period of storage
or transportation.
Transport
Use the original packaging or packaging of equivalent quality for
transporting or shipping your equipment.
CAUTION
Always remove the batteries before shipping the tool.
Warranty
Trimble warrants the Quick Measure QM55 to be free of defects in
material and workmanship for a period of 3 years. For the first 2 years,
Trimble or its authorized Dealer or Service Center will repair or replace,
at its option, any defective part, or the entire product, for which notice
has been given during the warranty period. For the 3rd year, an
exchange fee may apply. This warranty period is in effect from the date
the system is delivered by Trimble or its authorized Dealer to the
purchaser, or is put into service by a Dealer as a demonstrator or rental
component.
Any evidence of negligent or abnormal use, or any attempt to repair
equipment by other than factory-authorized personnel or Trimble
certified or recommended parts, automatically voids the warranty.
The foregoing states the entire liability of Trimble regarding the
purchase and use of its equipment. Trimble will not be held responsible
for any consequential loss or damage of any kind.
This warranty is in lieu of all other warranties, except as set forth above,
including an implied warranty. Merchantability of fitness for a
particular purpose is hereby disclaimed.
Customers should send products to the nearest authorized Factory,
Dealer or Service Center for warranty repairs, freight prepaid. In
countries with Trimble Service Subsidiary Centers, the repaired products
will be returned to the customer, freight prepaid.
Declarations
We declare, on our sole responsibility, that this product complies with
the following directives and standards:
EN 50081-1, EN 61000-6-2, 2004/108/EC.
Designation:Laserrangemeter
Type: QM55
Laser Safety
Use of this product by people other than those trained on this product
may result in exposure to hazardous laser light.
•Donotremovewarninglabelsfromtheunit.
•TheQM55isaClass2M(635nm)laserproduct.
•Neverlookintothelaserbeamordirectittotheeyesofotherpeople.
•Alwaysoperatetheunitinawaythatpreventsthebeamfromgetting
into people‘s eyes.
Specifications
Measuring Range 0.5 m to 50 m (1.6 to 165 ft)
Accuracy ± 1.5 mm typical (± 1/16 in)
Functions Measure, Continuous measure, Area, Volume,
Pythagorean, Add/Subtract, Stake out, memory
50 measures
Measure reference Front, Center, Rear, Rear with Extension
Automatic shut o Laser-0.5minutes
Product - 3 minutes
Battery life (alkaline) 5000+ measures
Operating temperature -10⁰C to +50⁰C (14⁰F to 122⁰F)
Storage temperature -20⁰C to +65⁰C (-4⁰F to 149⁰F)
Power supply 2 x AAA x 1.5V
Power indication LCD3segments-100%,50%,0%
LaserSafety Class II as per EN 60825-1:2007;
IEC 60825-1:2007 CFR 21 § 1040 (FDA)
LaserType/Power 635 nm visible red / 0.95 mW max
Dimensions 52 x 28 x 125 mm (2.0 x 1.1 x 4.9 in)
Weight 180 g (6.35 oz) without batteries
Dust & Water resistance IP54
Drop Performance 1.5 m (5 ft)

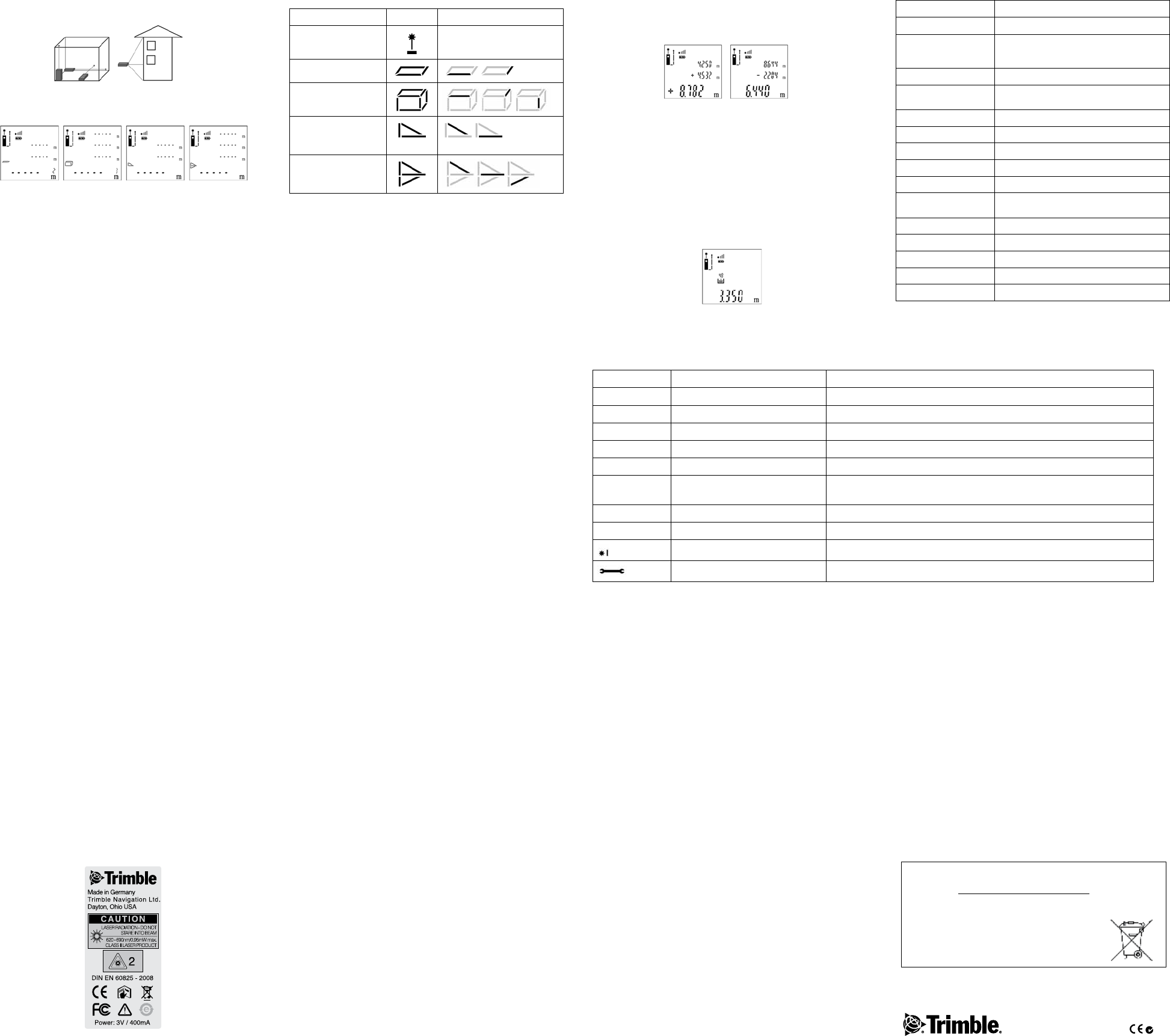

FUNCTIONS - Area, Volume, Indirect Measure
(Pythagorean Theorem)
1) Press the FUNC button and cycle through the symbols until you
arrive at the desired function as shown in this figure.
Area Volume Indirect Double Indirect
2) Press the ON button to activate the laser and take first measure
3) Press the ON button to activate the laser and take second measure
4) Press the ON button to activate the laser and take third measure (if
required)
The display will indicate which measure is being taken as per the
following chart.
The result will be displayed along with the individual measures.
NOTE: The indirect and indirect double measurements are based
upon the Pythagorean principle which requires a right angle (90⁰) for
accuracy. The indirect measure estimate is less accurate if the
measurements do not form a right angle.
Addition and Subtraction
+ The next measure is added to the previous one
- The next measure is subtracted from the previous one
See figure
Storage and Recall of Measurements
The QM55 will automatically store the previous 50 measurements
results.
1) To retrieve these measures: press the clear button (C/OFF)until there
are no measures shown on the screen
2) Press the + button. The Display will appear like the figure.
3) The higher number (up to 50) indicates the most recent
measurement taken.
4) Use the + or – buttons to scroll through the measurements.
Trouble Shooting
Message Code Possible cause Remedy
101 Battery too low Change batteries
104 Calculation error Repeat procedure
152 Temperature too high Allow the unit to cool down
153 Temperature too low Allow the unit to warm up
154 Out of range Measure target within distance of 0.5 and 50 m (1 to 165 ft)
155 Received signal too weak Use light color target;
Hold Quick Measure more steady
156 Received signal too strong Use dark colored target
157 Background brightness too high Use dark-colored target
Weak signal Adjust measurement conditions until signal strength is stronger
Hardware error Switch unit on/off several time. If this symbol remains, contact your dealer
Measurement Function Icons Measurement Sequence
Single Measurement
Area Measurement
Volume Measurement
Height
(Pythagorean Theorem)
Measurement 1
Height
(Pythagorean Theorem)
Measurement 2
FUNCTIONS - Area, Volume, Indirect Measure
 previous
