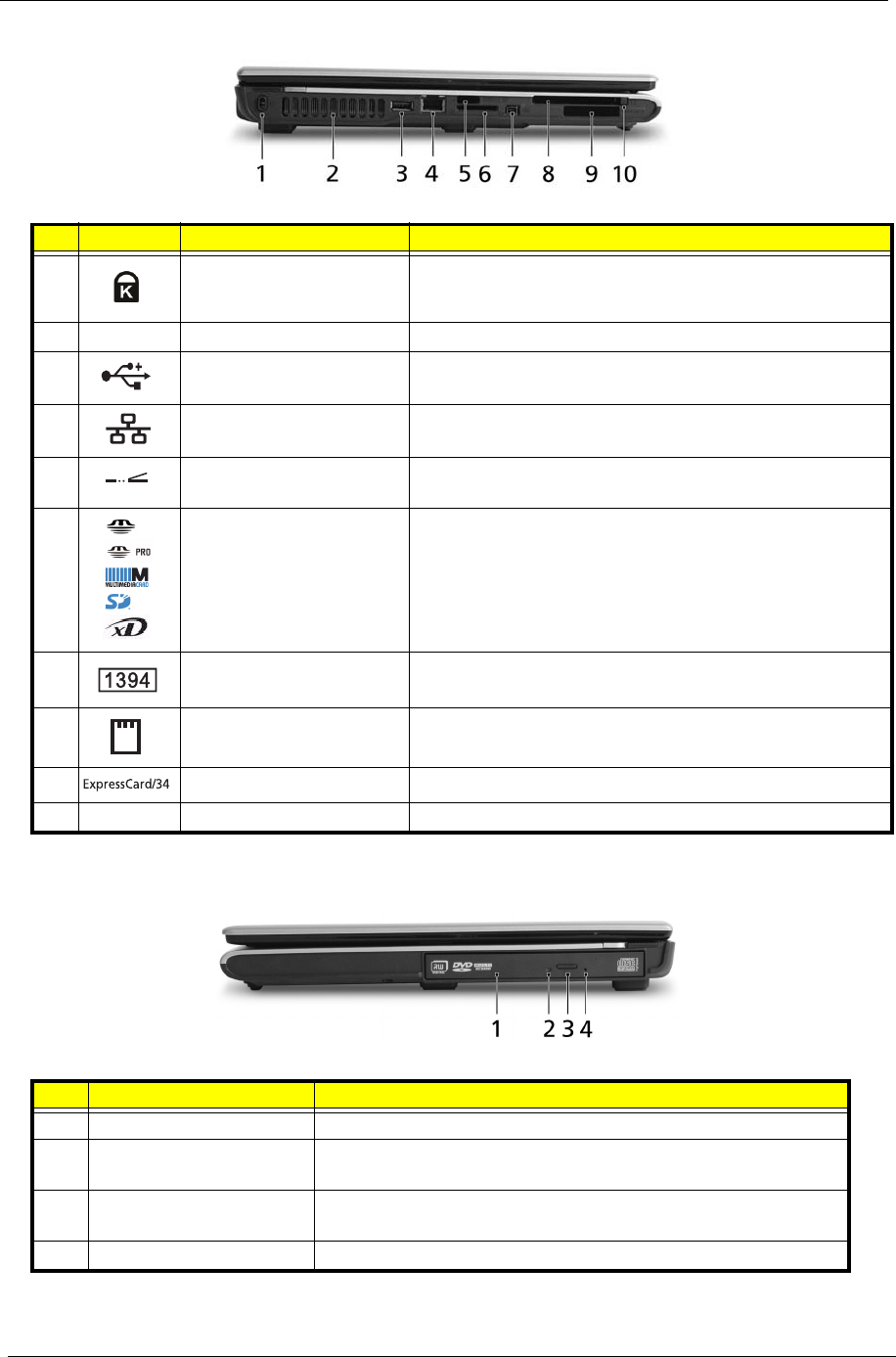

Left View
Right View
# Icon Item Description
1 Kensington lock slot Connects to a Kensington-compatible computers security
lock.
2 N/A Ventilation slots Enable the computer to stay cool, even after prolonged use.
3 Three USB 2.0 ports Connect to USB 2.0 devices (e.g., USB mouse, USB
camera).
4 Ethernet (RJ-45) port Connects to an Ethernet 10/100-based or 10/100/1000-
based networks.
5 Infrared port Interfaces with infrared devices (e.g., infrared printer and IR-
aware computer) (optional).
6 5-in-1 card reader Accepts Memory Stick (MS), Memory Stick Pro (MS PRO),
MultiMediaCard (MMC), Secure Digital (SD) and xD-Picture
Card (xD) (optional).
7 4-pin IEEE 1394 port Connects to IEEE 1394 devices (optional).
8 PC Card slot Accepts one Type II PC Card.
9 ExpressCard/34 slot Accepts one ExpressCard/34 module (optional).
10 N/A PC Card slot eject button Ejects the PC Card from the slot.
# Item Description
1 Optical disk drive Internal optical drive; accepts CDs or DVDs.
2 Optical disk access
indicator
Lights up when the optical disk drive is active.
3 Optical disk drive eject
button
Ejects the drive tray from the drive.
4 Emergency eject hole Ejects the drive tray when the computer is turned off.
