PowerBook G4 (12-inch) Take Apart - 75
Inner Frame: PowerBook G4 (12-inch DVI)

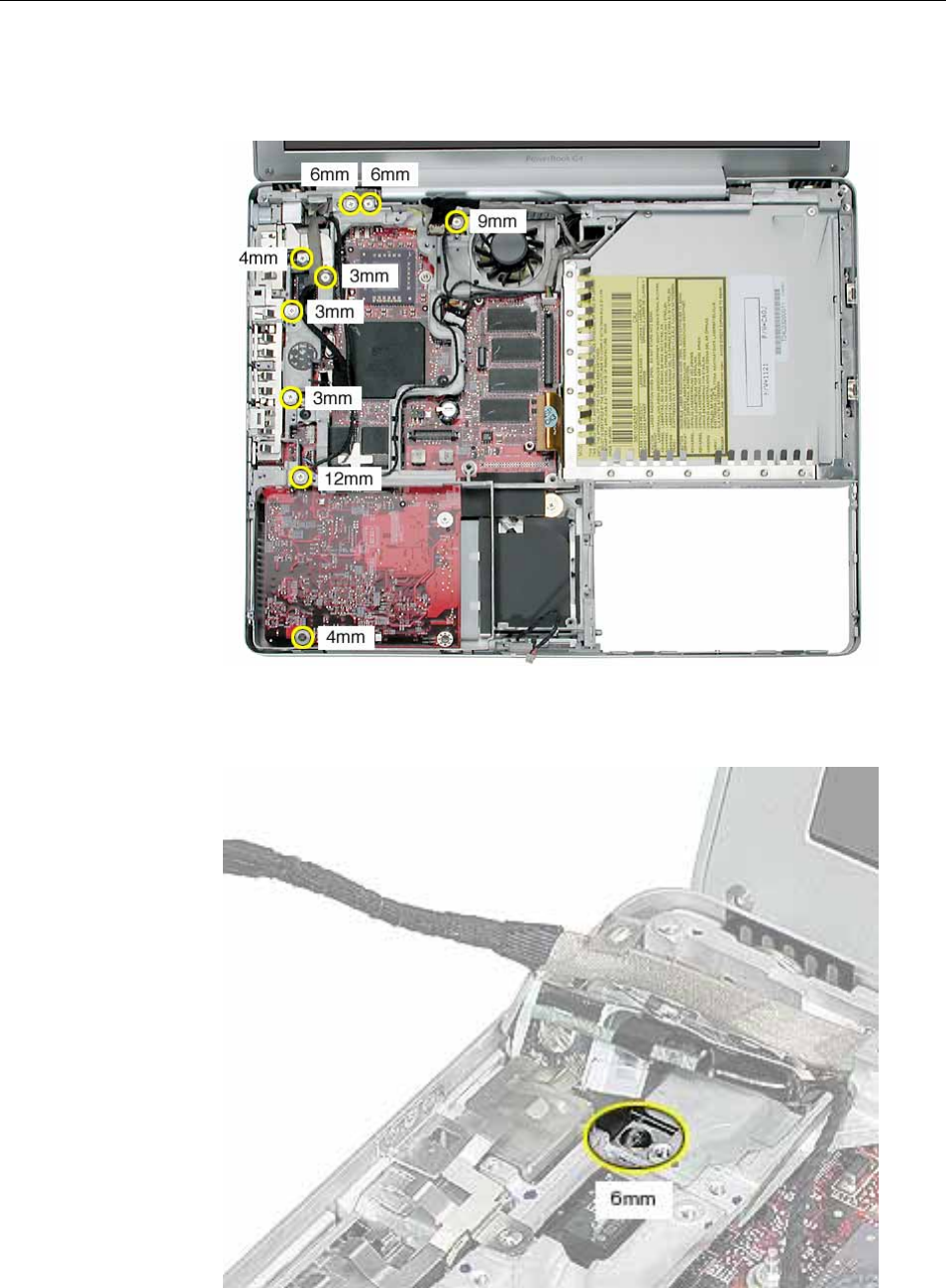

7. Peel up any remaining tape, and remove the screws from the frame and I/O port
shield.
8. Tilt up the RJ11 modem cable board and remove the 6-mm long screw (normally
hidden by the RJ11 board).
